Product Model

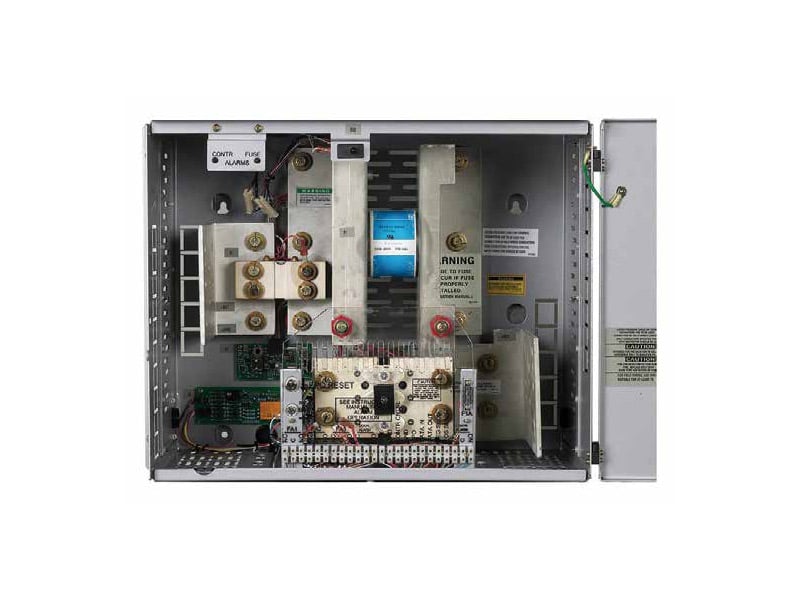

Lorain BD2000 Battery Disconnect

Get Manual
Best Suited For:
  • Data Center/Colocation/Hosting
  • Telecom

Benefits

Small footprint and multiple wiring attachment points allow for ease of installation A removable door permits easy wiring access during installation and maintenance Restricted access for secure operation Allows DC system to pass local codes as applicable

Features

Local and remote operation of disconnect Current monitoring Lock Out-Tag Out (LO/TO) attachment point and a door latch Alarm options include a Form C, FA alarm, contactor status alarm and a door open alarm Two LED indicators provide a visual display of the status of the fuse and contactor

Email
Lorain BD2000 Battery Disconnect
Input
Equipment Dimensions (H x W x D)
17.5" x 23" x 11.6"
Access
Front for installation, operation and maintenance
Output
Output Capacity
2000 A
Physical Characteristics
Battery Circuit Breakers / Fuses
1000 to 2000 A TPB Fuse
Options
Remote Disconnect, Emergency Power Off
Weight
40.9 kg
Height
431.8 mm
Width
584.2 mm mounting
Depth
294.6 mm
Environmetal & Standard Compliance
Control and Monitoring
Battery current signal, Disconnect alarm
Operating Temperature
-40 °C to +40 °C (-40 °F to +104 °F)
Safety Compliance
UL 1801 Listed (“c UL”)
