Product Model

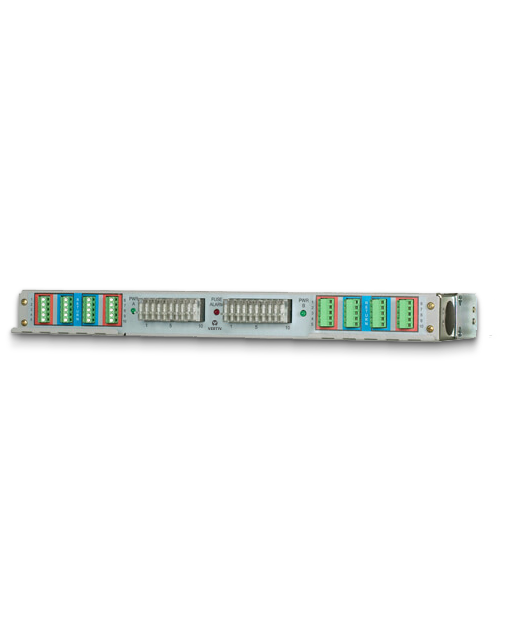

DC Distribution Panel

The NetSure DC Distribution panel provides twenty bullet positions for secondary over-current protection.

Get Brochure Get Manual
Best Suited For:
  • Data Center/Colocation/Hosting
  • Telecom

Benefits

Flexible mo​​unting allows for multiple location options
Meets code requirements
Pluggable distribution devices provide for easy installation and removal

Features

Relay rack or wall mounting
Compact panel with front access and top feed fits in 23" relay rack with 6U height
Field wiring provisions and 2-hole lug terminations
Bullet-nose style breakers and fuses
Isolated Form-C alarm output
Return bar included​

Email
DC Distribution Panel
Product Overview
Current Capacity
600 A
Output Voltage, Nominal
-48 or +24 VDC
Input Voltage, Nominal
-48 or +24 VDC
System Type
Accessory
Input
Input Voltage, Nominal
-48 or +24 VDC
Equipment Dimensions (H x W x D)
10.4" x 23" x 6.5"
Access
Front for installation, operation and maintenance
Output
Output Voltage, Nominal
-48 or +24 VDC
Output Capacity
600 A
Load Circuit Breakers / Fuses
(20) Bullet Positions
Physical Characteristics
Weight
14.5 kg
Height
264.2 mm
Width
584.2 mm mounting
Depth
165.1 mm
Environmetal & Standard Compliance
Control and Monitoring
Form-C alarm output
Operating Temperature
-40 °C to +40 °C (-40 °F to +104 °F)
