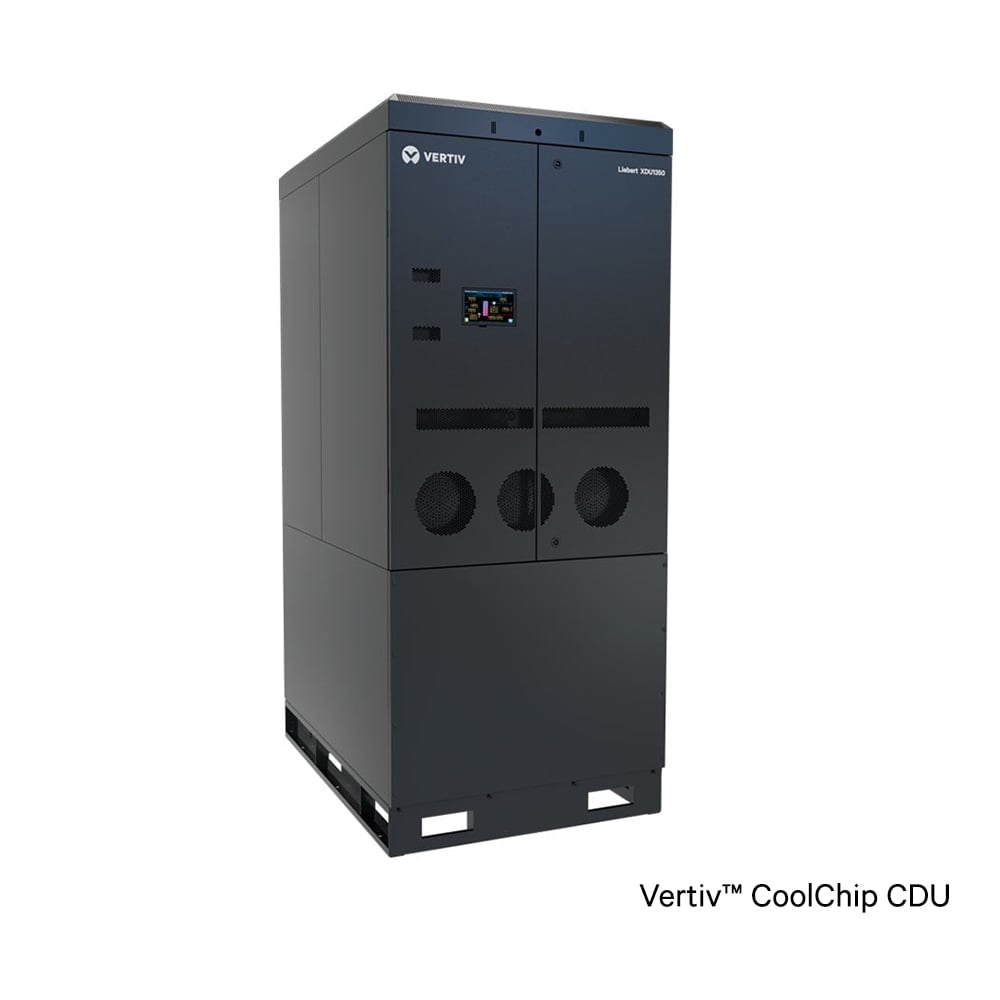

Liebert® XDU1350 Coolant Distribution Unit
Designed to support liquid cooling within high density environments, the Liebert® XDU1350 Coolant Distribution Unit is suitable for chip & rear door cooling applications to offer easy, cost-effective deployment in any data center. The Liebert® XDU1350 utilizes a liquid-to-liquid heat exchange design, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities while maintaining optimal system conditions.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale

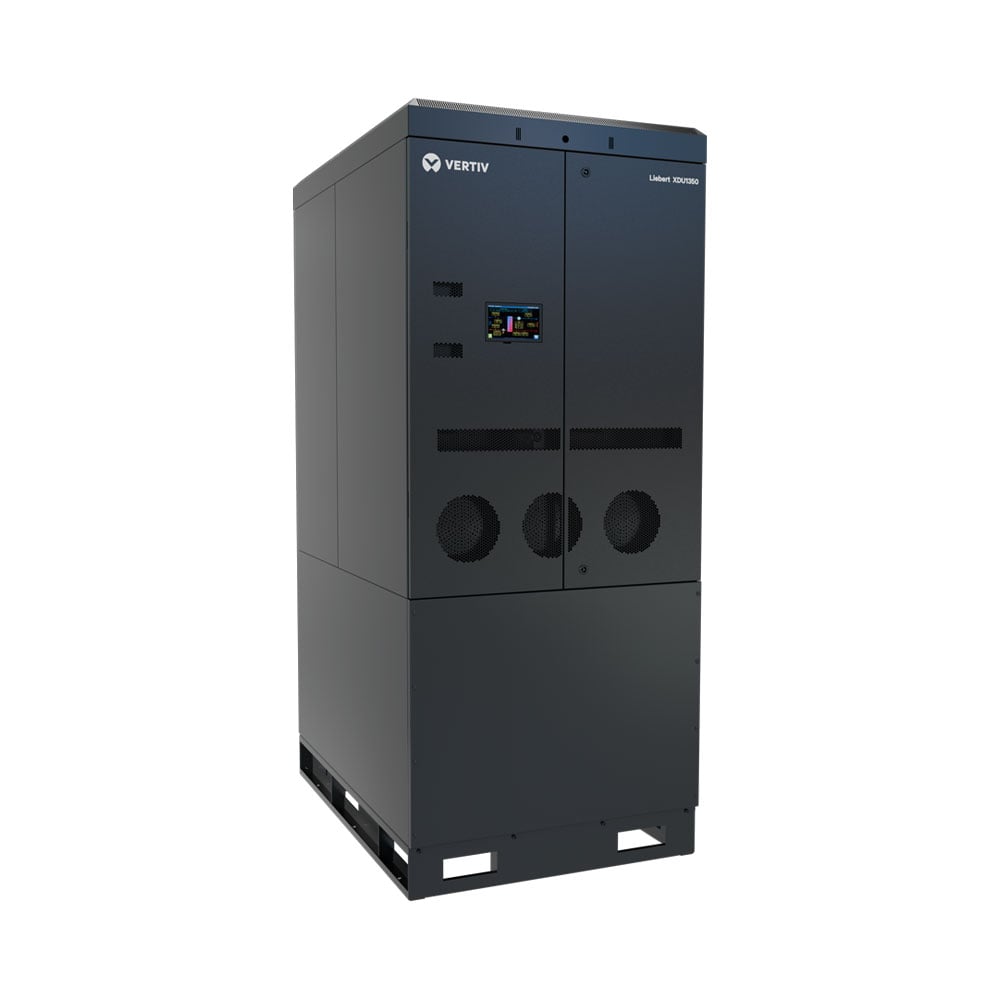

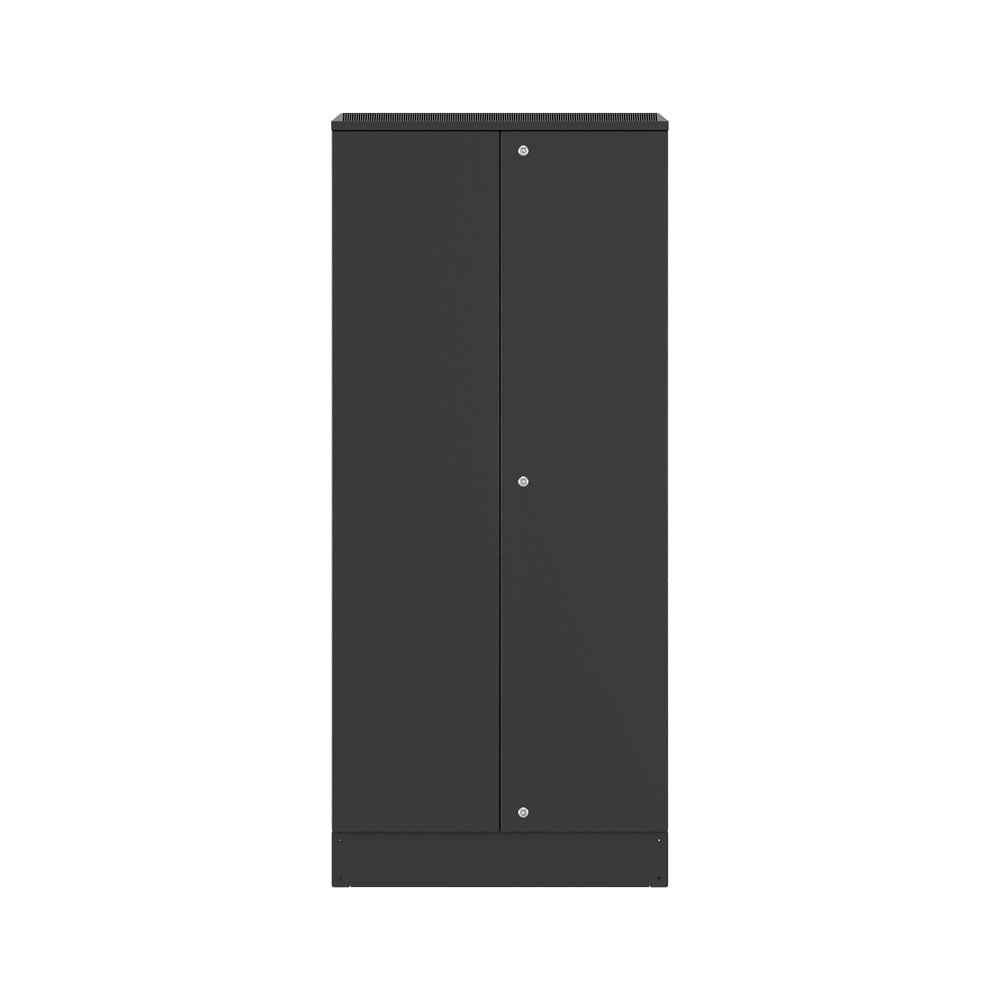

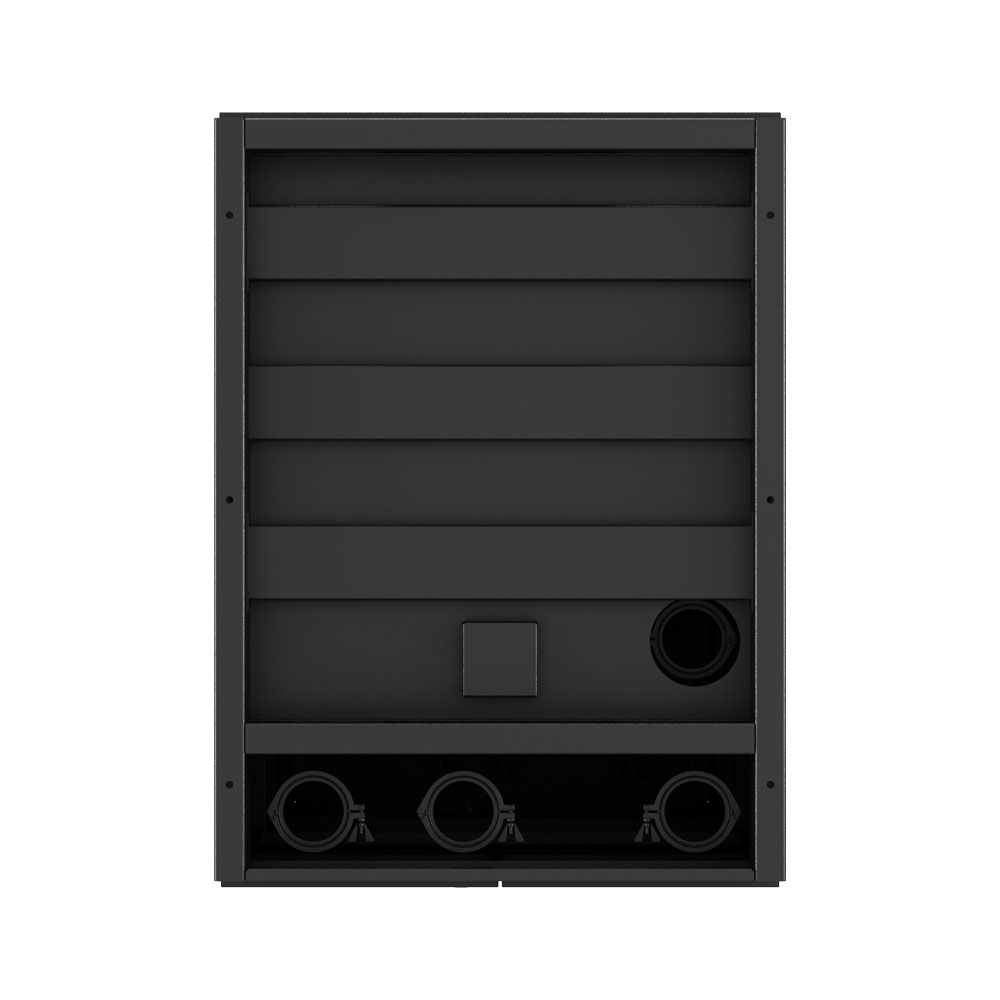

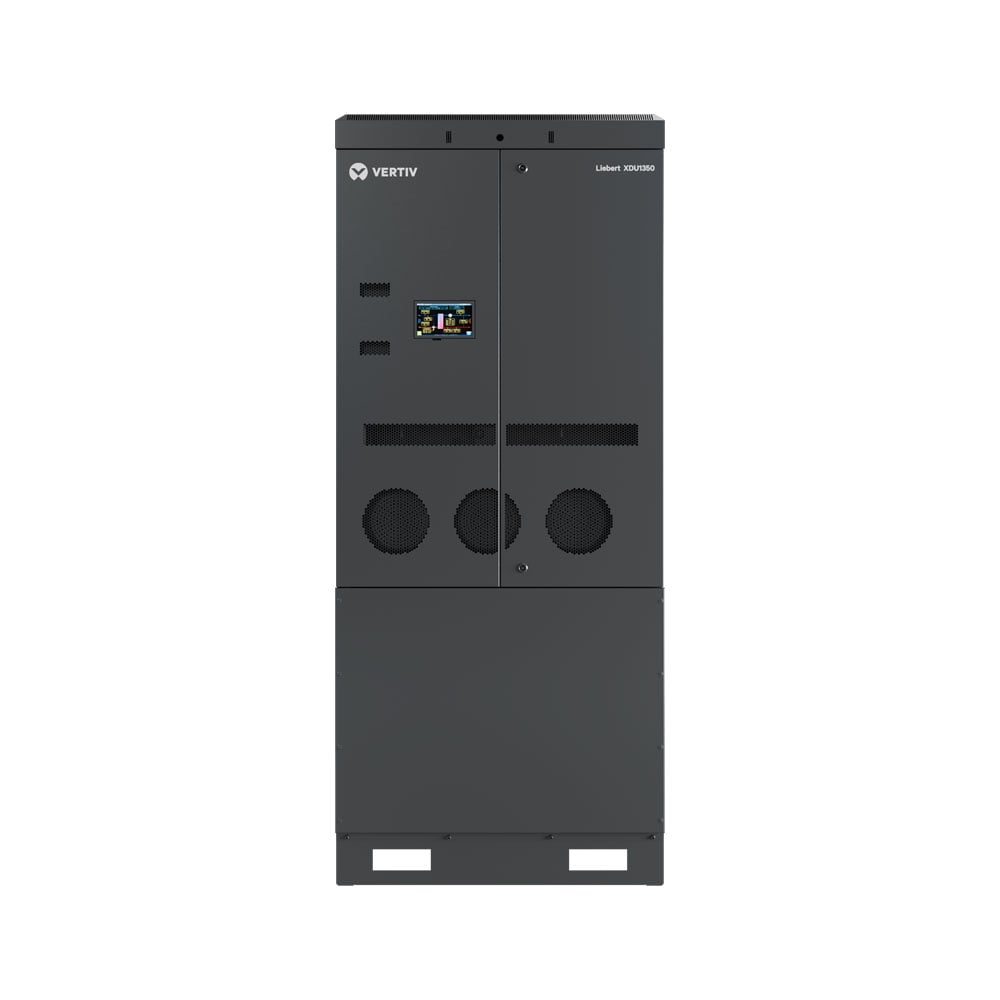

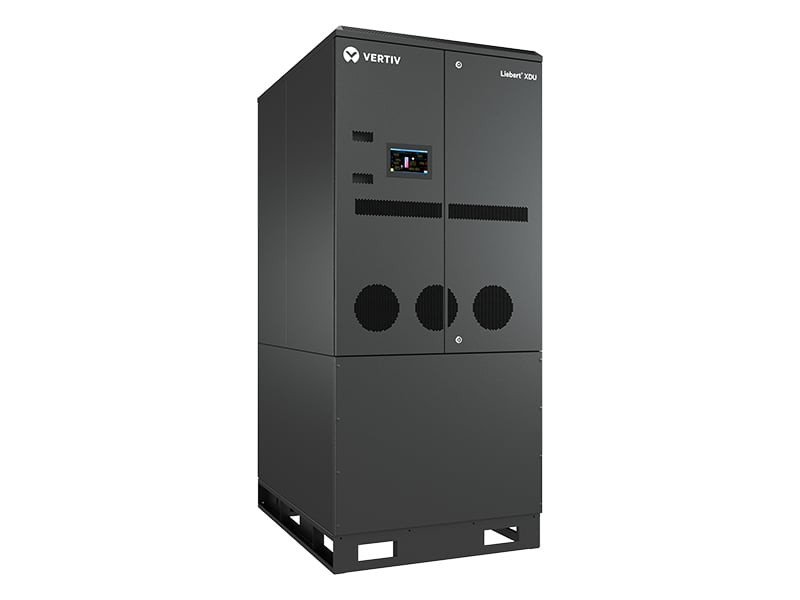

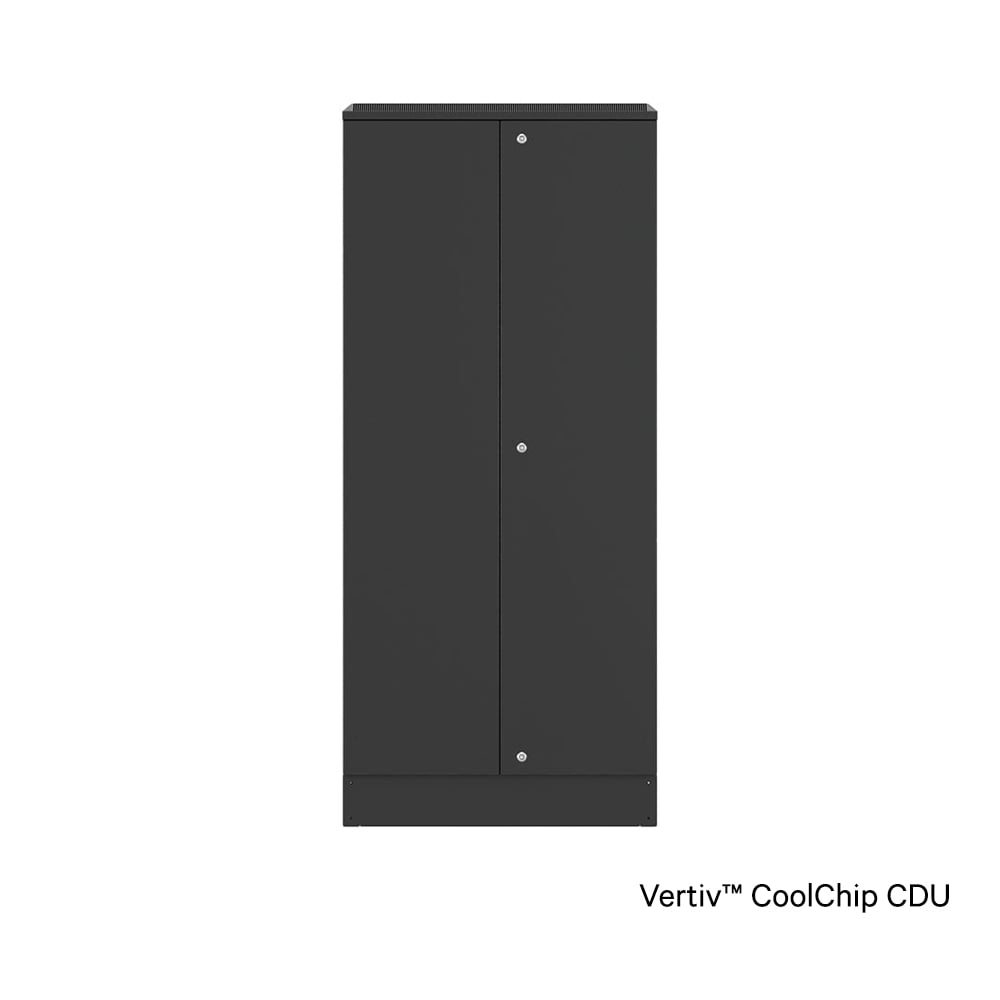

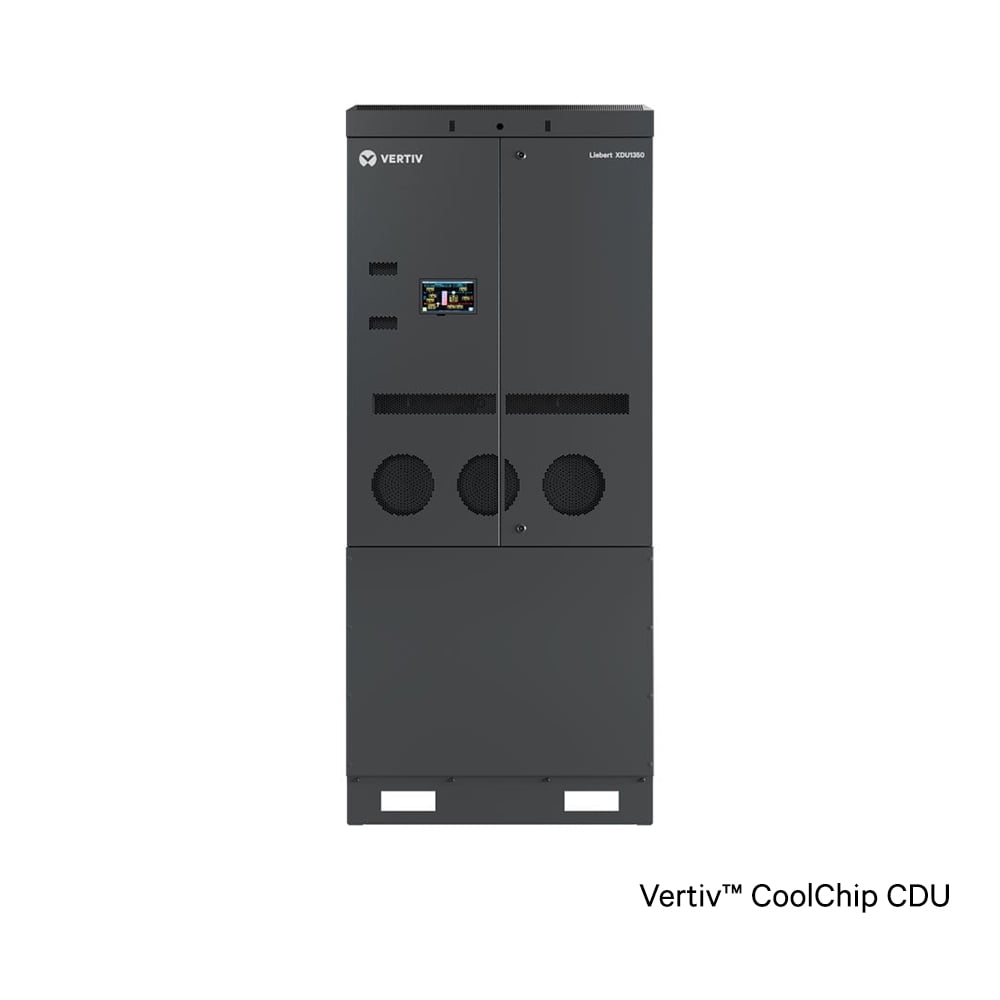

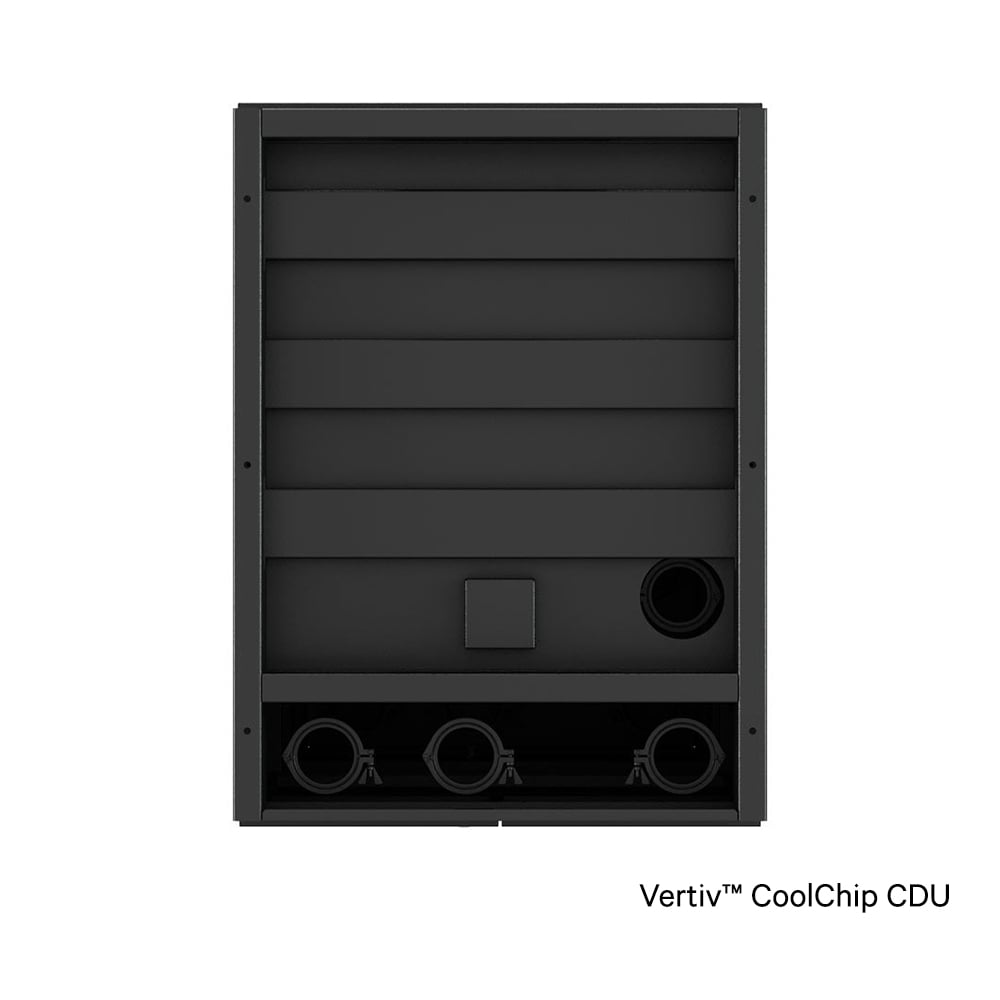

Liebert® XDU1350 Coolant Distribution Unit
Designed to support liquid cooling within high density environments, the Liebert® XDU1350 Coolant Distribution Unit is suitable for chip & rear door cooling applications to offer easy, cost-effective deployment in any data center. The Liebert® XDU1350 utilizes a liquid-to-liquid heat exchange design, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities while maintaining optimal system conditions.
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale
Benefits
Features
Specifications
As data centers adopt liquid cooling, fitting in new cooling distribution infrastructure can be a real challenge. From hyperscale and colocation environments to edge applications, the Vertiv™ XDU simplifies your work with the flexibility to support rear door heat exchangers or direct contact liquid cooling. The Vertiv XDU’s compact footprint allows for end of row or perimeter placement. However, and wherever you incorporate the Vertiv XDU, you can easily distribute coolant to efficiently manage power-dense hot spots liquid to liquid up to 450 kW or 1,368 KW. Compact footprint for deployment flexibility within the row or perimeter; Efficient Cooling Distribution to manage power-dense hot spots and up to 450 kW or 1,368 kW; Precise Temperature Control to eliminate thermal shock for server CPU and GPUs; Redundant Pumps and Dual Power Feeds for optimizing reliable operation; Remote Monitoring available through communications with HTTP, SNMP, RS-485 Modbus, Modbus IP.
- Product Specifications
- Net Sensible Nominal Capacity kBtuh[kW]*
- 1368 kW at 7.2 F (4 C): Secondary Circuit flow rate at 320 GPM (1200 l/m) at 35.4 psi ( 2.44 bar) external ΔP
- Input Voltage (V/Phase/Frequency Hz)
- 480 V ,3PH, 60Hz
- Controls and Monitoring
- Color touch screen display
- Key Components
- Redundant pump design with variable-speed pump controls
- Physical Characteristics
- Weight
- 1431 lbs
- Weight
- 1509 kgs
- Height
- 684 in
- Height
- 2070 mm
- Width
- 35.4 in
- Width
- 900 mm
- Depth
- 48.9 in
- Depth
- 1242 mm
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit Application and Planning Guide XDU1350B SL-71309
- Liebert® XDU1350 Coolant Distribution Unit Operation and Maintenance Manual (SL-70619)
- 70625 XDU1350 Installation and Commissioning Guide Rev C_07-22 Final (locked)
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit Operation and Maintenance Manual XDU1350B SL-71310.pdf
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
