Product Model

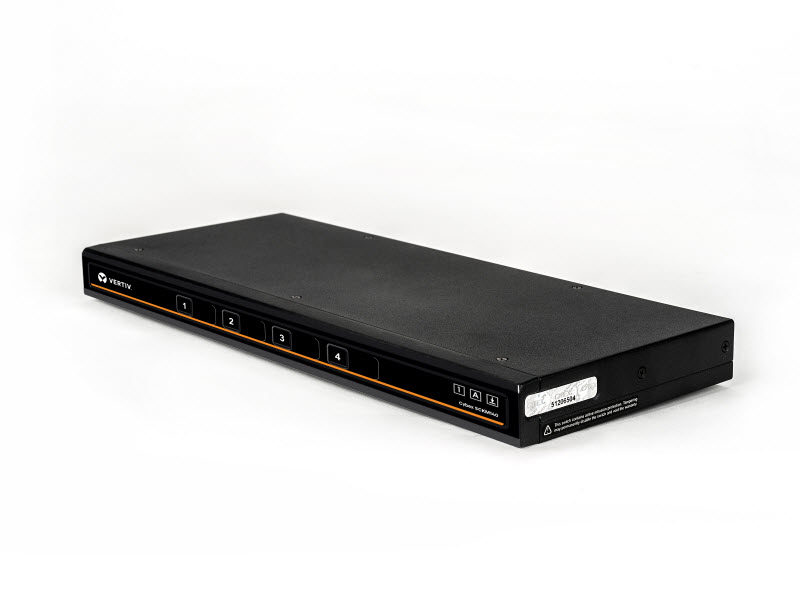

Cybex SCKM140 Secure Desktop KM

The Cybex SCKM140 secure desktop KM is designed to meet the stringent specifications of the U.S. government and certified to the NIAP / Common Criteria Protection Profile for Peripheral Sharing Switch version 3.0.

Find Sales Contact Get Brochure Get Manual

Download Firmware

Best Suited For:

Banking, Financial and Insurance
Government

Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Product Model

Cybex SCKM140 Secure Desktop KM

Find Sales Contact Get Brochure Get Manual

Download Firmware

Best Suited For:

Banking, Financial and Insurance
Government

Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Benefits

Outstanding Security: Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Common Criteria Protection Profile for Peripheral Sharing Switch, version 3.0.

Enhanced Usability: Cursor Navigation Switching allows the user to switch control between systems by simply moving the cursor from one display to another

Access: Access up to four computers or networks using a single keyboard and mouse

Zero Delay Switching: Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources

Independent USB Switching: Easily switch USB (SCKM145 only) peripherals independently of keyboard and mouse

Features

Cursor navigation switching lets users switch control between systems by simply moving the mouse cursor from one display monitor to another. Both audio and keyboard follow the cursor from one computer to the next.

Instant mouse and keyboard switching via emulation assures zero delay when switching between systems.

Independent audio and USB switching gives users the ability to freeze audio and USB devices to a specific channel so these feeds are maintained as the cursor switches between system monitors.

Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.

High-speed mobile device charging port provides a quick way to charge mobile phones and other devices.

Pre-set display configurations are easily modified for specific environments with a user-friendly administrator tool, enabling flexible assignment of USB devices for each user.

Print Download Email

Cybex SCKM140 Secure Desktop KM

Power Description

Power Supply(s): Internal

Input Power (Maximum): 35W (120V)

Operational Conditions

Operating Temperature: 32° to 104° F (0° to 40° C)

Humidity: 0-80% RH, non-condensing

Storage Temperature: -4° to 140° F (-20° to 60° C)

Physical Characteristics

Weight: 3 lbs

Weight: 1.4 kgs

Height: 1 in

Height: 25.4 mm

Width: 13.7 in

Width: 348 mm

Depth: 5 in

Depth: 127 mm

Miscellaneous

Agency Approvals: CE, RCM, FCC class B, VCCI, TUV US, TUV Canada

Manuals

Brochures and Data Sheets

Software

Software Downloads

Warranties

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
