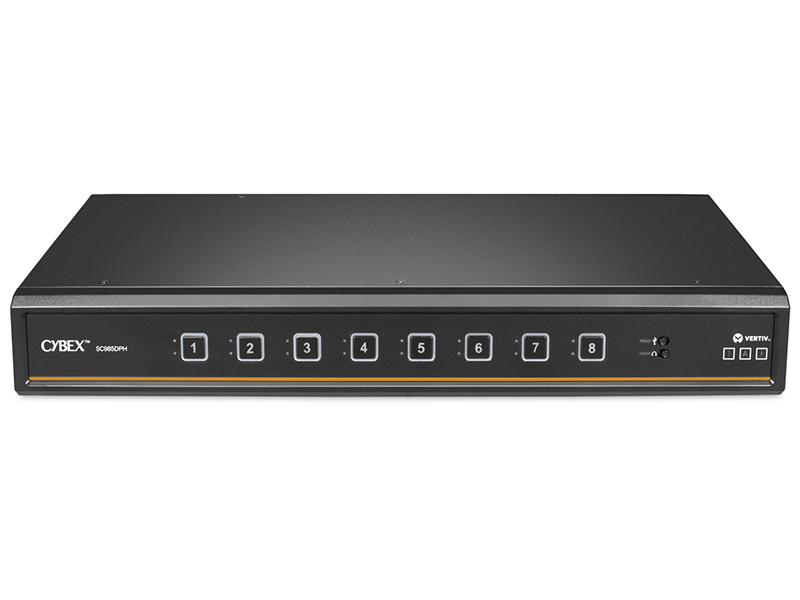

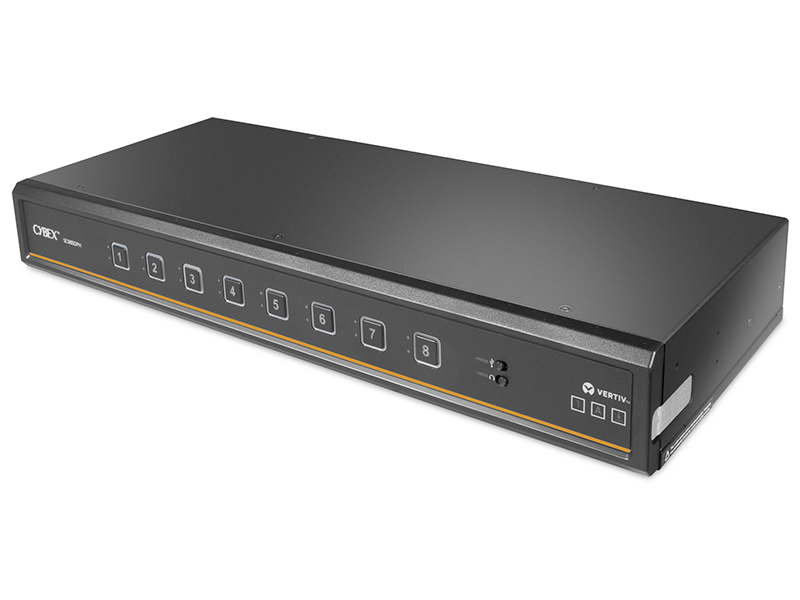

Cybex SC 985 Secure Desktop KVM
The Cybex™ SC985 secure desktop KVM is designed to meet the stringent specifications of the U.S. government and certified to the NIAP / Common Criteria Protection Profile for Peripheral Sharing Switch version 3.0.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Broadcast and Entertainment
Cybex SC 985 Secure Desktop KVM
The Cybex™ SC985 secure desktop KVM is designed to meet the stringent specifications of the U.S. government and certified to the NIAP / Common Criteria Protection Profile for Peripheral Sharing Switch version 3.0.
- Broadcast and Entertainment
Benefits
Features
Specifications
The Cybex™ SC900 secure desktop KVM switching portfolio offers a proven solution for guarding against cyber intrusion at the desktop. These switches are designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NIAP protection profile for peripheral sharing devices version 3.0. These switches provide users with high resolution compatibility utilizing HDMI and DisplayPort technology as well as traditional DVI technology.
- Product Overview
- Input Ports
- (8) DVI-I, single-link/dual-link
- Video Connection
- Dual Head DVI-I, single-link/dual-link
- Video Resolution
- DVI dual-link - 2560 x 1600 @60Hz
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 45W
- Interfaces/Ports
- USB ports
- (16) USB Type-B, (3) USB Type-A
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140°F (-20° to 60°C)
- Physical Characteristics
- Weight
- 6.8 lbs
- Weight
- 3.1 kgs
- Height
- 2.2 in
- Height
- 56 mm
- Width
- 17.3 in
- Width
- 439 mm
- Depth
- 7.3 in
- Depth
- 185 mm
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
