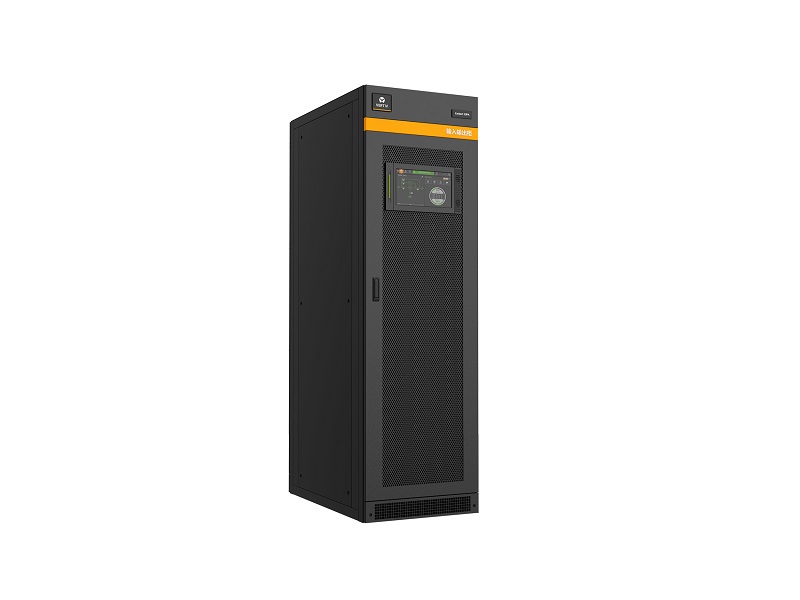

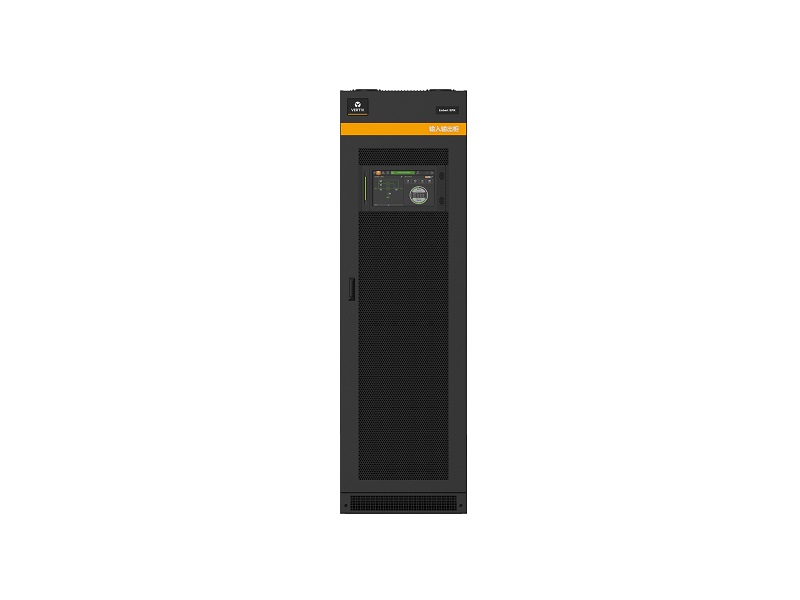

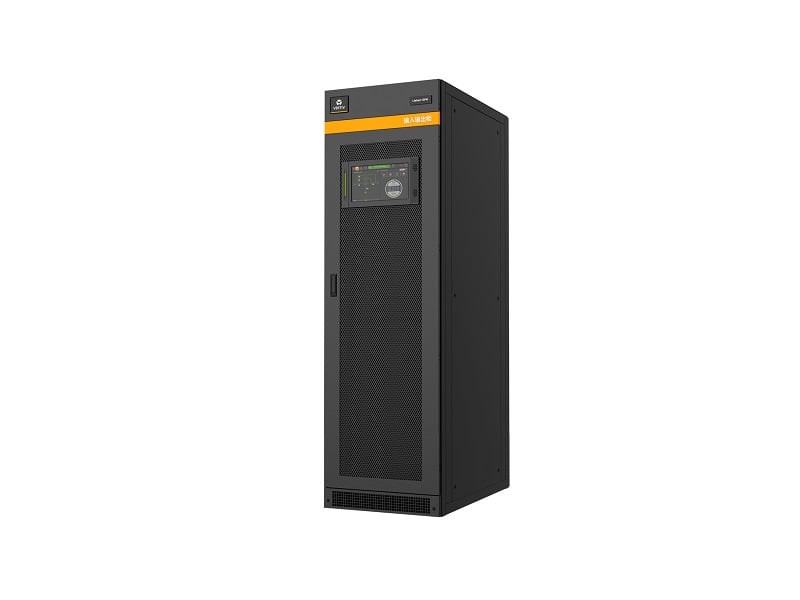

EPK S
EPK S integrated power distribution cabinet adopts the concept of modular unit and has a professional electrical monitoring system. It is mainly applicable to the data room usage scenarios of small and medium-sized UPS above 60KVA and below 200kVA.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
- Chemical/Petrochemical (excl. Oil & Gas)
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Manufacturing
EPK S
EPK S integrated power distribution cabinet adopts the concept of modular unit and has a professional electrical monitoring system. It is mainly applicable to the data room usage scenarios of small and medium-sized UPS above 60KVA and below 200kVA.
- Banking
- Financial and Insurance
- Chemical/Petrochemical (excl. Oil & Gas)
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Manufacturing
Specifications
EPK S is an all-in-one integrated power distribution cabinet with a modular concept. All the internal functional units are modularly designed. It is mainly suitable for the data room usage scenarios of small and medium-sized UPS above 60KVA and 200kVA and below. The maximum capacity of EPK S horizontal bus is 630A, and it is internally compatible with mains input, UPS input and output, air conditioning, lighting and monitoring and other power distribution schemes. Equipped with the self-developed PTMS power monitoring system to realize the single-line diagram display of the entire electrical link, improve the system management capability, and form a highly reliable and intelligent power distribution system link.
Features
1. Units of single or multiple functional types constitute modularization, and finally a complete cabinet is composed of multiple modules
2. Functional unit with the concept of modularity, internal components: ATS, surge protector, molded case circuit breaker, miniature circuit breaker, etc. Easy to install in combination:
Copper bar connections are set between individual module units, and the connection with adjacent units is fast, stable and simple High system security:
1. Each functional unit meets safety requirements to ensure sufficient electrical clearance between components
2. Heat dissipation holes are set on the back of each functional unit to ensure the heat dissipation of each functional unit
3. Each functional unit has a dedicated panel to effectively prevent personnel from directly touching live parts
