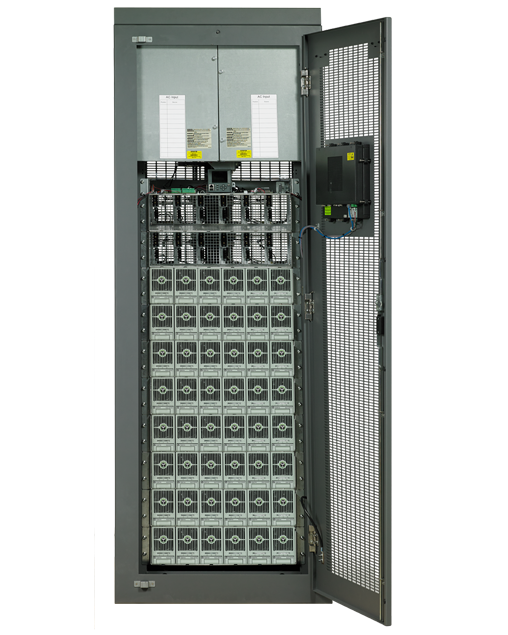

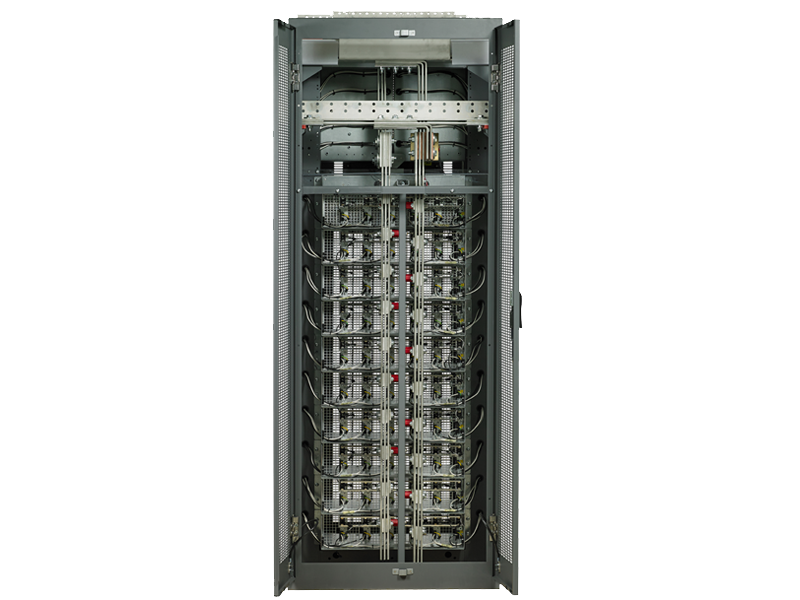

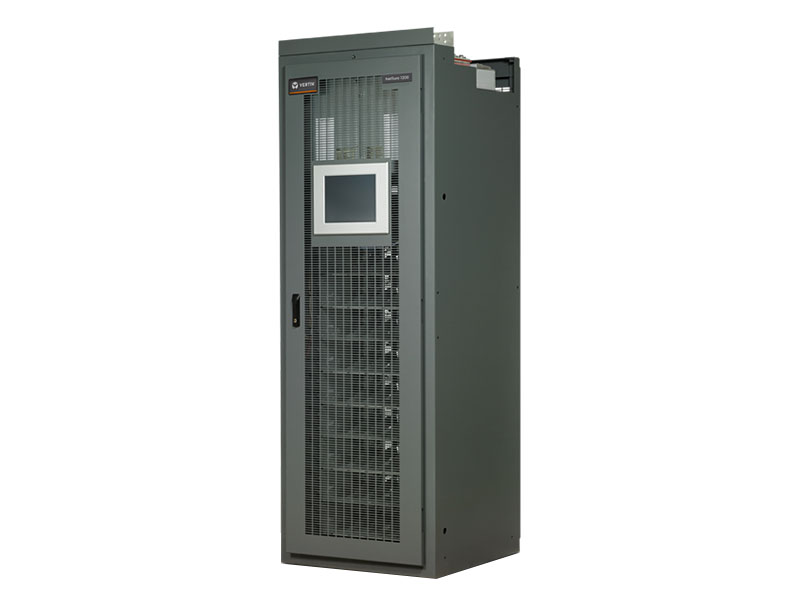

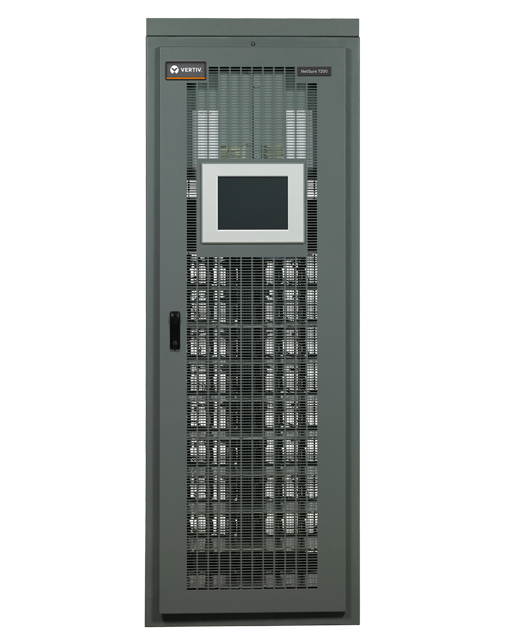

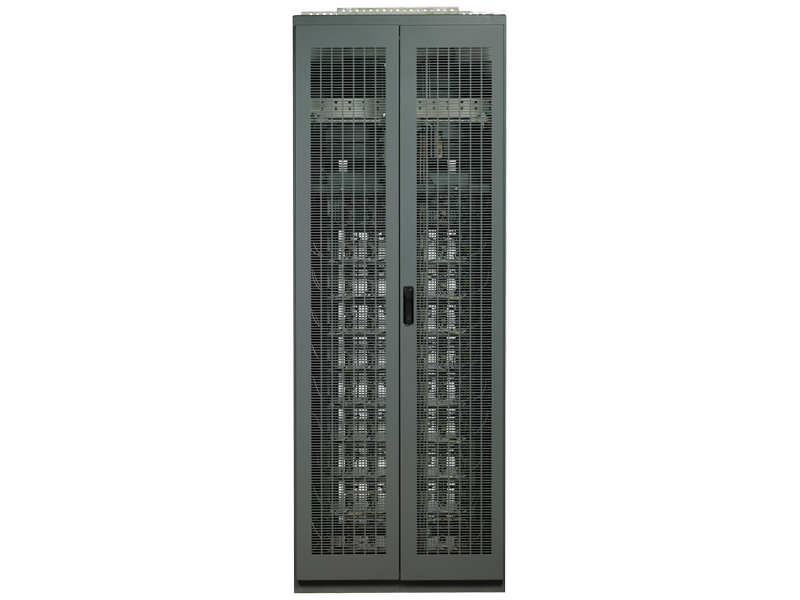

NetSure 7200 Series
The NetSure™ 7200 DC power system is an efficient and reliable multi-bay power system that delivers intelligent control, metering and monitoring. The foundation of the system is a patented, proven 3.5kW eSure™ rectifier, featuring high frequency switching technology in a compact package. The flexible and modular design of this series enables deployment in a variety of site configurations and allows for scalable buildouts to match capacity to demand.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
- Data Center/Colocation/Hosting
- Government
NetSure 7200 Series
The NetSure™ 7200 DC power system is an efficient and reliable multi-bay power system that delivers intelligent control, metering and monitoring. The foundation of the system is a patented, proven 3.5kW eSure™ rectifier, featuring high frequency switching technology in a compact package. The flexible and modular design of this series enables deployment in a variety of site configurations and allows for scalable buildouts to match capacity to demand.
- Telecom
- Data Center/Colocation/Hosting
- Government
Benefits
Features
Specifications
- Product Overview
- Power Capacity
- 600 kW
- Current Capacity
- 12,000 A
- Output Voltage, Nominal
- -48 VDC
- Input Voltage, Nominal
- 208/240 or 277/480 VAC
- System Type
- Cabinet
- Input
- Input Voltage, Nominal
- 208/240 or 277/480 VAC
- Input Voltage, Operational
- 176 to 305 VAC

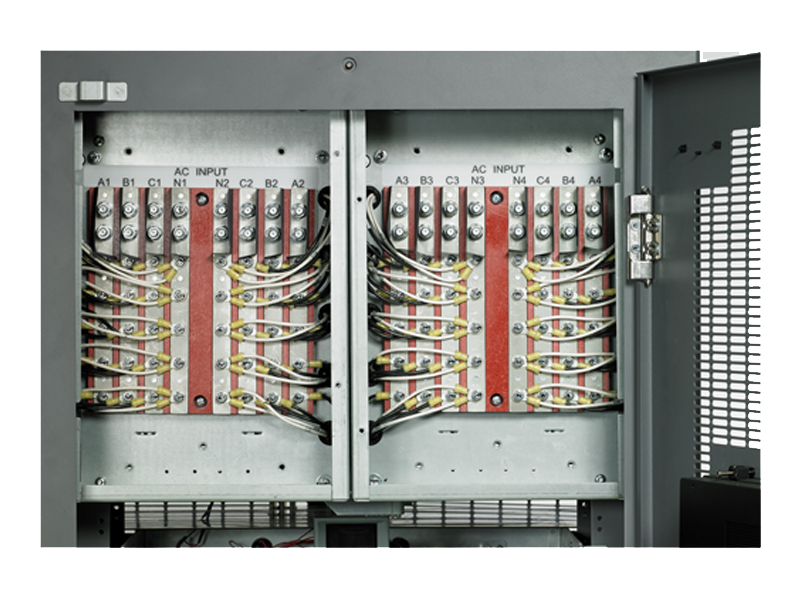

- Input Connections
- Terminal Strip
- Access
- Rear
- Output
- Output Voltage, Nominal
- -48 VDC
- Output Voltage, Operational
- 42 to 58 VDC
- Output Capacity
- System 12000 amps; Bay 4000 amps (48VDC); Rectifier 3500 W (R48-3500e)
- Peak Efficiency
- 96.2%
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL, TPH Fuses; GJ/218, Bullet Circuit Breakers
- Physical Characteristics
- Weight
- 442-555 kgs
- Height
- 2134 mm
- Width
- 762 - 6096 mm
- Depth
- 762 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet Embedded web pages, SNMP, Modbus;Programmable Relay Outputs and Binary Inputs
- Operating Temperature
- 0°C to +40°C (+32°F to +104°F)
- Safety Compliance
- Power Bay; UL 60950 Listed (“c UL”), NEBS; Distribution Bay UL 1801 Listed (“c UL”), NEBS
- EMC Compliance
- FCC Class B
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
