Liebert® APS AS6 Series
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Government
- Healthcare
- Retail and Wholesale
- Transportation
Product Model
Warranty:
TWO YEAR LIMITED WARRANTY
AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP
Liebert® APS AS6 Series
Best Suited For:
- Government
- Healthcare
- Retail and Wholesale
- Transportation
Benefits
5 kVA/4.5 kW power modules deliver enhanced active power
Scalable, pay as you growarchitecture optimizesinitial investment
Integral battery monitoring and temperature compensated charging for extended battery life and fewer replacements
Fault-tolerant design allows the critical load to run on conditioned power in the unlikely event of component failure.
Hot-swappable power, control and battery modules allow replacement to be carried out without distrubingthe load.
Intelligent Battery System provides continuous battery monitoring and protection
Offers LIFE™ Services, real-time remote diagnosticsforproactive maintenance, decreasing the average Mean Time to Repair (MTTR)
Upgradeable, even while operating in double conversion mode
Configurable input: one or three phase
Designed for standalone or rack mount installation
Multiple Power Output Distribution (POD) boxes allows for specific application connections
Features
REMOTE MANAGEMENT & ENVIRONMENTAL MONITORING: Factory installed Intellislot Unity Card and three total intellislot ports for FREE remote management, and support for environmental sensors
True on-line double conversion
UPS Hot-swappable power and battery modules
High power factor 5 kVA / 4.5 kW power modules
Site configurable as single phase or three phase input
Scalable up to 20 kVA N+1plus 10 kVA of redundancy
Fully rated @ 40°C Stand alone or rack mountable Intelligent battery modules with automatic offline capability for anomalous events
Optional 10 A charger module
Terminal block or optional distribution moduleoutput socket
Specifications

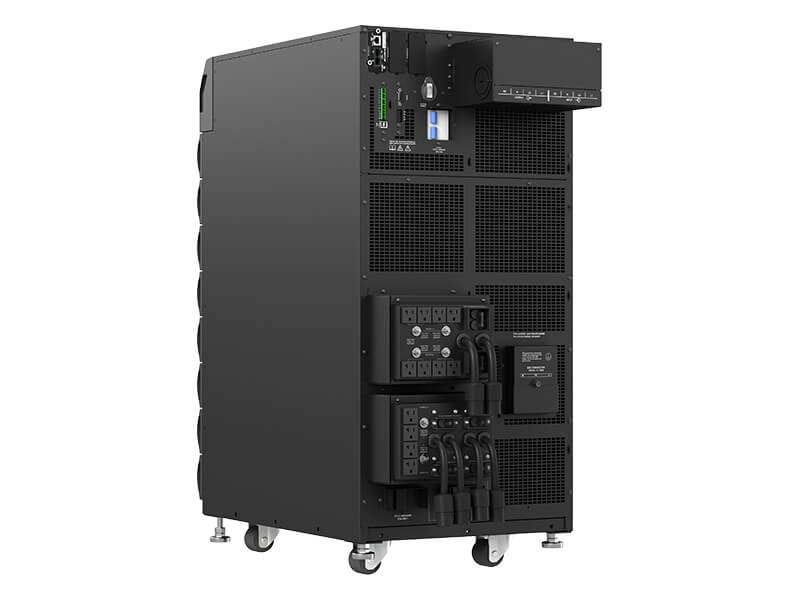

The Liebert APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Liebert APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.
