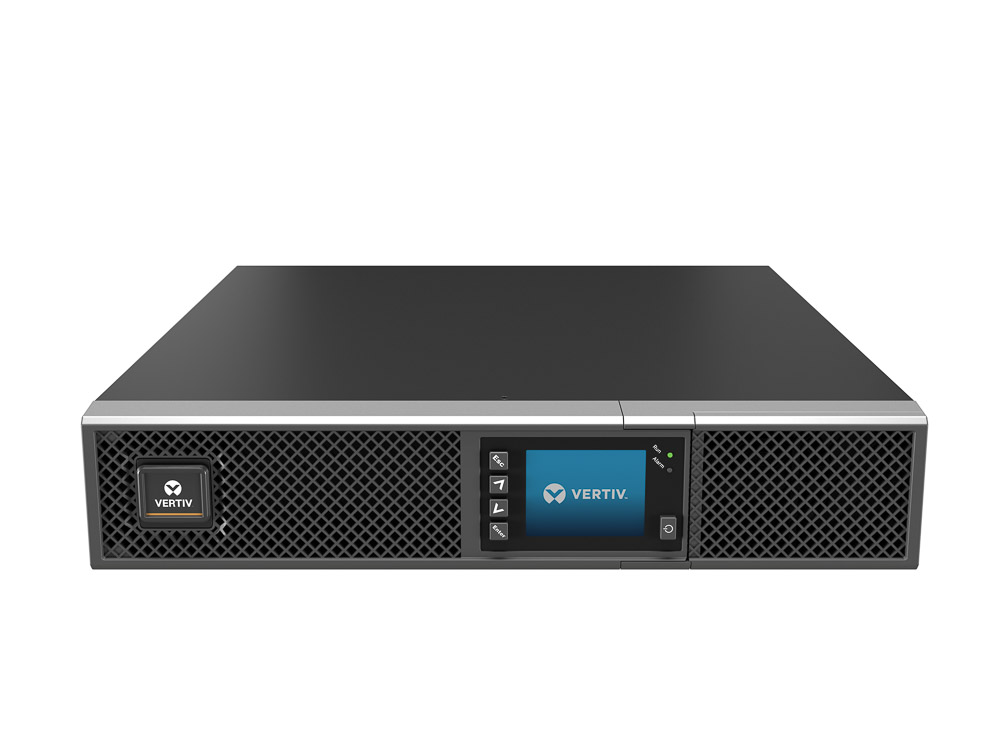

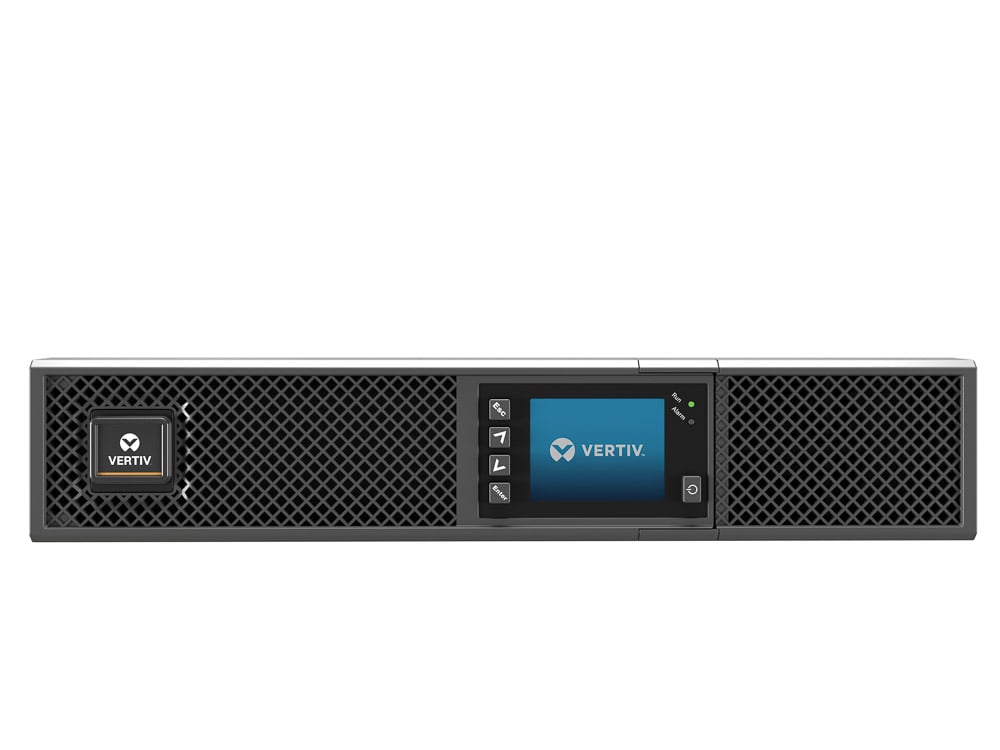

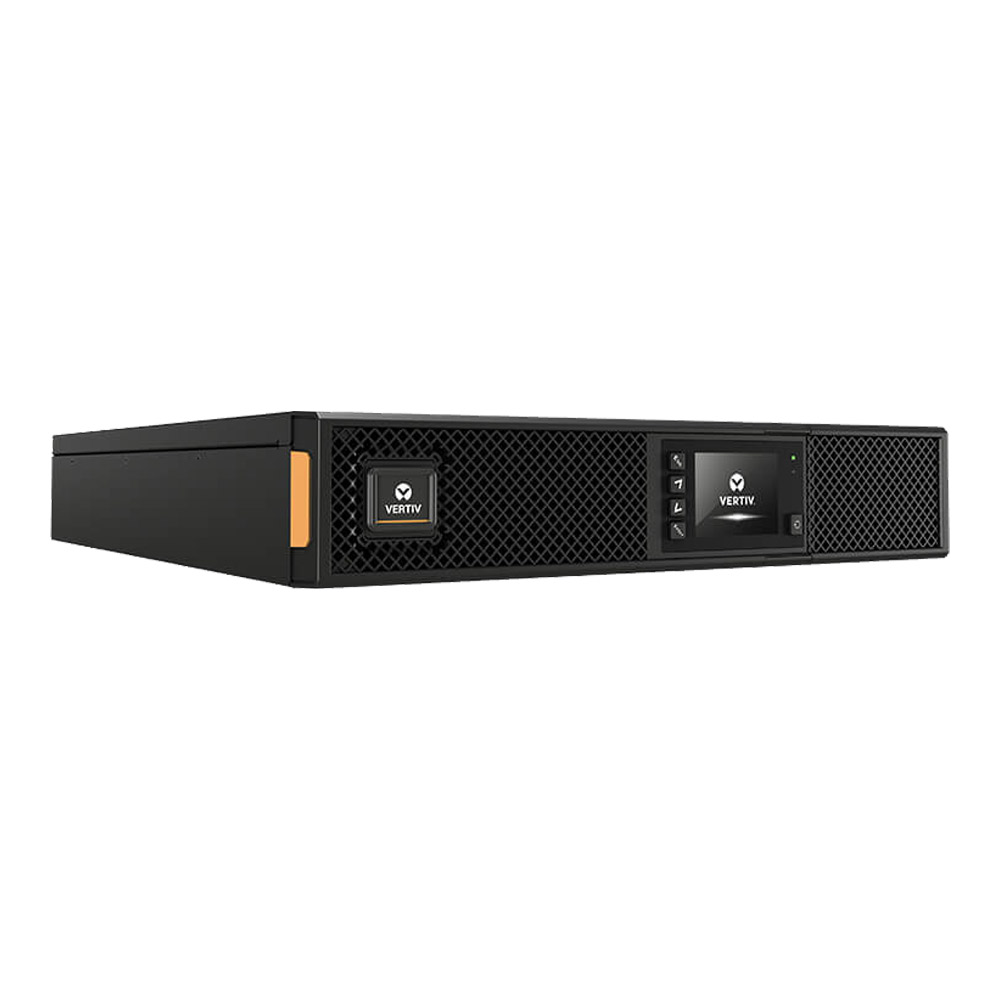

GXT5-500LVRT2UXL
The Vertiv™ Liebert® GXT5 UPS, with a capacity of 500VA/500W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Education
- Government
- Healthcare
- Retail and Wholesale
- Banking, Financial and Insurance
GXT5-500LVRT2UXL
The Vertiv™ Liebert® GXT5 UPS, with a capacity of 500VA/500W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.
- Education
- Government
- Healthcare
- Retail and Wholesale
- Banking, Financial and Insurance
Benefits
Features
Specifications
The Vertiv™ Liebert® GXT5 UPS offers a full range of single-phase UPS. It’s easy to deploy with convertible rack/tower design that offers installation flexibility, and its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and configuration is also made easy auto-detection of external battery cabinets for additional runtime solutions. With available network card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services remote service delivery tools are available to support your critical infrastructure. Designed for high availability and capacity, these UPS models with high output power factors up to unity, provide more usable power in a compact solution, enabling more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while being energy conscience. Increased efficiency is also achieved with Active ECO operating mode.
- Product Overview
- Power Rating
- 500VA / 500W
- Input Voltage
- Typical: 120V / Range: 60-150V
- Output Voltage
- 110/115/120/125VAC; (user-configurable); ±3%
- Efficiency
- Up to 98% Active ECO Mode; up to 95% on-line mode
- Wiring
- Input: NEMA 5-15P; Output: 5-15R × 6
- Interfaces/Ports
- Interface Options
- Optional communications card (Vertiv™ RDU101), USB, RS485, RS232, terminal block, external battery connector
- Protocols
- SNMP and web management enabled with optional Vertiv RDU101 communications card; serial connection for out-of-band management
- Control Panel

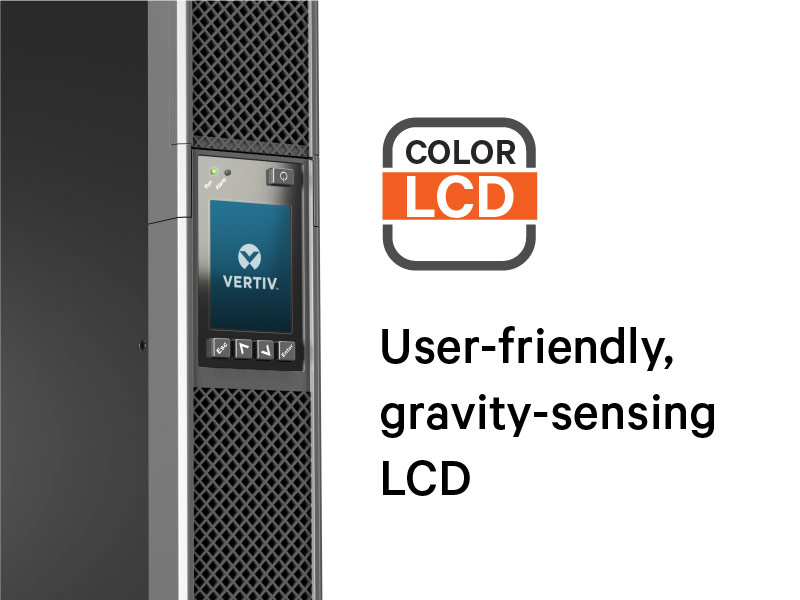

- Colored graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation
- Operational Conditions
- Operating Temperature
- +32 to +104 °F (0 to 40 °C)
- Miscellaneous
- General
- Output Receptacles: 5-15R × 6; 4x individually programmable receptacles and 2x non-programmable receptacles
- Listings
- ENERGY STAR® 2.0 certified, WEEE, RoHS2, REACH, UL 1778 4th edition and CSA 22.2 No. 107.1
- Topology
- On-line double conversion UPS; compact and flexible rack/tower form factor
- Vertiv Liebert GXT5 500VA - 3000VA VRLA Brochure
- Vertiv™ GXT5 Techdata Application Brief
- Vertiv™ RDU101 RS-485 Converter Accessory Data Sheet SL-70523.pdf
- Vertiv™ Liebert® IntelliSlot Card Comparison Data Sheet SL-23240.pdf
- Liebert-Energy-Star-DS-EN-NA-SL-70103-WEB.pdf
- Vertiv™ Liebert® GXT5 UPS Data Sheet SL-70719
- Vertiv-Equipment-Protection-Plan-Information-DS-EN-NA-SL-70771-WEB.pdf
- Vertiv™ Avocent® DSView™ Providing Secure Remote Access Application Brief
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
