Product Model

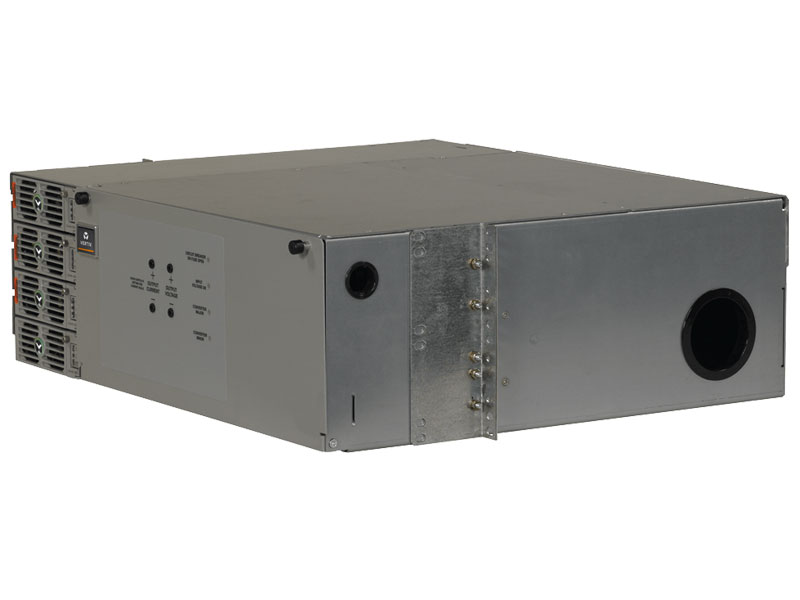

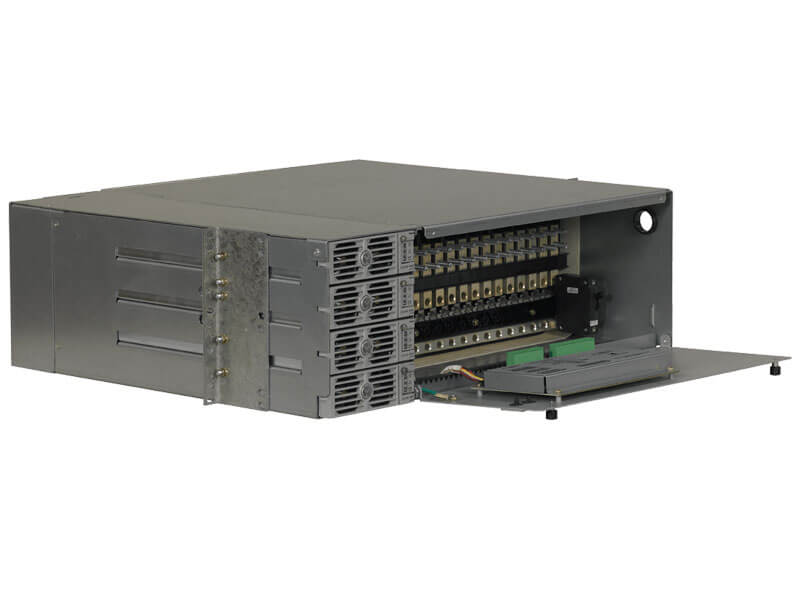

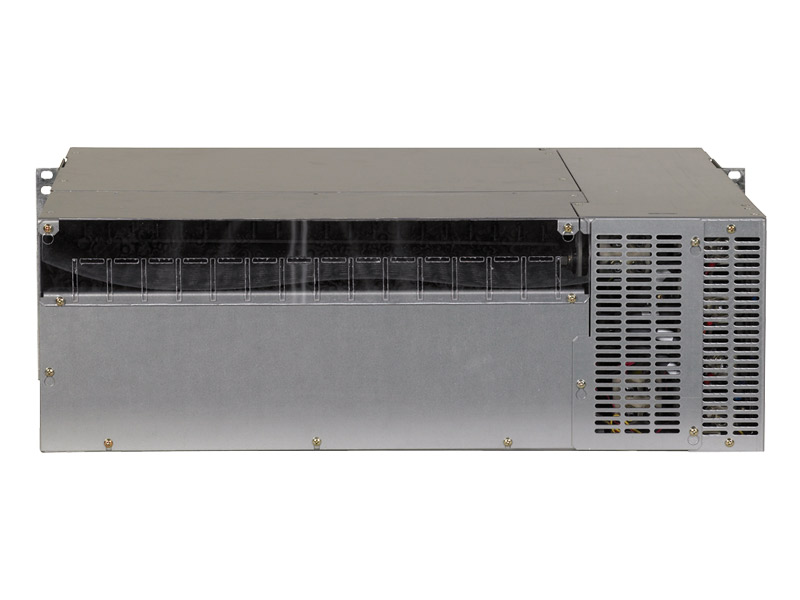

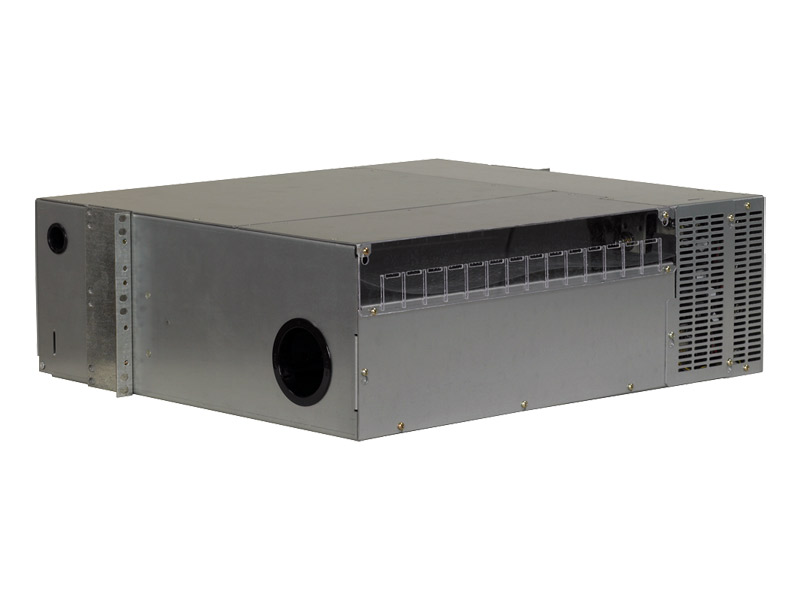

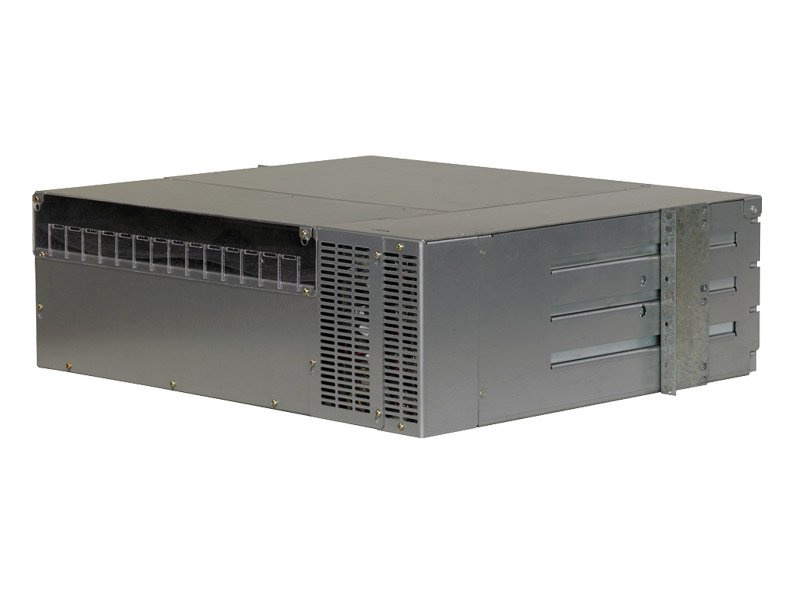

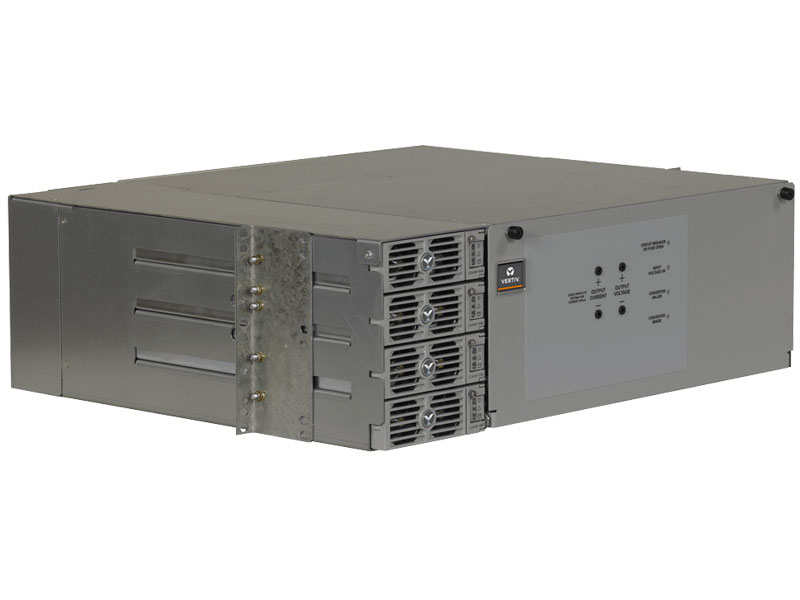

NetSure DCS48375
Compact, cost effective, modular design, ideal for +24 VDC applications requiring –48 VDC output.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product Model
NetSure DCS48375
Compact, cost effective, modular design, ideal for +24 VDC applications requiring –48 VDC output.
Best Suited For:
- Telecom
Benefits
Easy expansion of operating capacity in small increments without disruption
Compact form factor allows for easy fit into any standard rack
Complies with industry standards ensuring safe and reliable operation
Features

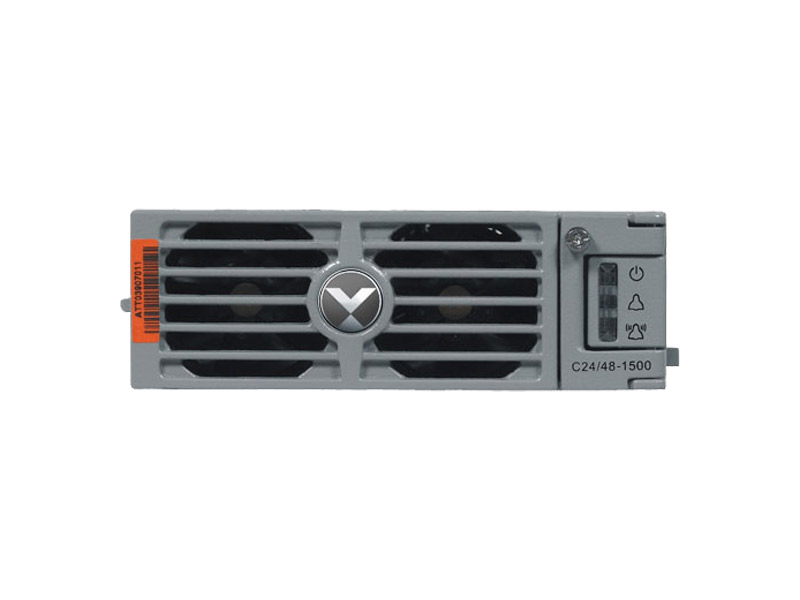

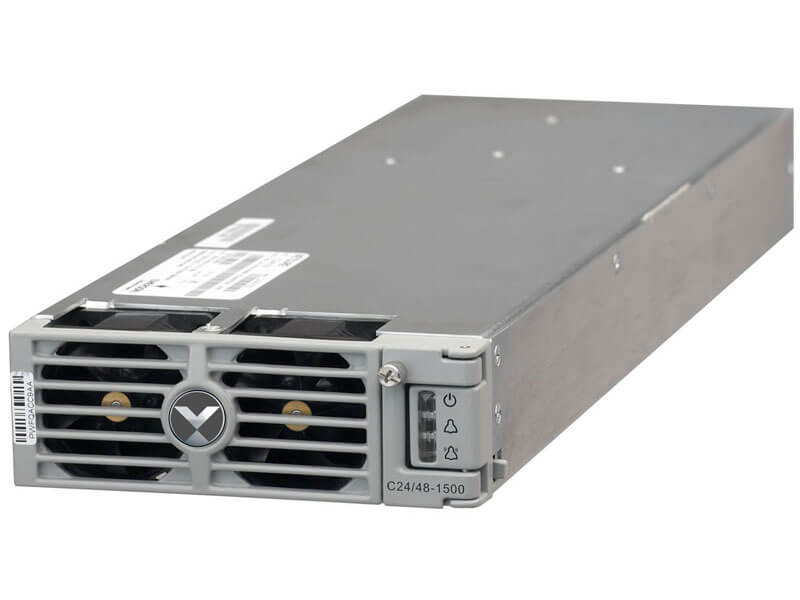

Modular, plug-n-play converters
Hot insertion capability allows for system expansion without disruption
Standard 19" and 23" rack mounting
Expansion up to three shelves for 375 amps and 60 bullet positions
Isolated input to output
UL recognized, NEBS Certified
Major and Minor, Fuse Alarms
Test points for output voltage and current measurement
Specifications
NetSure DCS48375
- Input
- Input Voltage, Operational
- 20.5 to 30.0 VDC
- Input Connections
- 2-hole lug
- Equipment Dimensions (H x W x D)
- 6.97" (4RU) x 19" or 23" x 18.8"
- Access
- Front for operation and maintenance, Rear for installation and expansion
- Output
- Output Voltage, Operational
- 48.0 VDC to 54.0 VDC
- Output Capacity
- Converter: 1500 W, Shelf: 6000 W, System: 18000 W
- Peak Efficiency
- 91.2%
- Load Circuit Breakers / Fuses

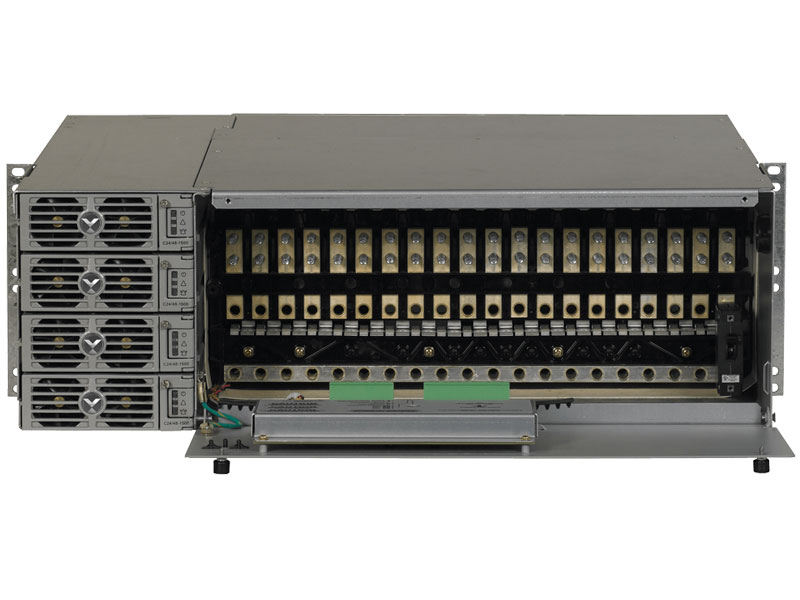

- 19" shelf: (15) Bullet CBs, 1 to 300 A; 23" shelf: (20) Bullet CBs, 1 to 300 A
- Physical Characteristics
- Weight
- 23.6 kg
- Height
- 177 mm
- Width
- 482.6 mm and 584.2 in. mounting
- Depth
- 477.5 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Voltage settable from -48 to -54 VDC, Voltage and Current test points, Fuse alarm, Major and Minor converter alarm, Low input voltage alarm
- Operating Temperature
- -40 °C to +65 °C (-40 °F to +149 °F)
- Safety Compliance
- UL 1950 Recognized, NEBS
- EMC Compliance
- FCC Class B
Manuals
Technical Specifications
