Product Model
NetSure 5100 582137200
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product Model
NetSure 5100 582137200
Best Suited For:
- Telecom
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency
Features

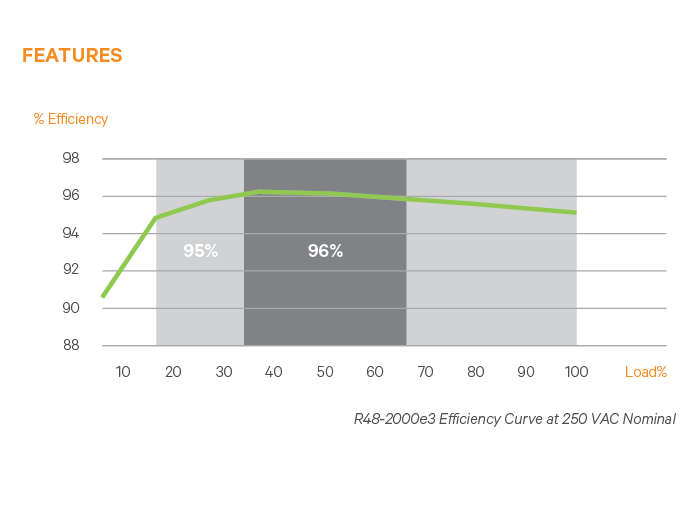

High efficiency – 96.2% efficient eSure rectifiers

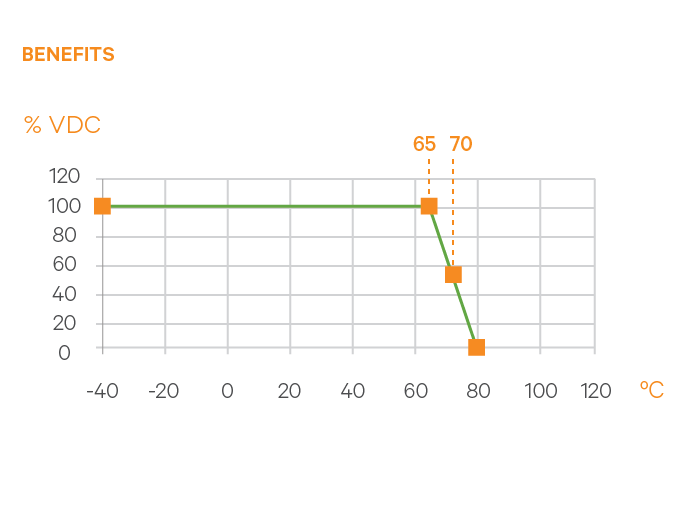

Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)
Specifications
NetSure 5100 582137200
- Input
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC
- Input Connections
- Molex for AC cords or hardwiring
- Equipment Dimensions (H x W x D)
- up to 3U x (19" or 23") x 14.7"
- Access
- Front and Rear access
- Output
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC
- Output Capacity
- Up to 150 amps at -48 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96%
- Load Circuit Breakers / Fuses
- 1-150 A E/M or E bullet nose breakers or 1-15A GMT fuses
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 1A to 150 A E/M or E breakers
- Options
- Optional Battery Trays, SM-Temp, BAU, Relay racks
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Recognized (cUL)
- EMC Compliance
- Conforms to FCC rules Part 15, Subpart B, Class B; EN55022 Class B, radiated and conducted; GR-1089 Issue 4
