Product Family
Liebert HPA

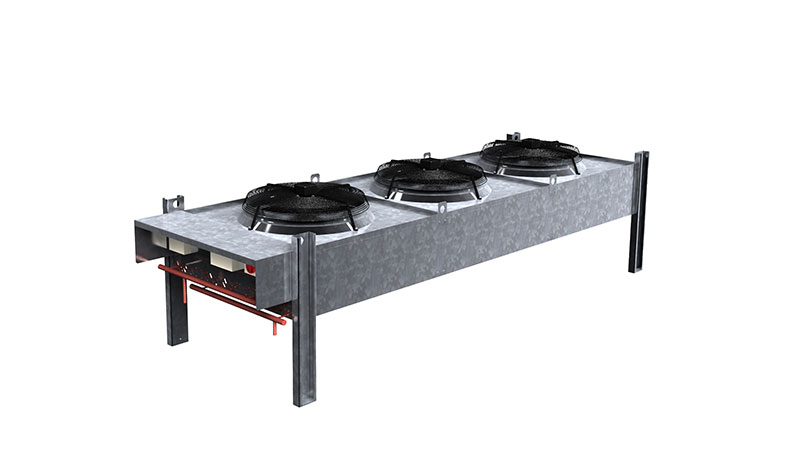

High performance direct expansion condensing unit, suitable for R410A refrigerant. It dissipates the heat coming from the air-cooled condenser indoor units. Available in a wide range of sizes, with a cooling capacity from 5 to 100 kW.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Family
Liebert HPA
High performance direct expansion condensing unit, suitable for R410A refrigerant. It dissipates the heat coming from the air-cooled condenser indoor units. Available in a wide range of sizes, with a cooling capacity from 5 to 100 kW.
Benefits
Suitable for R410A refrigerant with wo versions available: single (HCR models) and double circuit (HBE models)
All the models have coated aluminium frames. The standard coil is made of copper piping and aluminium fins. There is also the option of epoxy coated coils or copper fins, for better resistance to corrosion.
The inner surface of the pipes has a special pattern that, through increased turbulence, allows greater heat exchange at the same airflow.
The fans consume less energy and produce less noise.
Special coil supports avoid contact between the pipes and the frame. This eliminates the risk of breaking the sealed circuit thus improving the durability of the product.
Features
Safety switch
Power supply 50 or 60 Hz
Pipe adapters
Modulating fan speed control for silent operation during the night
Service valves with pressure tap
Silent axial fans
IP54 motors
Legs can be used either for horizontal or vertical installation.
