Product Model
NetSure 5100 582137100
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product Model
NetSure 5100 582137100
Best Suited For:
- Telecom
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency
Features

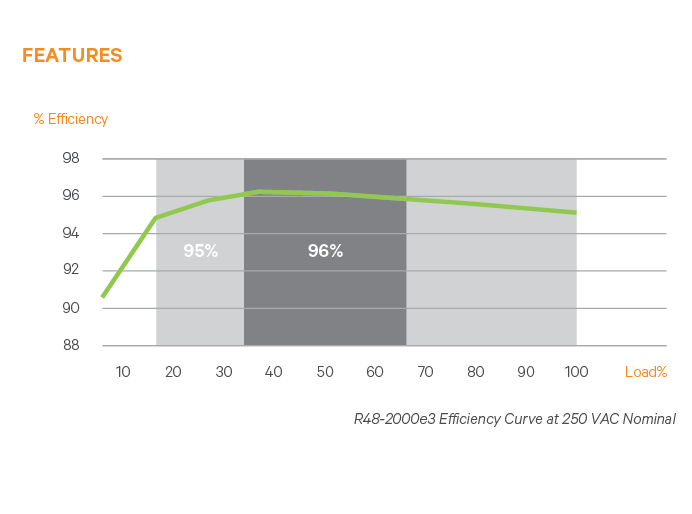

High efficiency – 96.2% efficient eSure rectifiers

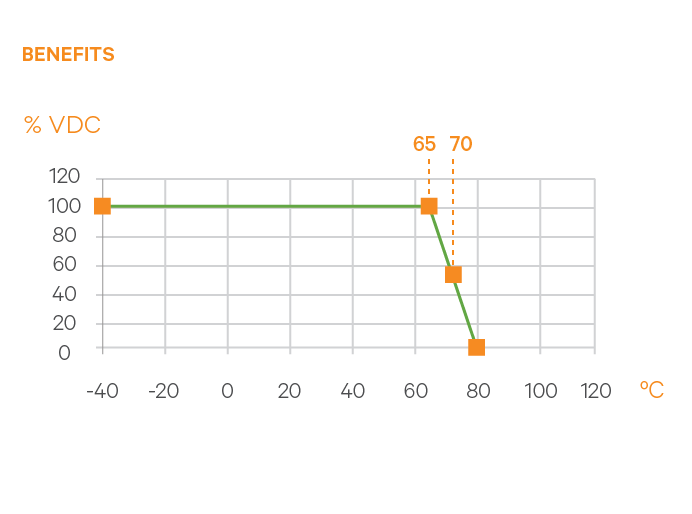

Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)
Specifications
NetSure 5100 582137100
- Input
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC, Solar Converter: 120 VDC to 420 VDC, DC-DC Converter: 41 VDC to 58.5 VDC
- Input Connections
- Molex for AC cords or hard wiring, terminal strip or breaker (solar)
- Equipment Dimensions (H x W x D)
- Distribution cabinet: 4U x 19" x 15" or 8U x 23" x 15", Module shelf: 1U x (19" or 23") x 15"
- Access
- Top or rear cabled with front and top access
- Output
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 600 amps at -48 VDC plus redundancy; Up to 400 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.2%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- 1-300 A E/M or E bullet nose breakers, 100-600 A E/M GJ Hybrid Panel Breakers, 3-100 A TPS/TLS fuses, 18/100 A to 15 A GMT fuses
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 1A to 300 A E/M or E breakers, 50A to 200A GJ Breakers, 3A to 100A TPS/TLS fuses
- Options
- Optional Battery Trays, SM-Temp, BAU, Relay racks
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Listed (cUL)
