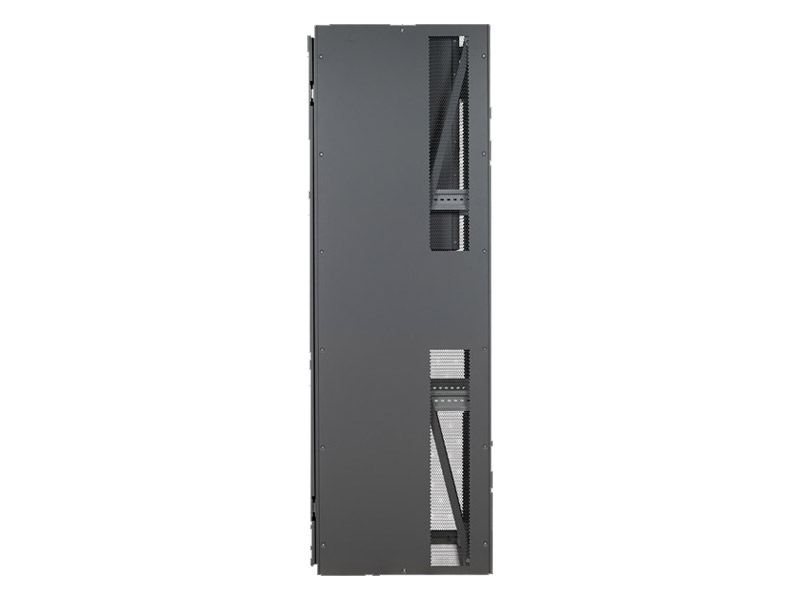

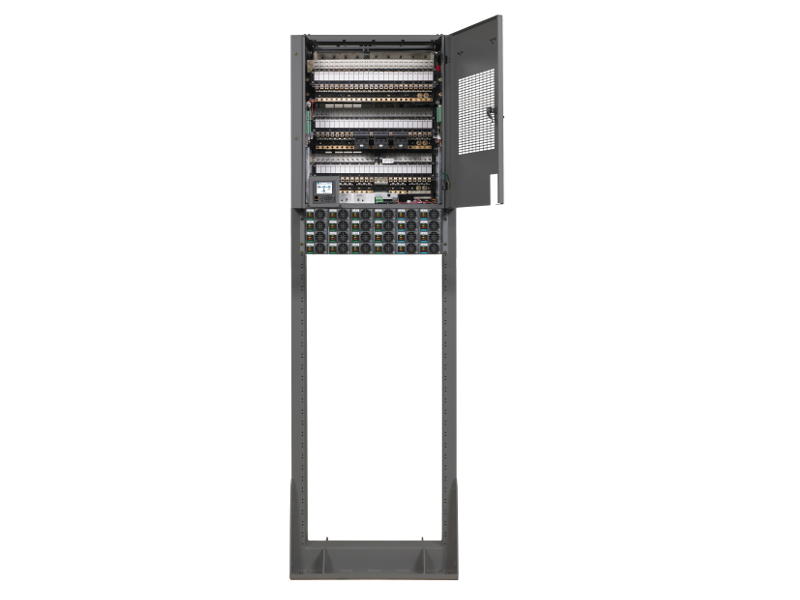

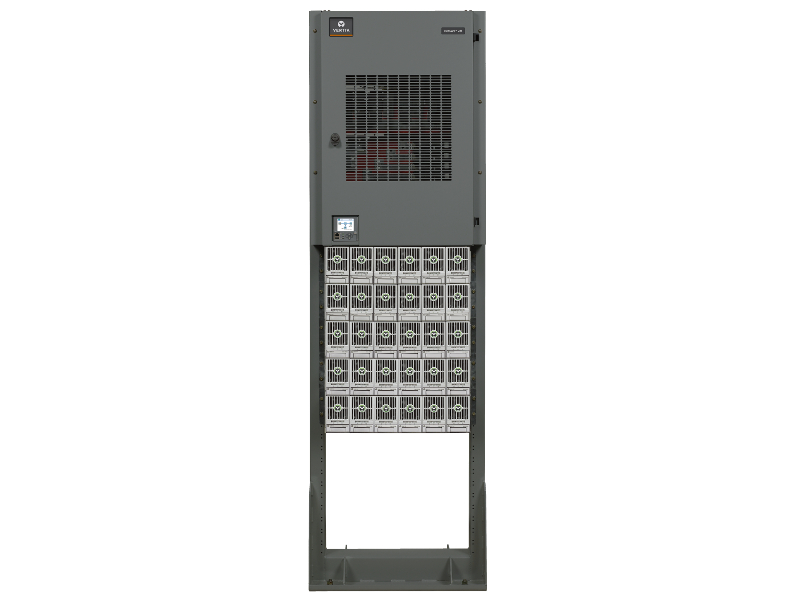

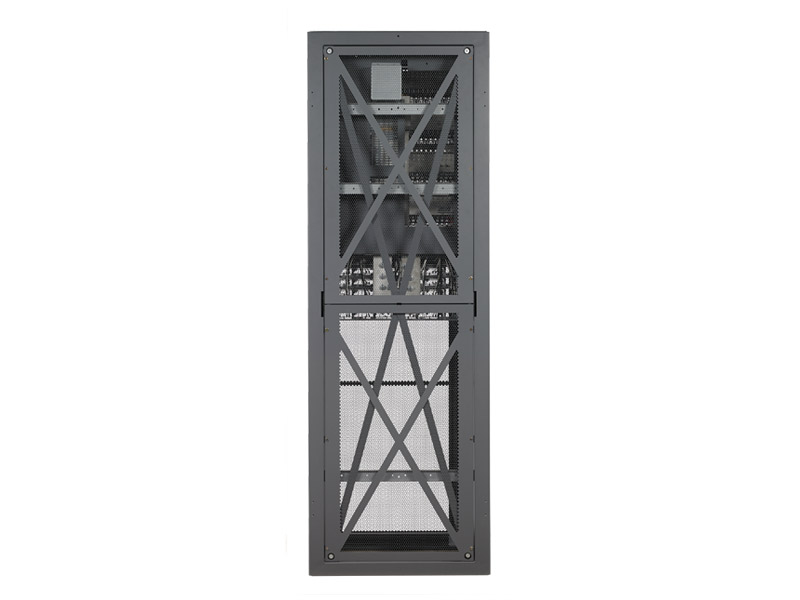

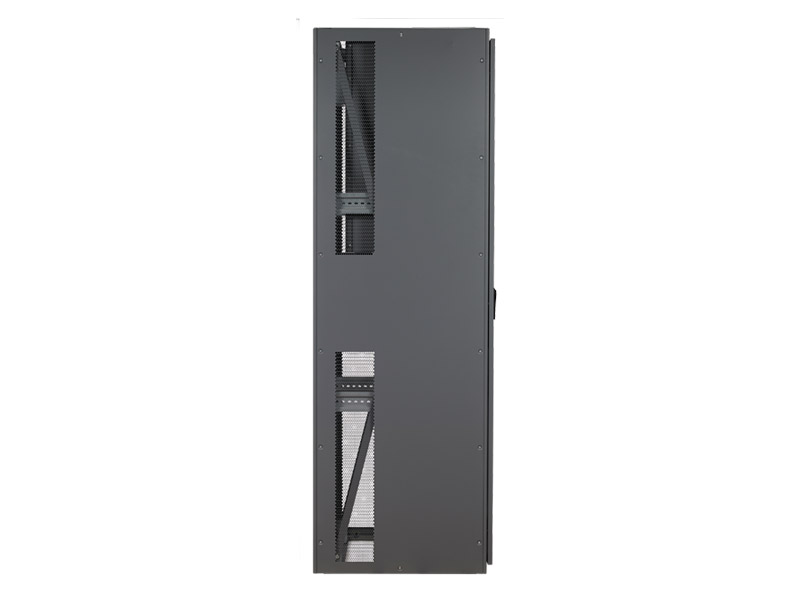

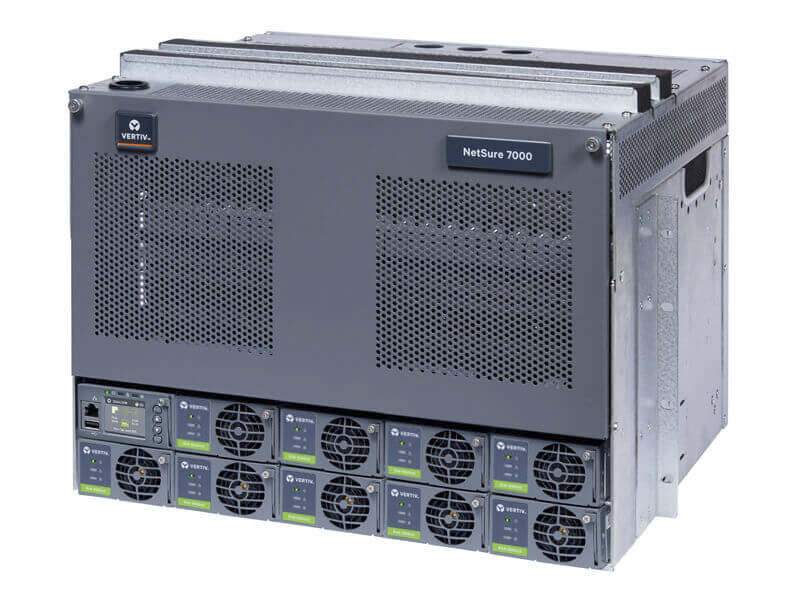

NetSure 7100 Series

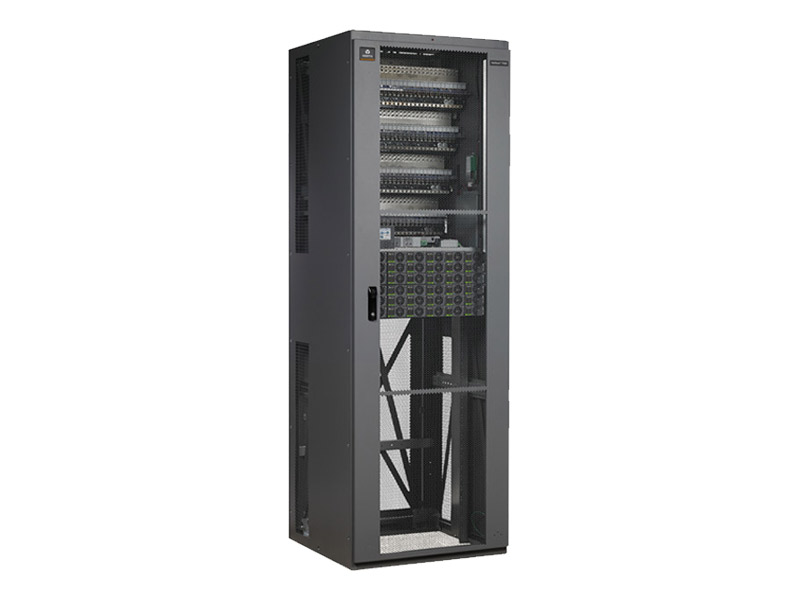

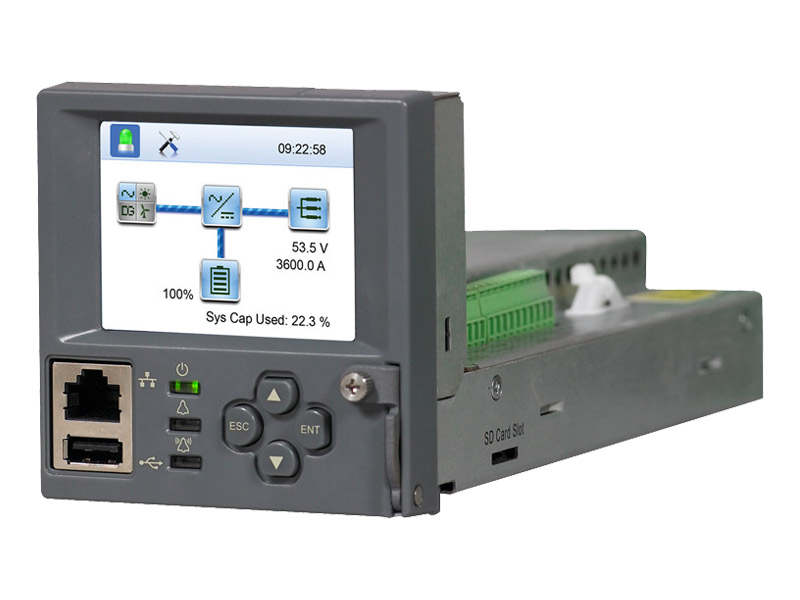

The modular NetSure™ 7100 Series power system with 3500 watt or 2000 watt rectifiers and DC to DC converters provides up to 12,000 amps of current for -48 volt systems with up to 520 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a modular distribution cabinet.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Telecom
NetSure 7100 Series
The modular NetSure™ 7100 Series power system with 3500 watt or 2000 watt rectifiers and DC to DC converters provides up to 12,000 amps of current for -48 volt systems with up to 520 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a modular distribution cabinet.
- Data Center/Colocation/Hosting
- Telecom
Benefits
Features
Specifications
- Product Overview
- Power Capacity
- 600 kW (6 bays)
- Current Capacity
- 12,000 A (6 bays)
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- System Type
- Cabinet or Relay Rack
- Input
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- Input Voltage, Operational
- 176 VAC to 305/528 VAC
- Input Connections
- Terminal Blocks or Line Cords
- Equipment Dimensions (H x W x D)
- D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
- Access
- Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
- Output
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy

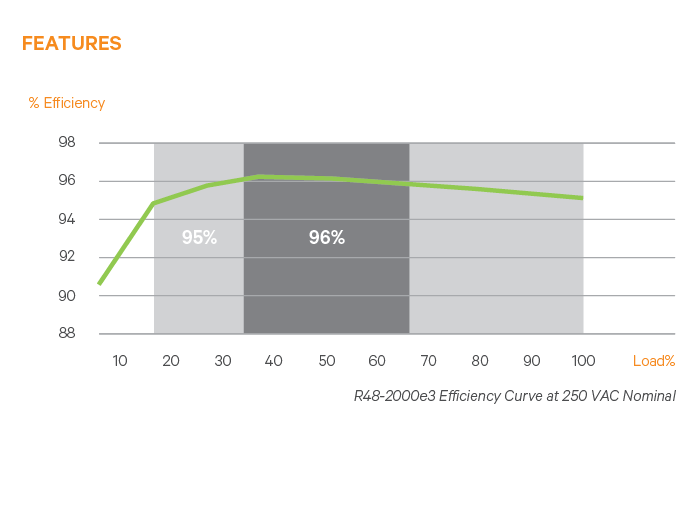

- Peak Efficiency
- Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Weight
- 90.9 to 295.5 kg
- Height
- 2134 mm
- Width
- 584.2 to 711.2 mm
- Depth
- 510.5 to 711.2 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management

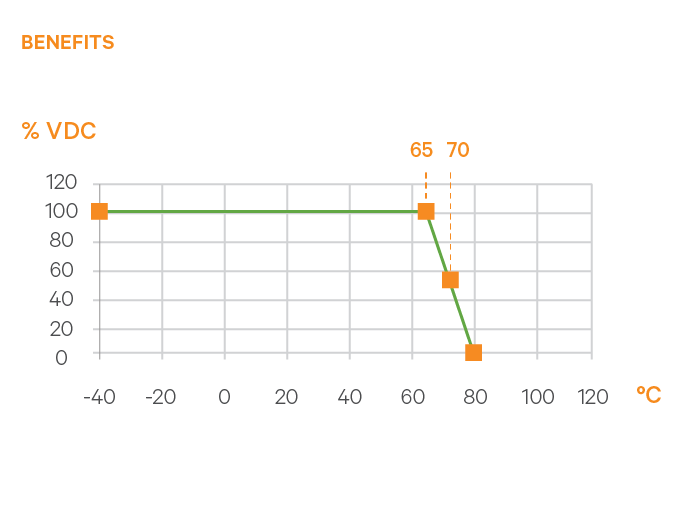

- Operating Temperature
- -40 °C to +40 °C (-40 °F to +104 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
- IM60028017 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028248 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028039 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60029556 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60027905 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual

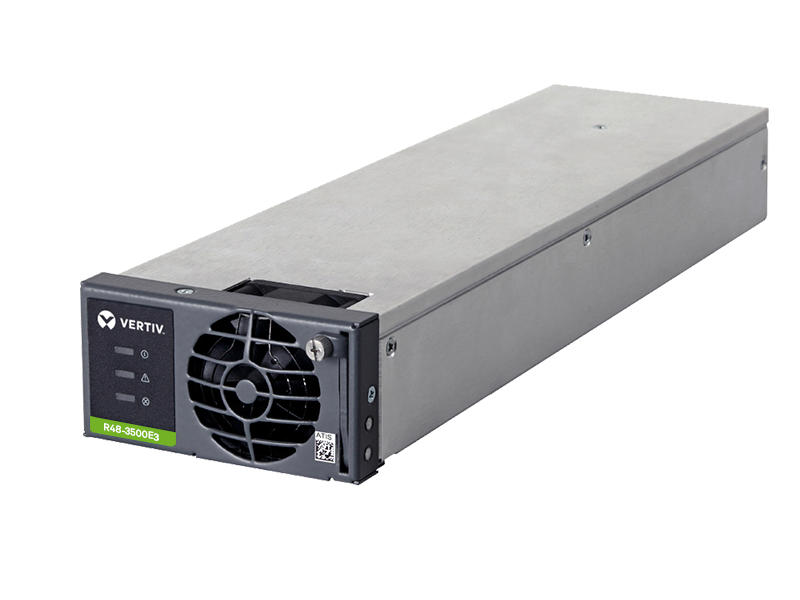

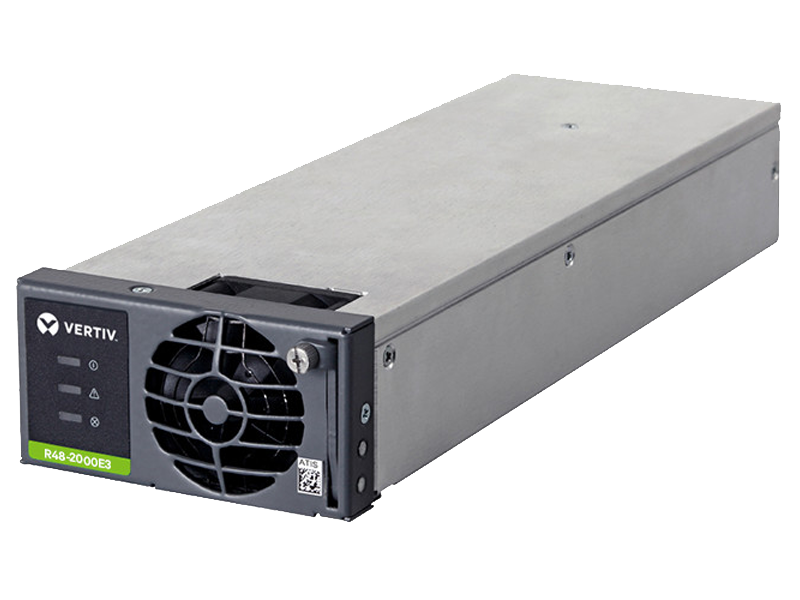

- UM1R483500E3 Rectifier User Manual
- UM1R483500E Rectifier User Manual.pdf
- PSD_eSure-Rectifier-module_ENG_User-Manual_UM1R482000e3-Rev-P
- IM582127000
- um02440103-sm-io2-user-manual
- UM10010507 (Rev E)
- im559252-netsure-controller-ethernet-kit

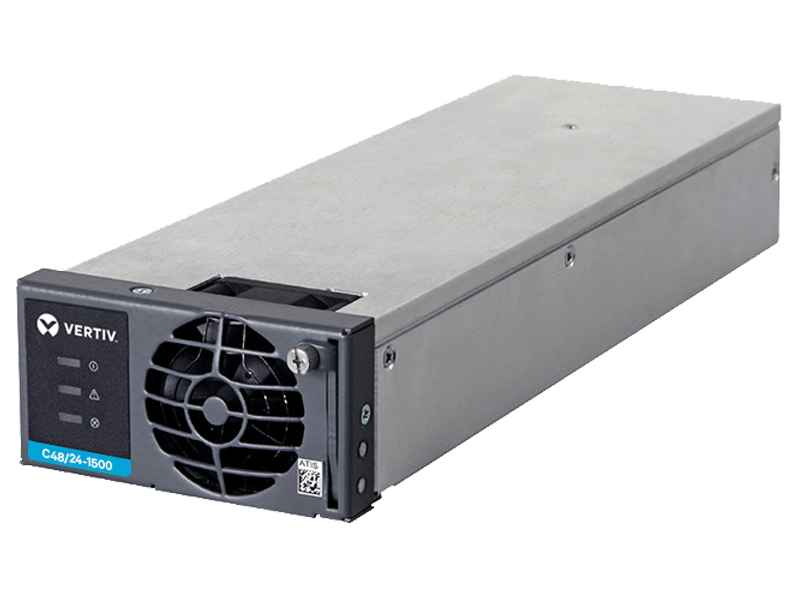

- UM1C48582000P3 eSure Power Extend Converter User Manual
- IM588820200SK001-vertiv-48v-netsure-battery-tray-kit
- IM559251 (Rev E).pdf
- NetSure 7100 Data Sheet with eSure Power Extend Converters
- Vertiv-eSure-Rectifier-R48-3500E3-DS-EN-GL-DC
- R483500e-Rectifier-DataSheet
- C48/58-2000P3 eSure™ Power Extend Converter Data Sheet
- Vertiv-eSure-Converter-C48-24-1500-DS-EN-GL-DC-20211018.pdf
- DAS-Solutions-BR-EN-NA-OE-00152
- Vertiv™ NetSure™ NCU Controller Data Sheet
- PSD_Vertiv-NetSure-DC-Power-Services-Maintenance_NA-ENG_Datasheet
- PSD_Vertiv-NetSure-DC-Power-Services-Test-and-Turn-Up_NA-ENG_Datasheet
