Vertiv™ Avocent® 5150T/5160T/6150T Zero-U IP KVM Transmitters
The Vertiv™ Avocent® 5150T/5160T/6150T Zero-U, High Performance KVM transmitters are designed for industries requiring hi-res and high speed transmission of data. These Zero-U dongles remove any distance limitations users may have with no compromise to video quality or control. The 6150T offers USB 2.0 True Emulation and is the first HDMI Zero-U HMX transmitter. The 5150T/5160T/6150T can integrate with existing Avocent HMX 5000/6000/8000 series and are backwards compatible.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Military, Defense, Aerospace and Missile
- Oil and Gas
- Transportation
Vertiv™ Avocent® 5150T/5160T/6150T Zero-U IP KVM Transmitters
The Vertiv™ Avocent® 5150T/5160T/6150T Zero-U, High Performance KVM transmitters are designed for industries requiring hi-res and high speed transmission of data. These Zero-U dongles remove any distance limitations users may have with no compromise to video quality or control. The 6150T offers USB 2.0 True Emulation and is the first HDMI Zero-U HMX transmitter. The 5150T/5160T/6150T can integrate with existing Avocent HMX 5000/6000/8000 series and are backwards compatible.
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Military, Defense, Aerospace and Missile
- Oil and Gas
- Transportation
Specifications
The Vertiv™ Avocent® HMX IP KVM System (5000-6000 series) is a high performance KVM extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. It is ideal for demanding applications that require high resolution and zero latency such as in broadcasting, sports venues, pre- and post-production editing, control rooms and collaborative environments. An IP-based KVM (keyboard, video, mouse) extender, it allows critical computing hardware to be housed remotely from the user workstation in a secure, temperature-controlled environment. It is designed to improve productivity, reduce IT costs and produce better business results. This KVM system provides powerful administrative tools and connection-management control for the network resources without compromising quality.
|

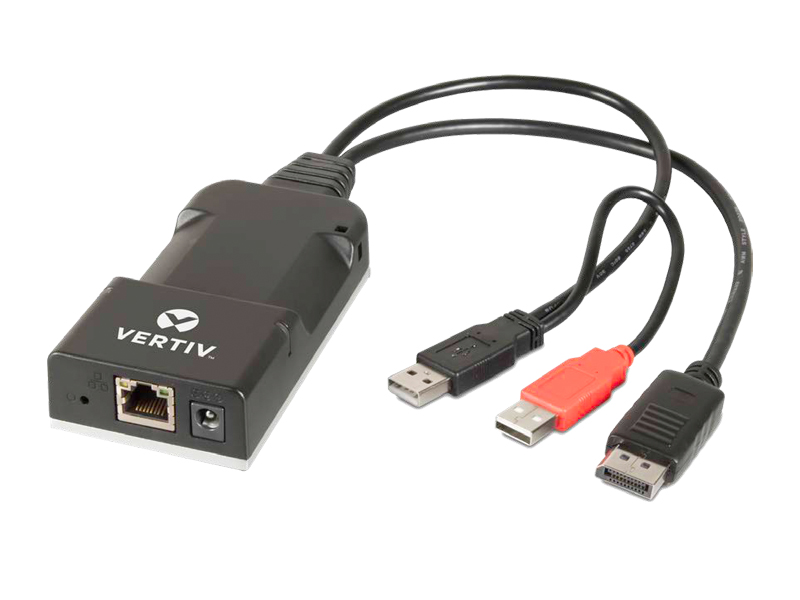

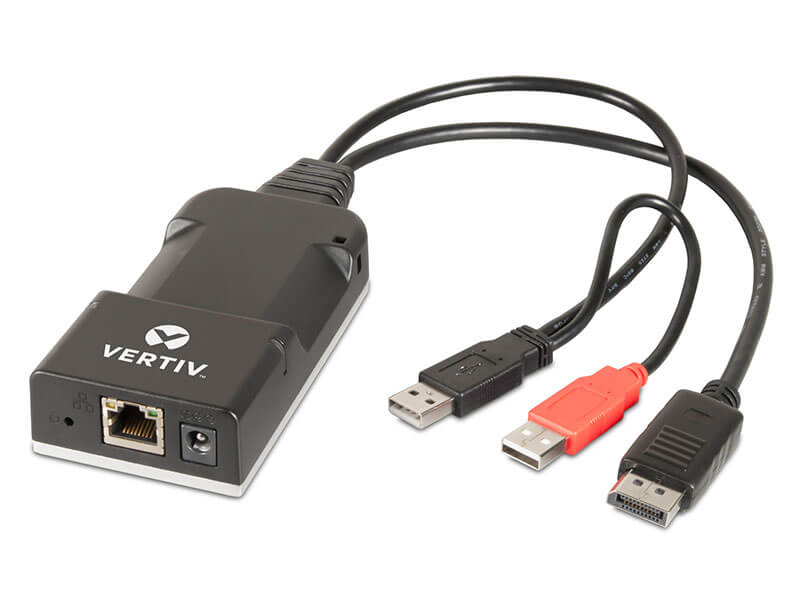

Vertiv™ Avocent® 5150T Zero-U IP KVM Transmitter
|
||||
|---|---|---|---|---|
| HPKVM | USB type A x 2 | Speaker & Mic | 1 X VGA | 1920x1200 |
| See more product information | ||||
|
Vertiv™ Avocent® 5160T Zero-U IP KVM Transmitter
|
||||
| HPKVM | USB type A x 2 | Speaker & Mic | 1 X DVID | 1920x1200 |
| See more product information | ||||
|
Vertiv™ Avocent® 6150T Zero-U IP KVM Transmitter
|
||||
| HPKVM | USB type A x 2 | Speaker & Mic | 1 X HDMI or 1 X DisplayPort | 1920x1200 |
| See more product information |
Benefits
Features
- Vertiv™ Avocent® HMX High Performance KVM Extender System Installer User Guide.pdf
- Avocent® HMX 5150T/5160T and 6150T High-Performance Transmitters Quick Install Guide
- Vertiv™ Avocent® HMX 5000, 6000 and 8000 Series High Performance KVM Extenders Network Recommendations Technical Note
- Vertiv™ Avocent® HMX Advanced Manager Network Recommendations and Troubleshooting Technical Note
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
