Product Model

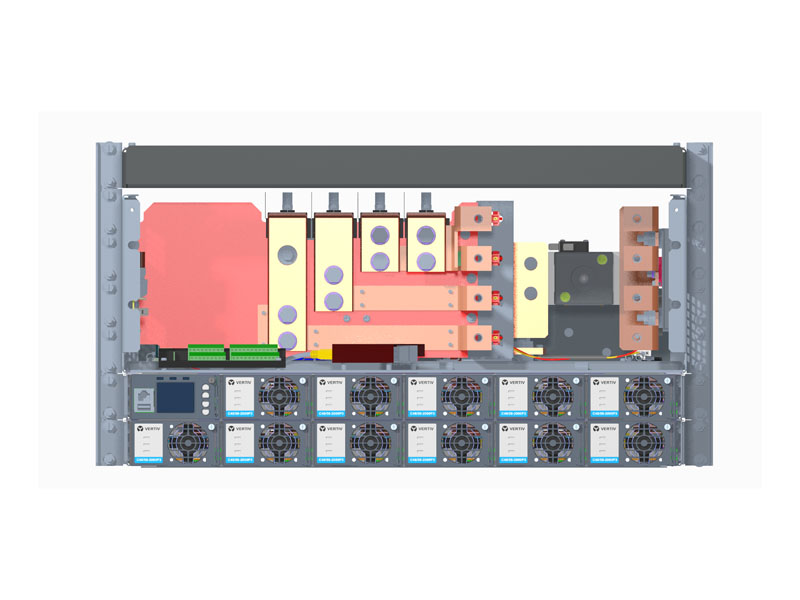

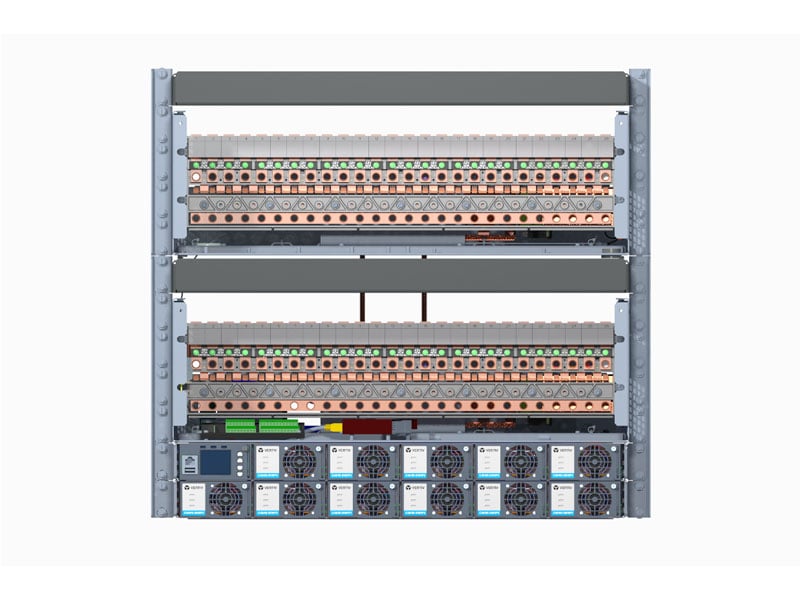

Vertiv™ NetSure™ Converter System -48V DC to -58V DC

The Vertiv™ NetSure™ -48 VDC to -58 VDC at 600A Converter System is a complete integrated converter system containing -48 VDC to -58 VDC converters, intelligent control, metering, monitoring, and distribution.

Get Brochure Get Manual
Best Suited For:
  • Telecom

Benefits

Modular design: Provides for system redundancy and easy expansion of operating capacity in small increments
Expandable: Optional converter shelves and distribution panel allow for system growth as site needs dictate
Hot insertion capability: Allows for system expansion without disruption
Surge Protection: Built-in surge protection protects equipment from damages
Load Shedding: Optional load disconnect contactor allows for shedding non-critical loads

Features

Safety compliance - NEBS, UL
Protection - Current limiting, Over-voltage and Over-temperature
Load sharing for parallel operation
Nine (9) Form-C alarm outputs
Easily accessible input and output connections for simplified installation
Emergency Power Off

Vertiv™ NetSure™ Converter System -48V DC to -58V DC
Input
Input Voltage, Operational
-41.0V DC to -58.5V DC
Input Connections
2-hole lug, 3/8" D x 1" on center
Access
Front and rear access for installation. Front access for operation.
Output
Output Voltage, Operational
-56V DC to -58V DC
Output Capacity
Converter Module: 2000W; Shelf: 12kW; System: 34.8kW
Peak Efficiency
95.60%
Load Circuit Breakers / Fuses
(26 to 52) Bullet type Positions or (4) GJ/218 CB Type Positions
Physical Characteristics
Weight
37.7 kgs
Height
311.2 mm
Width
592.8 mm
Depth
506.5 mm
Environmetal & Standard Compliance
Operating Temperature
-40 deg C to +65 deg C
Safety Compliance
UL 62368-1, NEBS
EMC Compliance
FCC Part 15 Subpart B, GR-1089 and EN 55032 Class B radiated emissions limits. GR-1089 conducted emission limits. EN 55032 Class A limits for conducted emissions.
