Product Model

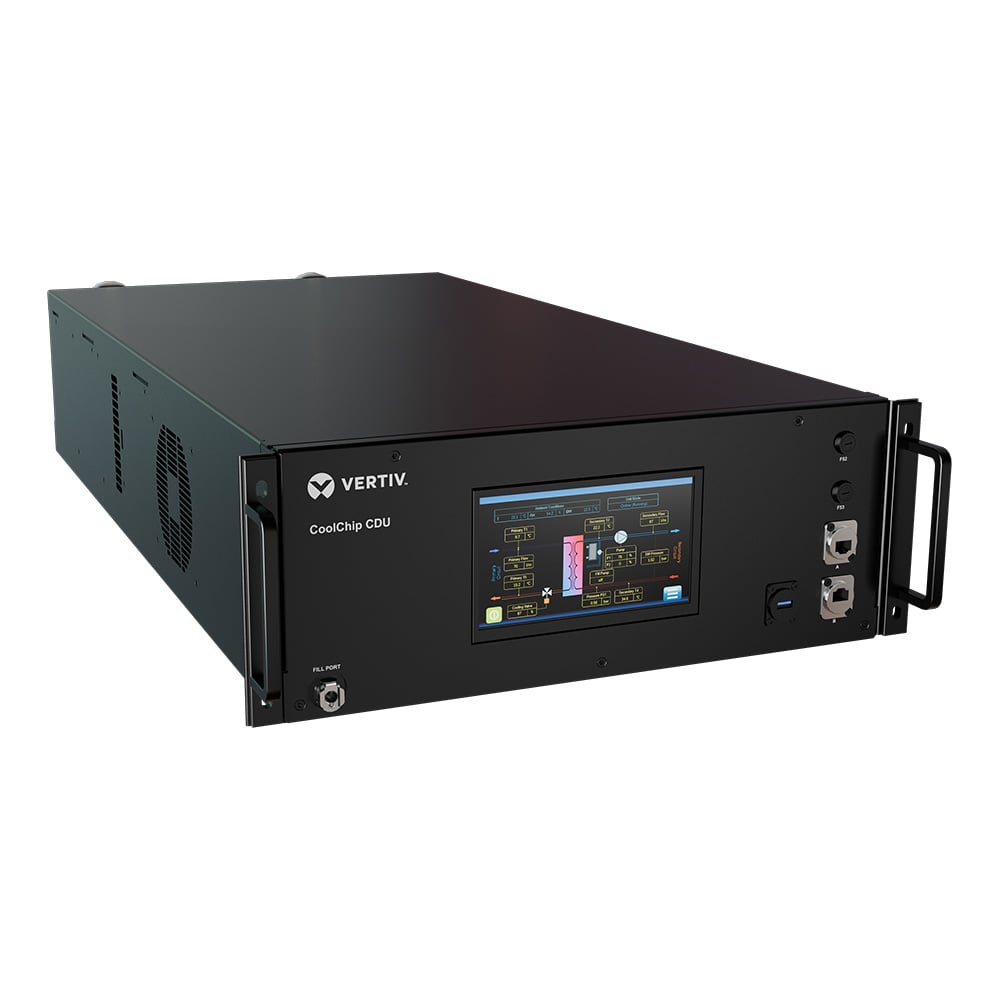

Vertiv™ CoolChip CDU, 100kW

Get Brochure Get Manual
Key Benefits
• Deploy liquid cooling rapidly and seamlessly – one rack at a time. • Deliver exceptional direct-to-chip cooling capacity with up to 100kW+ to accommodate high density racks • Localized IT equipment cooling loop integration • Improved quality and reliability with redundant pumps, built in filtration, and unit-to unit communication capabilities
Best Suited For:
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale

Benefits

• Achieve incredible efficiency in high-density environments • Protects secondary liquid network with strict conformance to wetted material compatibility • Intuitively designed for ease of deployment • In-rack placement to support and minimize a localized liquid cooling loop • Reduces initial startup for direct-to-chip cooling deployments • Integrated controller designed from the ground up to be easy to deploy and supports leak detection • Flexible support services available for installation and maintenance with same day options

Features

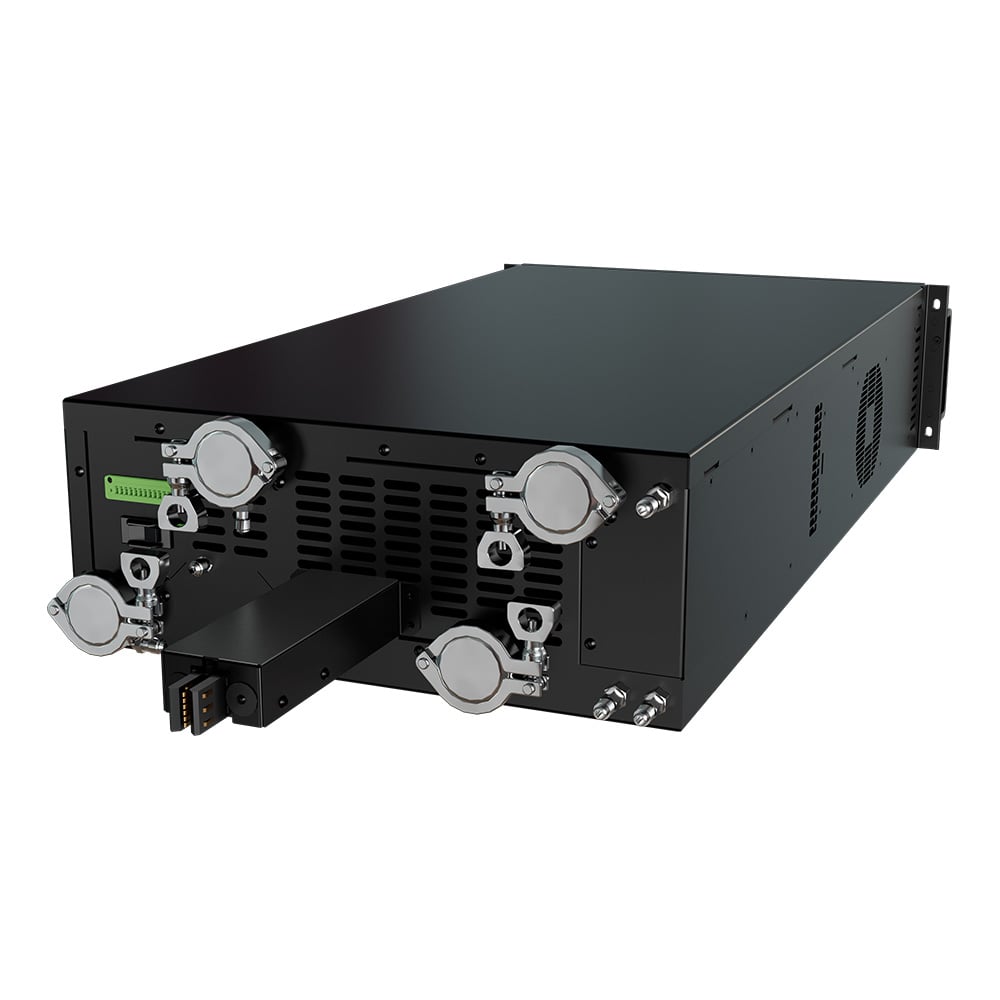

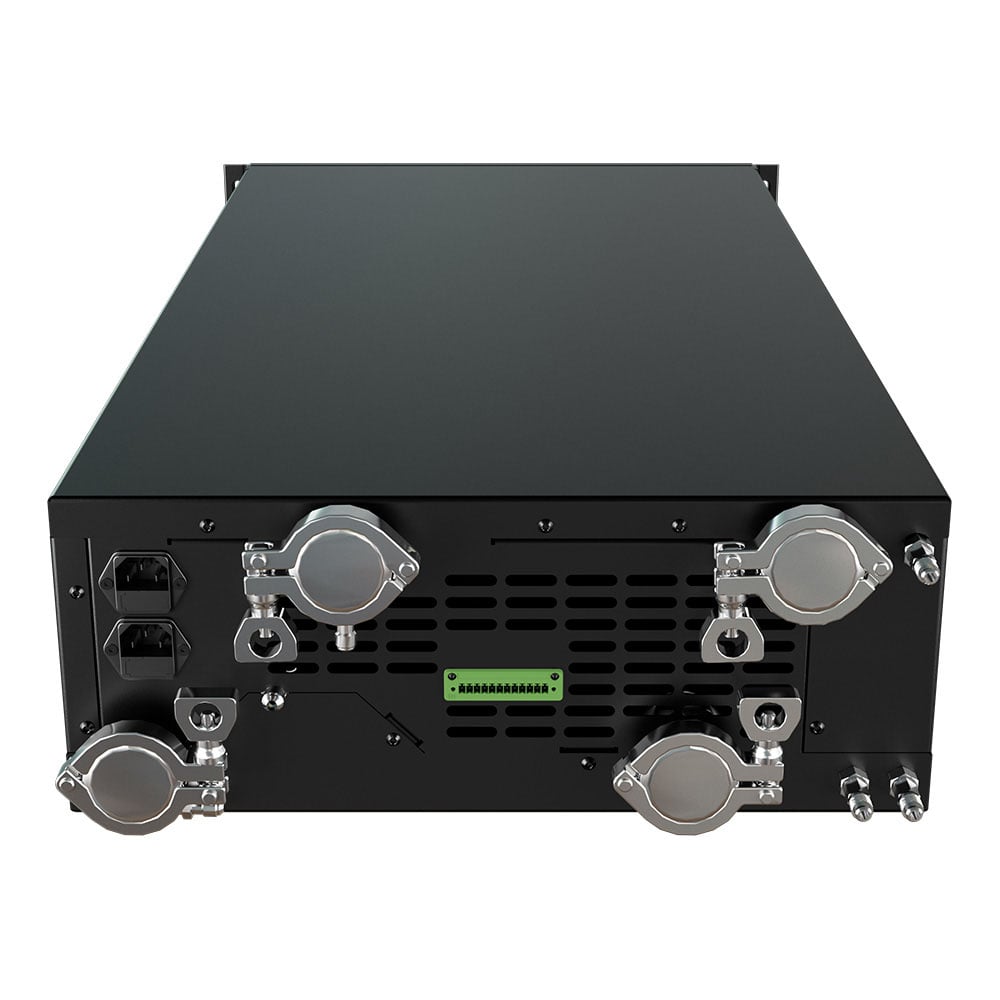

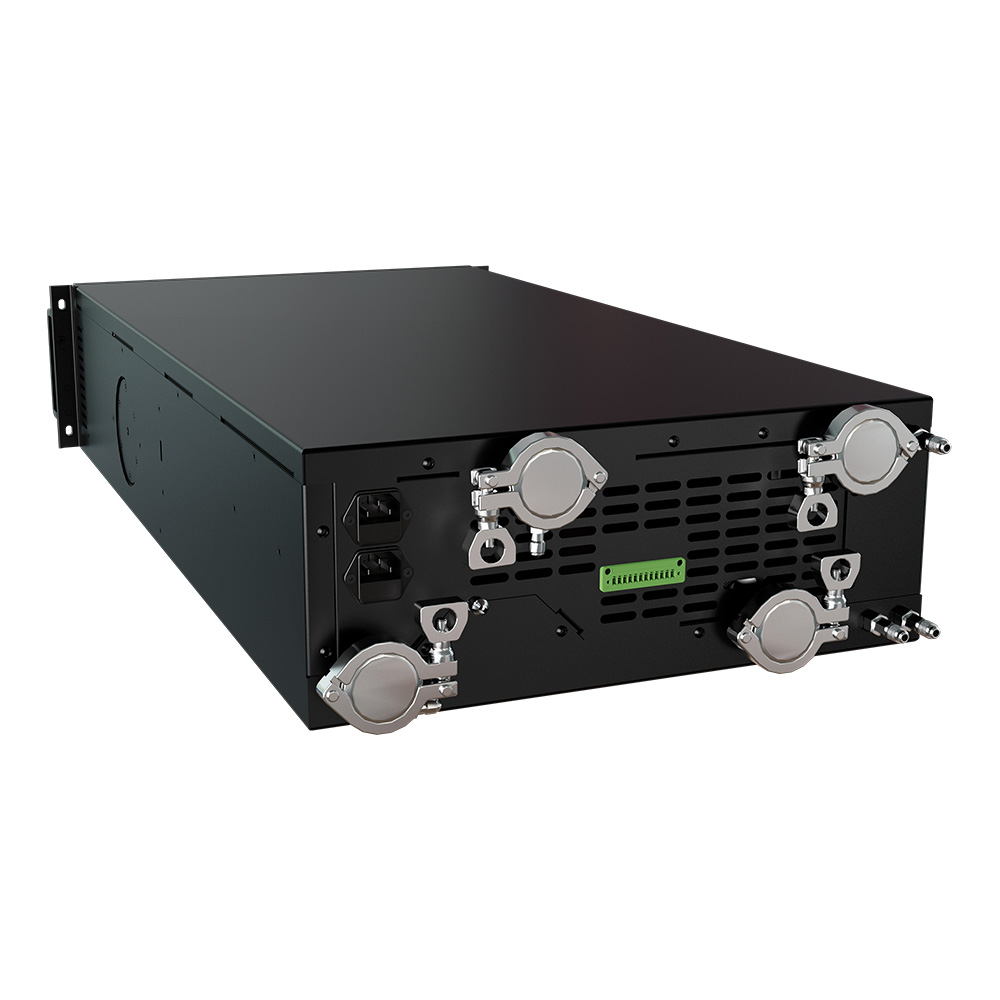

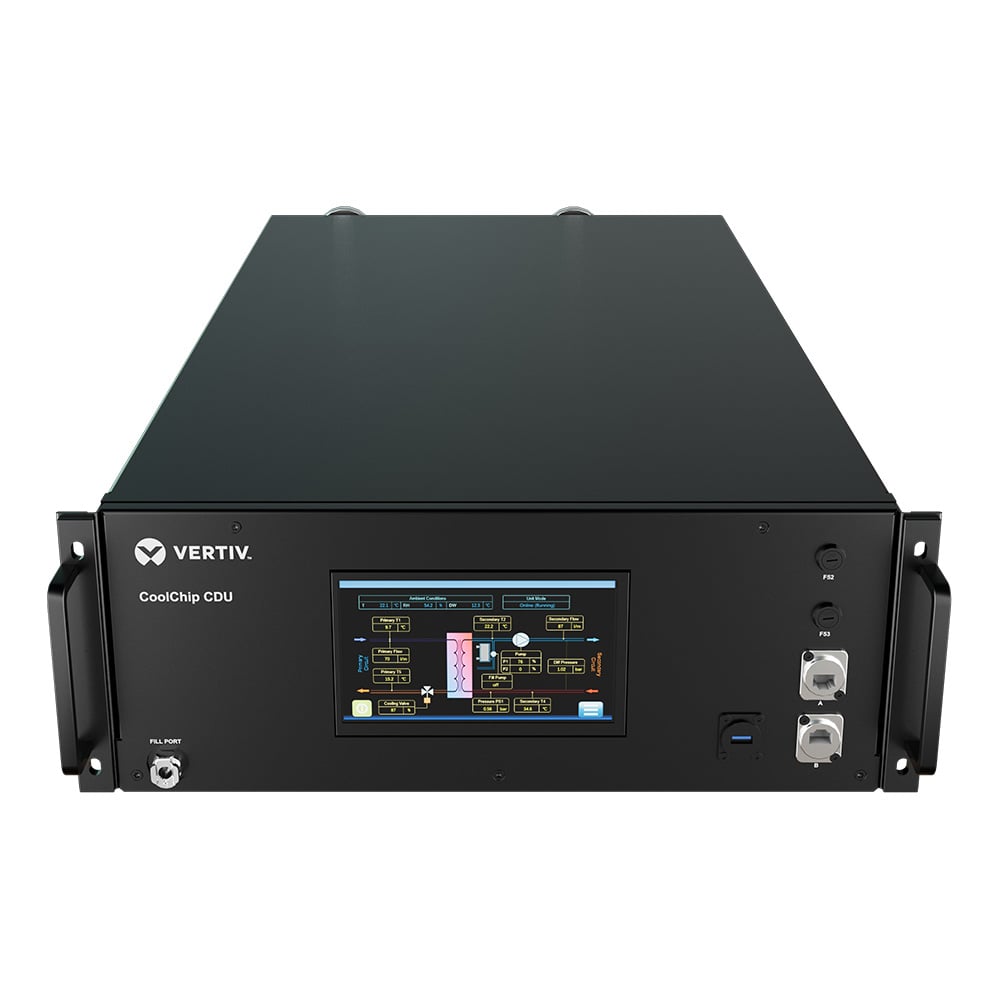

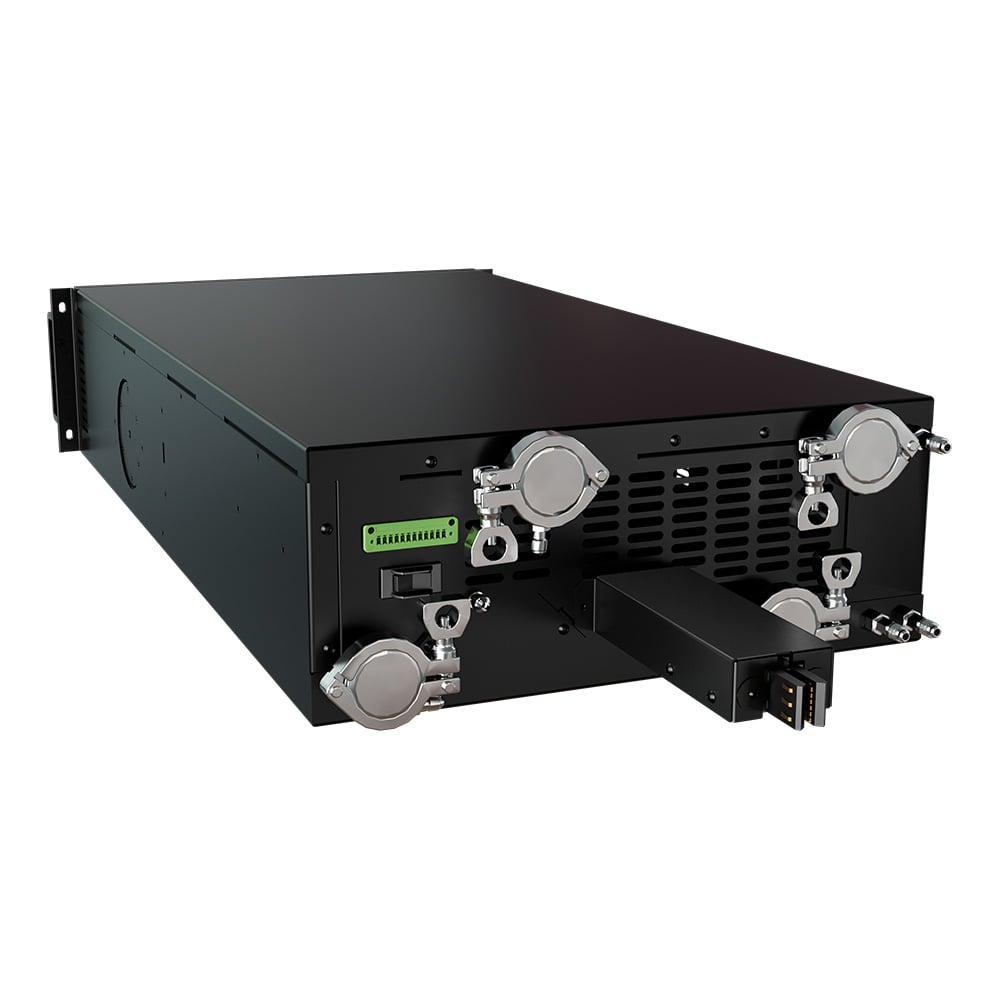

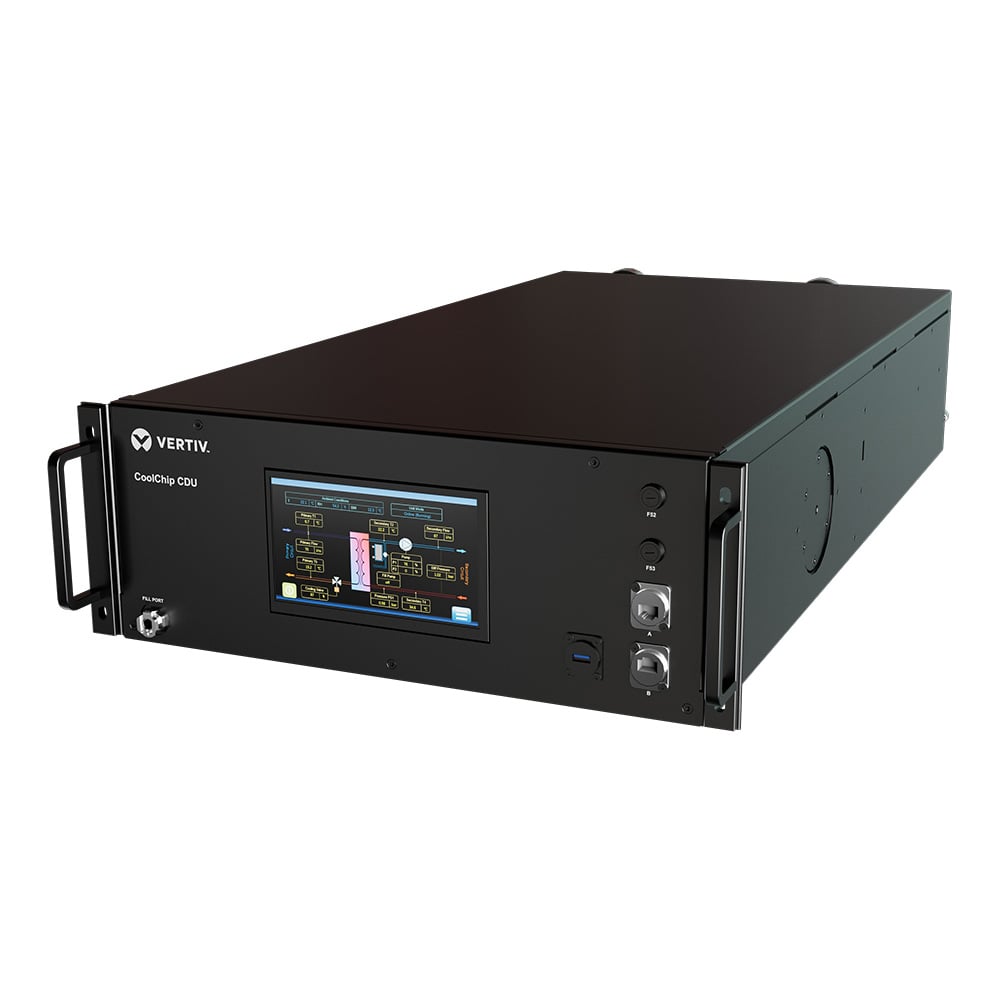

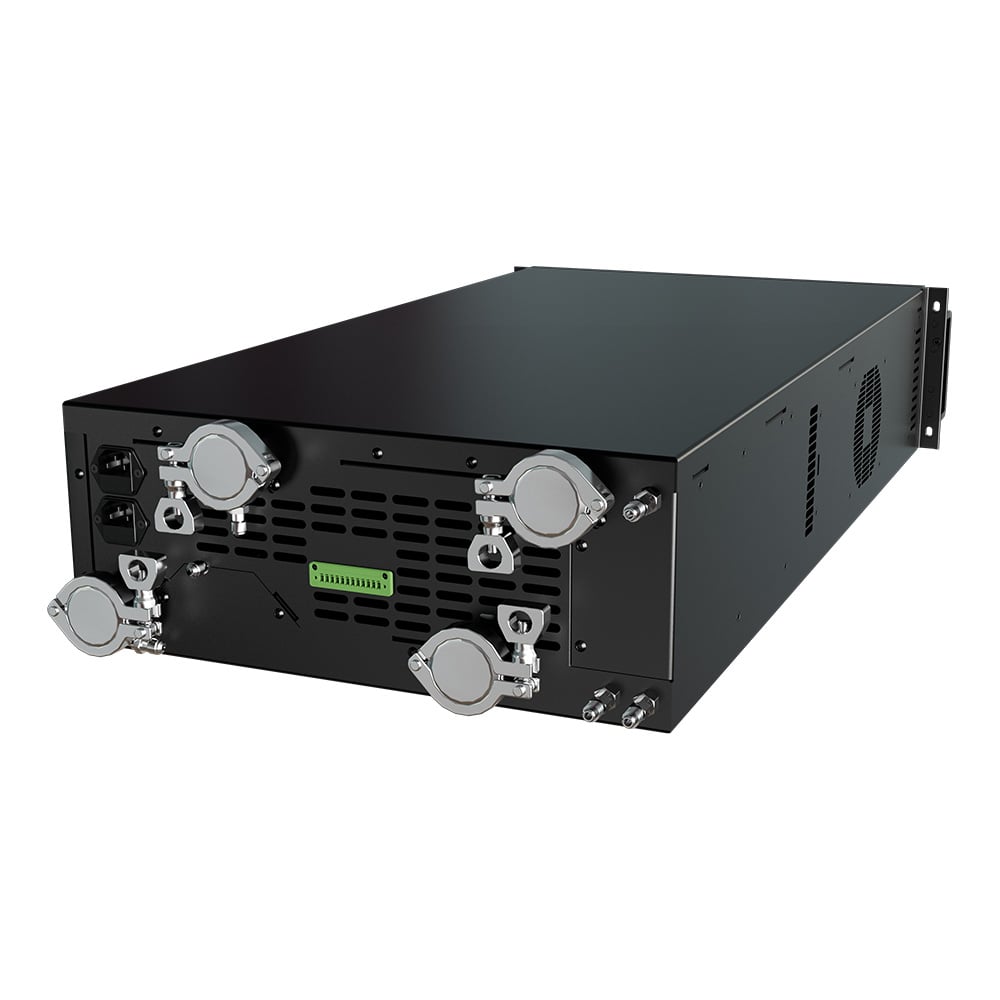

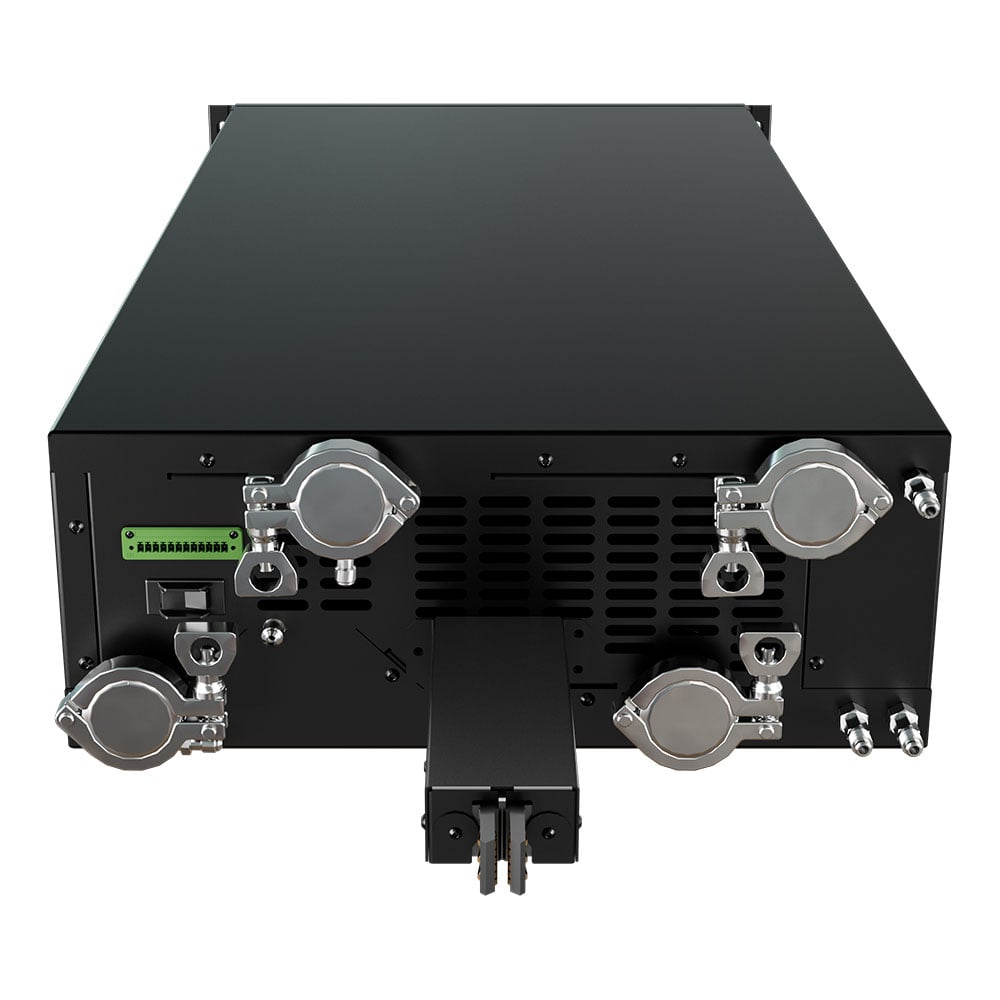

• Compact footprint allows for in-rack deployments • Rear liquid supply & return connections • Integrated 50 micron filter • Large 7" responsive color touch screen display • Precise Temperature Control to eliminate thermal shock for server CPU and GPUs • Intelligent flow monitoring with alarm features • Closed-loop pipe design with integrated leak detection • Easilly accessible fill port and drain locations • Innovative Stainless-Steel Design and Hygienic Couplings help ensure Secondary Fluid Network integrity

As data centers adopt liquid cooling, fitting in new coolant distribution infrastructure can be a real challenge. From hyperscale and colocation environments to edge applications, the Vertiv™ CoolChip CDU (the next generation of the Liebert® XDU family) simplifies your work with the flexibility to support rear door heat exchangers or direct to chip liquid cooling. The Vertiv CoolChip CDU’s compact footprint allows for in-rack, end of row, or perimeter placement options. However, and wherever you incorporate the Vertiv CoolChip CDU, you can easily distribute coolant to efficiently manage power-dense hot spots with liquid-to-liquid heat exchange up to 100 kw, 450 kW, 600 kW, or 1,350 KW, and liquid-to-air heat exchange up to 70kW. The Vertiv CoolChip CDU provides a compact footprint for deployment flexibility, efficient coolant distribution to manage power dense hot-spots, precise temperature control to eliminate thermal shock, redundant pumps and dual power feeds for reliable operation, and remote monitoring and communications for added peace of mind.

Vertiv™ CoolChip CDU, 100kW
Product Specifications
Net Sensible Nominal Capacity kBtuh[kW]*
101 kW at 7.2⁰F (4⁰C) approach temperature difference
Controls and Monitoring
Color touch screen display, Communication via Modbus RTU (RS485) and TCP/IP
Key Components
Redundant pump design, variable-speed pump controls, and integrated filtration
Physical Characteristics
Weight
130 lbs
Weight
59 kgs
Height
6.8 in; 4RU
Height
174 mm
Width
17.5 in
Width
445 mm
Depth
34.2 in
Depth
868 mm
