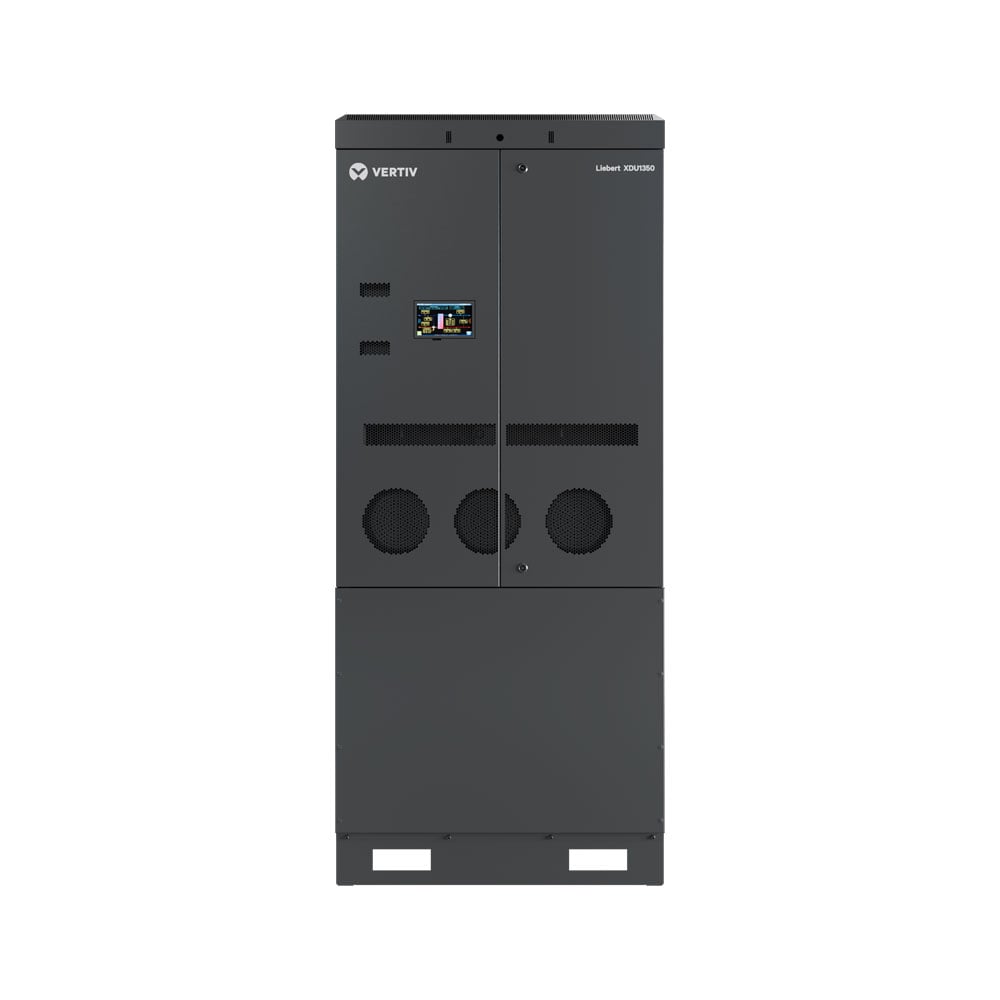

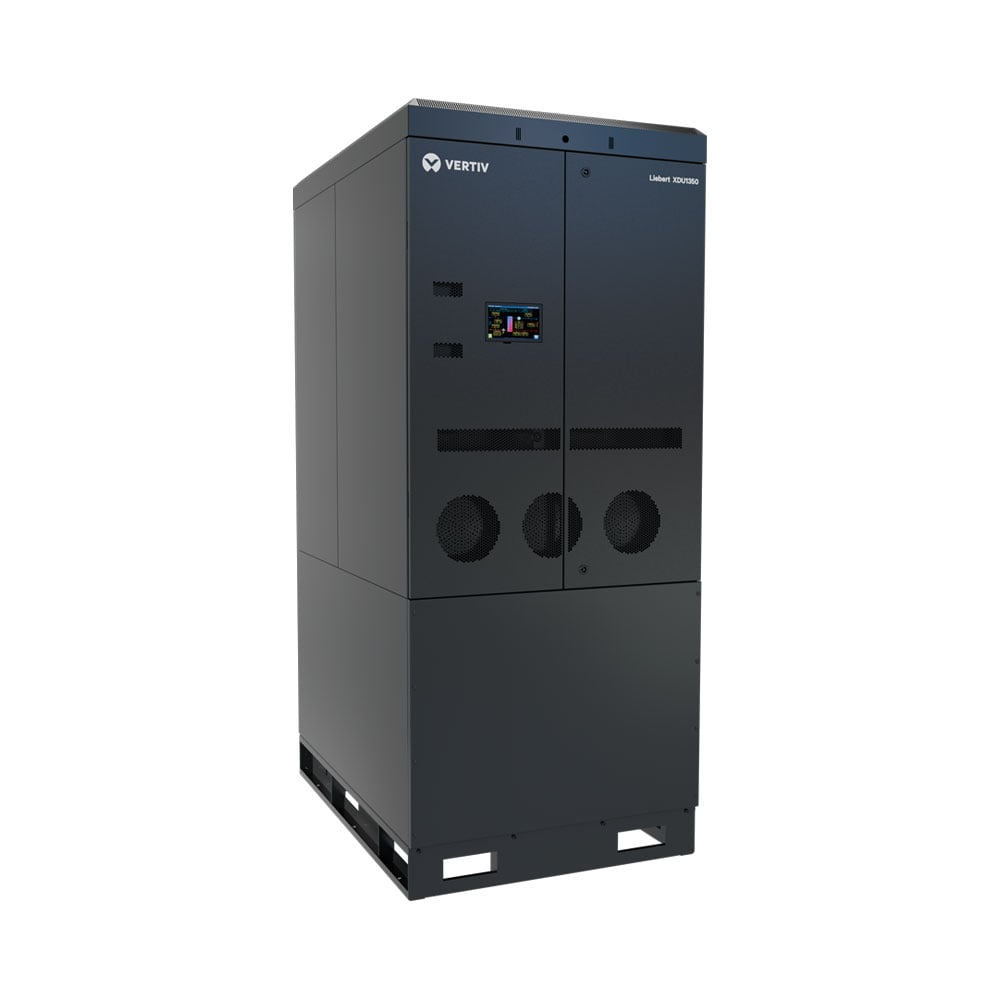

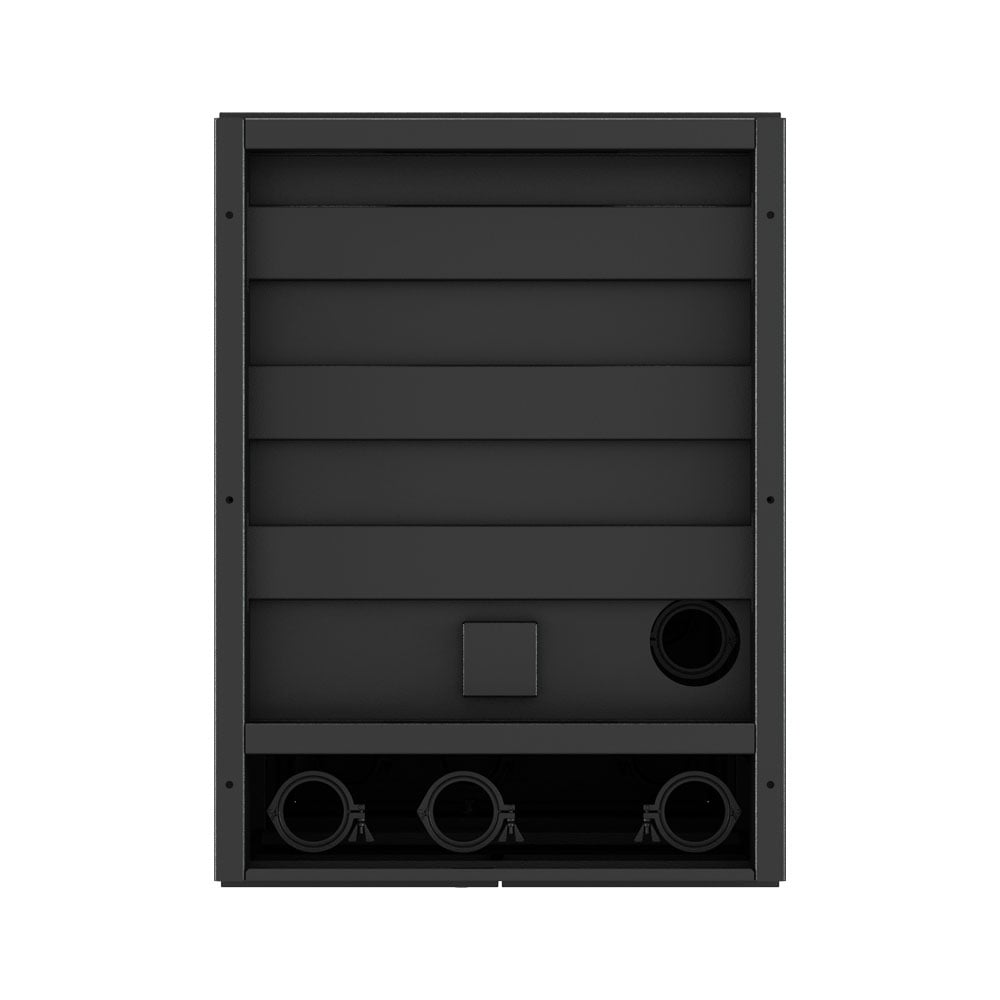

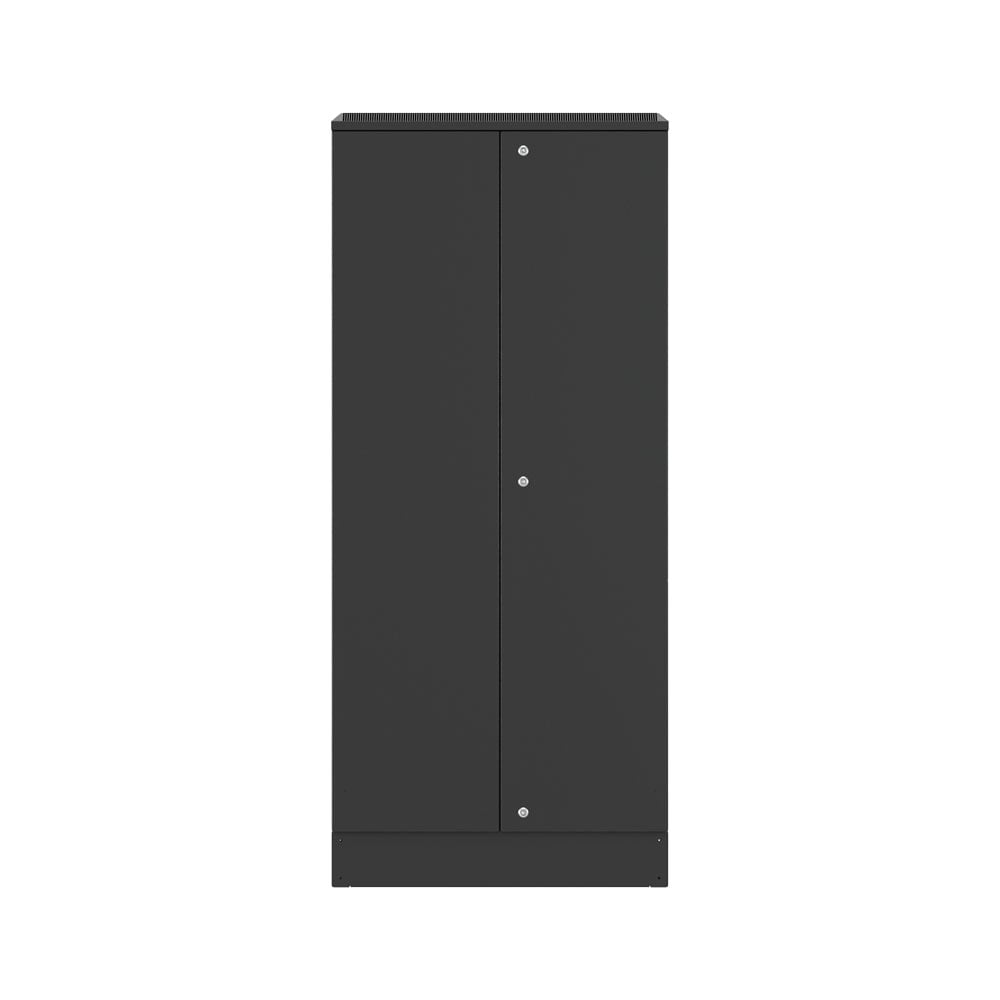

Liebert® XDU1350 Coolant Distribution Unit
The Vertiv™ Liebert® XDU1350 Coolant Distribution Unit is designed to support liquid cooling within high density environments. It is suitable for chip and rear door cooling applications. It offers easy, cost-effective deployment in any data center. It uses a liquid-to-liquid heat exchange method to efficiently support higher rack densities while maintaining optimal system conditions.
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Benefits
Features
Specifications

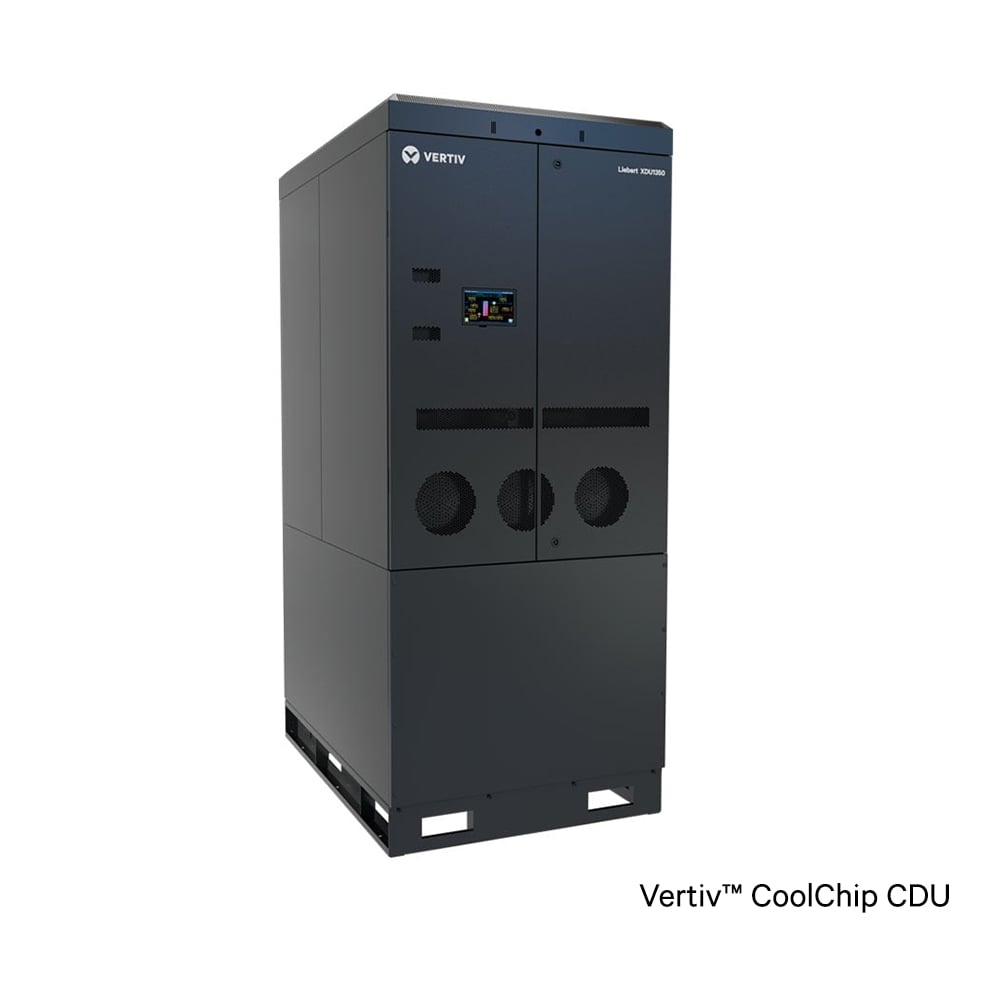

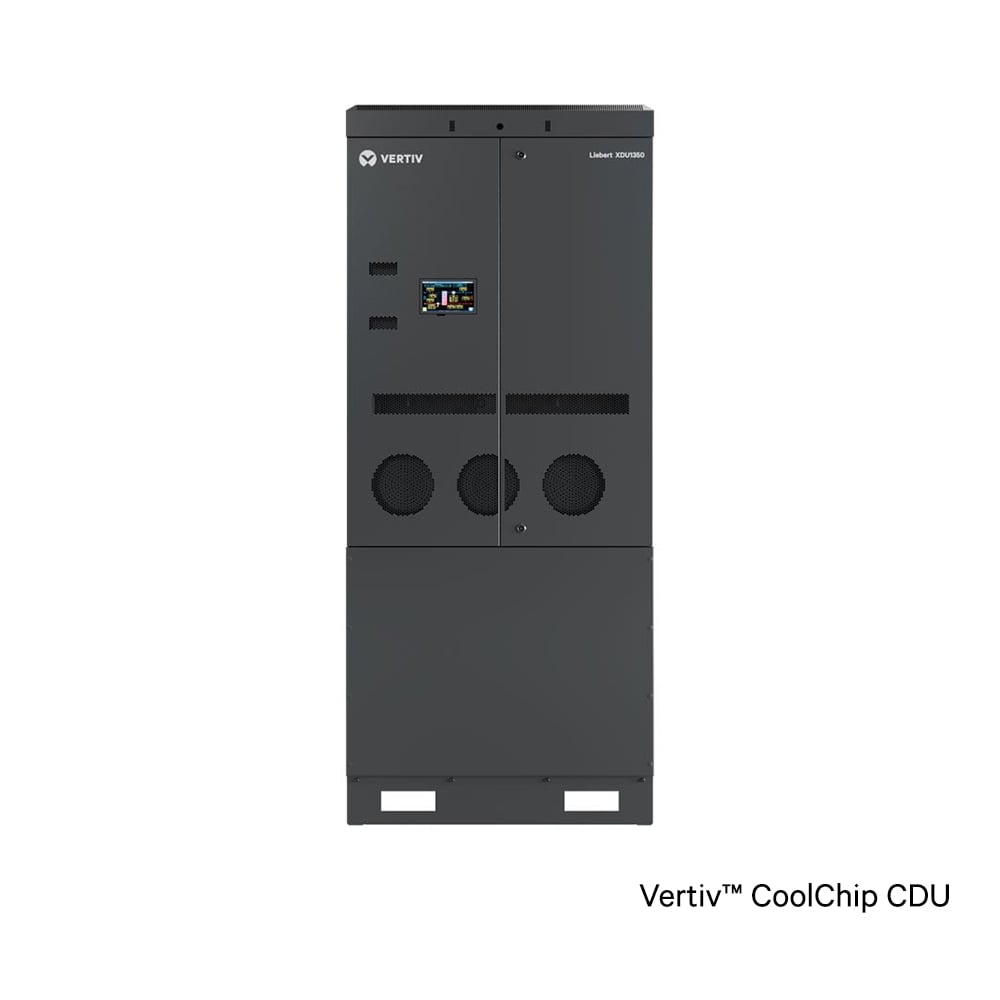

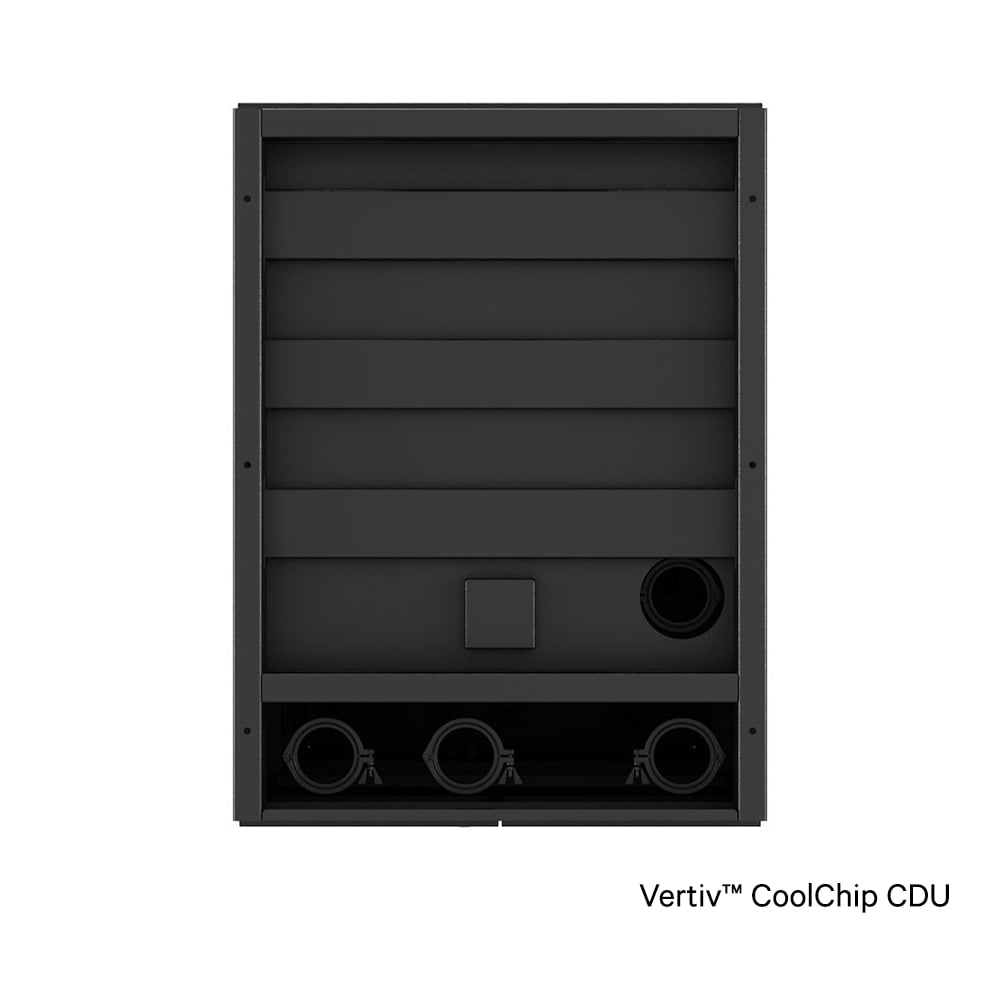

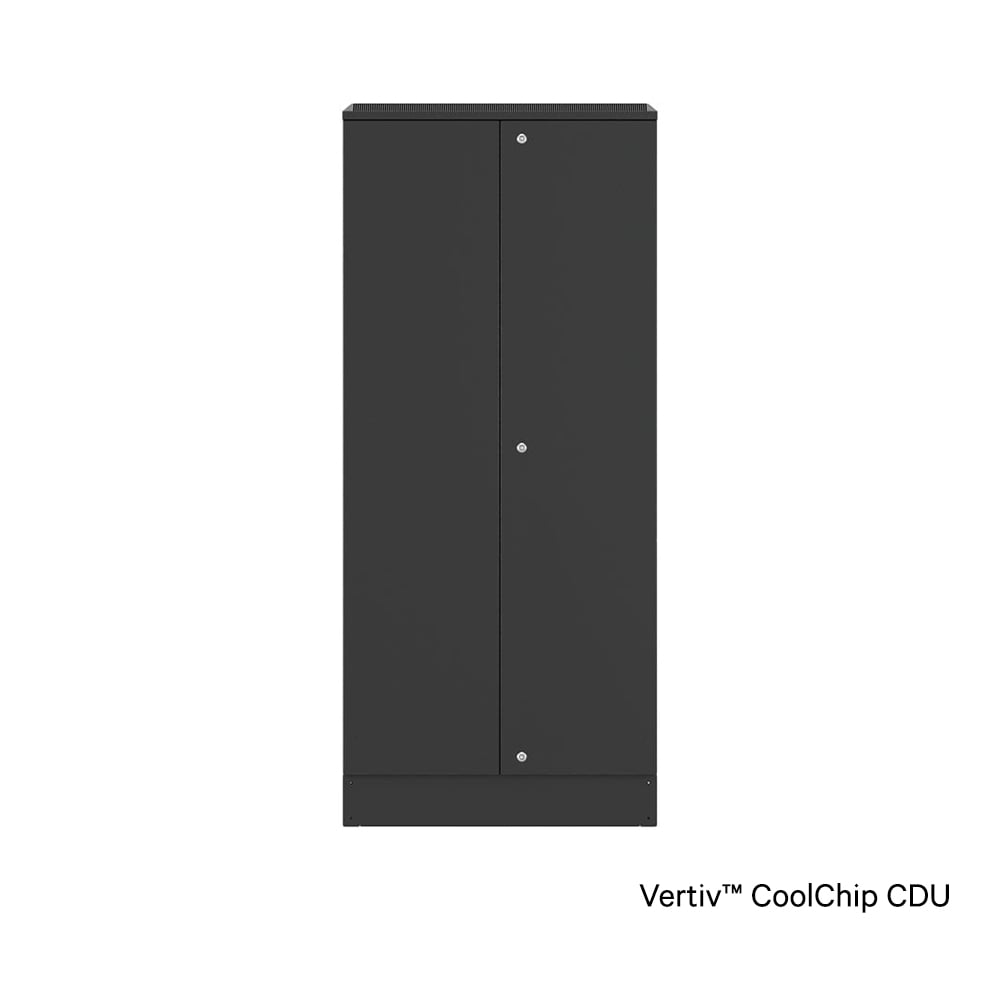

Seamlessly transition to high-efficiency liquid cooling technology with Vertiv™ CoolChip CDU (next generation of Vertiv™ Liebert® XDU family). From hyperscale and colocation environments to edge applications, the Vertiv CoolChip CDU offers flexible deployments for rear door heat exchangers or direct contact liquid cooling. It allows for in-rack, end of row, or perimeter placement options. Easily distribute coolant to efficiently manage power dense deployments with liquid-to-liquid heat exchange up to 100 kW, 450 kW, 600 kW, or 1,350 kW, and liquid-to-air heat exchange up to 70kW. With precise temperature control, this unit can eliminate thermal shock. Have reliable operations with its redundant pumps and dual power feeds and added peace of mind with remote monitoring and communications.
- Product Specifications
- Net Sensible Nominal Capacity kBtuh[kW]*
- 1368 kW at 7.2 F (4 C): Secondary Circuit flow rate at 320 GPM (1200 l/m) at 35.4 psi ( 2.44 bar) external ΔP
- Input Voltage (V/Phase/Frequency Hz)
- 480 V, 3PH, 60Hz
- Controls and Monitoring
- Color touch screen display
- Agency Approvals
- CE, cULus, RoHS
- Key Components
- Redundant pump design with variable-speed pump controls
- Physical Characteristics
- Weight
- 1431 lbs
- Weight
- 1509 kgs
- Height
- 684 in
- Height
- 2070 mm
- Width
- 35.4 in
- Width
- 900 mm
- Depth
- 48.9 in
- Depth
- 1242 mm
- Liebert® XDU1350 Coolant Distribution Unit Operation and Maintenance Manual (SL-70619)
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit Installation and Commissioning Guide XDU1350B SL-71308.pdf
- Liebert® XDU1350 Coolant Distribution Unit Installation and Commissioning Guide (SL-70625)
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit Operation and Maintenance Manual XDU1350B SL-71310.pdf
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit Application and Planning Guide XDU1350B SL-71309
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
