Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

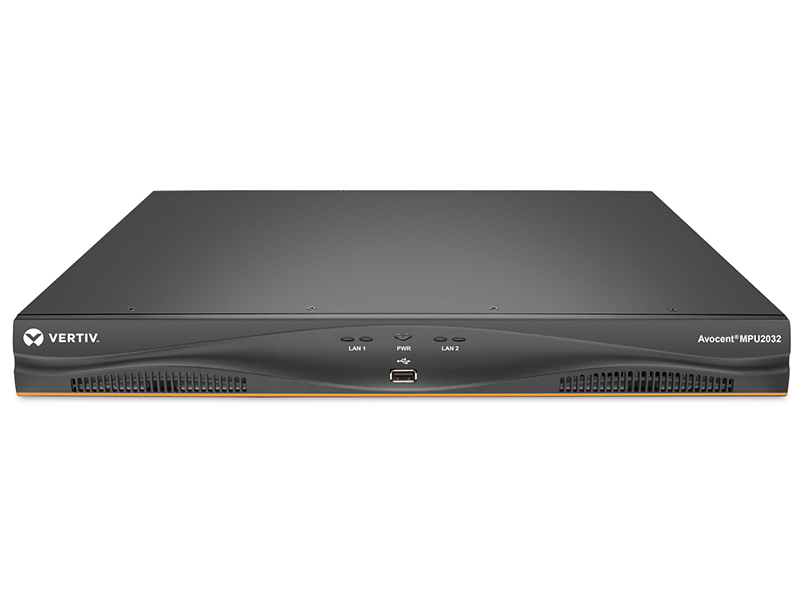

Avocent MPU2032DAC Digital KVM Switch
32-port, 2 digital KVM paths, dual AC power supply
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Model
Avocent MPU2032DAC Digital KVM Switch
32-port, 2 digital KVM paths, dual AC power supply
Warranty: 2 Year Full Coverage Factory Warranty - Optional Extended Warranty AvailableBenefits
• Improved remote management and staff efficiency
• Make connections to Cisco equipment quick and easy
• Improved physical security
• Local and remote browser interface for easy setup and use
• Centralized management for large deployments
Features
• Remote access to KVM, USB and serial connections
• Serial adaptors support SSH connections and the Cisco® pinout
• Virtual media enables remote USB connections and support for smartcard/CAC readers
• Built-in Web interface
• Managed with the Avocent DSView™ 4 management software
• FIPS 140-2 compliance: Based on the FIPS 140-2 validated cryptographic module(s) (Certificate #1051)
Specifications
The Avocent MergePoint Unity™ switch provides IT administrators a complete remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.
Avocent MPU2032DAC Digital KVM Switch
- Graphic Mode
- Internal Modem
- No
- Service Processor support
- No
- Extension Distance
- 50m
- Cellular Support
- No
- Interfaces/Ports
- Network Interface(s)
- (2) 10/100/1000 Ethernet
- USB ports
- 4
- USB Hub Support
- Yes
- Miscellaneous
- Other supported accessories
- Serial
- Authentication Supported
- Local, LDAP
- Agency Approvals
- UL, FCC, cUL, ICES003, CE, VCCI, KCC, C-Tick, GOST
- Operational Conditions
- Operating Temperature
- 32° to 22°F (0° to 50°C)
- Humidity
- 5 - 95% relative humidity 38.7°C max wet bulb temp
- Storage Temperature
- -4° to 158°F (-20° to 70°C)
- Physical Characteristics
- Weight
- 8.6lbs
- Weight
- 3.9 kgs
- Height
- 1.72 in
- Height
- 43.69 mm
- Width
- 17 in
- Width
- 431.8 mm
- Depth
- 13.38 in
- Depth
- 339.85 mm
- Power Description
- Power Supply(s)
- Single or dual power, internal, 100-240V
- Input Power (Maximum)
- 40W
