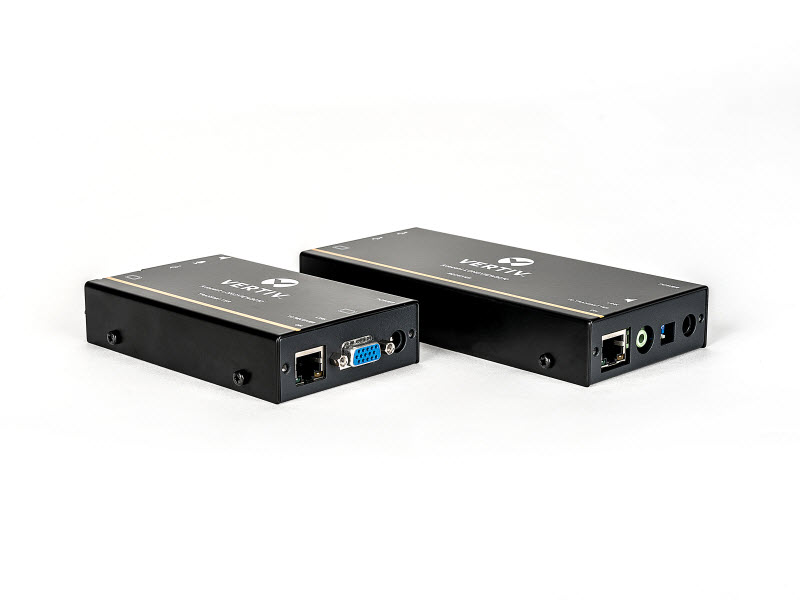

Avocent LV 3010P KVM Extender
Avocent LV extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
Avocent LV 3010P KVM Extender
Avocent LV extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
- Banking, Financial and Insurance
Benefits
Features
Specifications
The LV 3000 next generation USB, video and audio extenders delivers sharp, bright and high resolution video images and high quality audio for single and multi screen desktops at distances up to 300m (1000ft) over a single or multiple CATx cables. The LV 3000 series has been designed to provide industry-leading video clarity, compatibility and high rack densities.
- Product Overview
- Video Connection
- LV3010 Transmitter 1 x 15 Pin D Type VGA
- Video Resolution
- Up to1920x1200 @60Hz /1080p
- Interfaces/Ports
- USB ports
- 1 x USB type B
- USB Hub Support
- USB 1.1 and USB 2.0
- Miscellaneous
- Agency Approvals
- CE, FCC, UL
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Physical Characteristics
- Weight
- .95 lbs
- Weight
- .43 kgs
- Height
- 3 in
- Height
- 75 mm
- Width
- 6.4 in
- Width
- 162 mm
- Depth
- 1 in
- Depth
- 26 mm
- Power Description
- Power Supply(s)
- 1 x Power Supply
- Input Power (Maximum)
- 5V
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
