Vertiv™ Liebert® APM2 UL UPS, 10-600kW
Introducing a next-generation modular and transformerless UPS design, Vertiv™ Liebert® APM2, a feature-rich high-density UPS that brings exceptional and innovative features for mission-critical applications. Powered by latest generation three-level IGBT topology in conjunction with Silicon Carbide converter, it delivers an extraordinary double conversion efficiency of up to 97.5% that ensures remarkable operational cost savings, reducing both the Total Cost of Ownership (TCO) and the environmental impact.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Vertiv™ Liebert® APM2 UL UPS, 10-600kW
Introducing a next-generation modular and transformerless UPS design, Vertiv™ Liebert® APM2, a feature-rich high-density UPS that brings exceptional and innovative features for mission-critical applications. Powered by latest generation three-level IGBT topology in conjunction with Silicon Carbide converter, it delivers an extraordinary double conversion efficiency of up to 97.5% that ensures remarkable operational cost savings, reducing both the Total Cost of Ownership (TCO) and the environmental impact.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Specifications
The Liebert® APM2 UPS is based on a reliable, double conversion power topology that uses an efficient transformer-free design. Excellent efficiencies of 97.5% are generated and can be enhanced to 99% using our unique Eco Mode. A unity power factor delivers more capacity in a smaller footprint. Available in fixed capacity or as a scalable, redundant configuration from 10-150kVA/kW in 208V and 20-600kVA/kW in 480/415V, each utilizes a modular construction design with optimized ancillary cabinets designed to save the customer footprint and cost. The new touchscreen control panel ensures Status At-A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Vertiv™ Power Insight as well as 3rd party BMS and DCIM systems. Vertiv™ LIFE Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.
|
Liebert® APM2 UL UPS 208V
|
||||||
|---|---|---|---|---|---|---|
| 10-150kVA | 208V Input | 208V Output | 99% Efficiency | 78.7 in | 23.6 in | 40.5 in |
| See more product information | ||||||
|
Liebert® APM2 UL UPS 480V/415V
|
||||||
| 20-600kVA/kW | 480V/415V Input | 480V/415V Output | 99% Efficiency | 78.7 in | 23.6-39.4 | 40.5 in |
| See more product information |

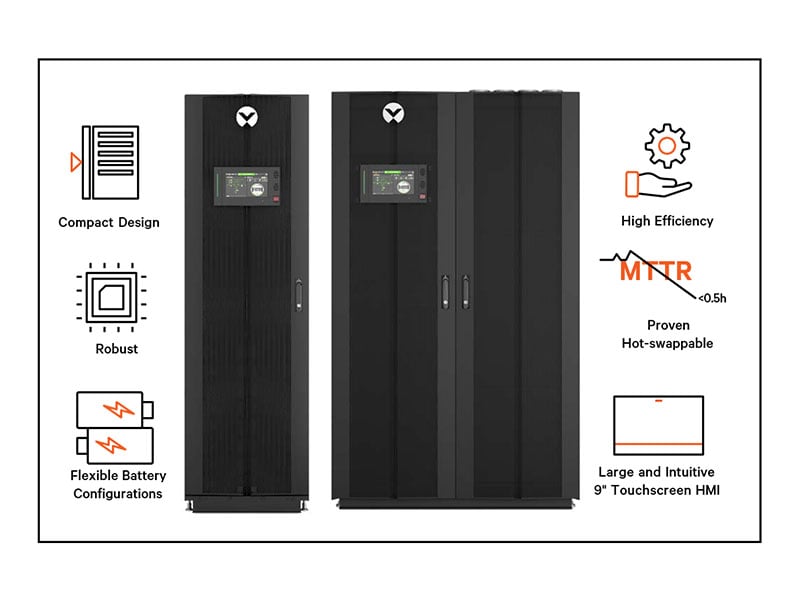

Benefits
Features
- Vertiv™ Liebert® APM2 UL Lithium Battery Module User Guide SL-71173
- Vertiv™ Liebert® APM2 UL Modular UPS 10-60kVA, 208V and 20-120kVA, 480V User Manual SL-71938
- Vertiv™ Liebert® APM2 UL Modular UPS 60-150kVA, 208V and 60-600kVA, 480V User Manual SL-71948
- Vertiv™ Liebert® APM2 UL Modular External Battery Cabinet User Manual SL-71373
- Vertiv™ Liebert® APM2 UL External Battery Cabinet User Manual SL-71958
- Vertiv™ Liebert® APM2 UL UPS 60-150kVA 208V, 60-300kVA 480V, 60-600kVA 480V Guide Specifications SL-71949
- V-APM2-10-120kVA-EE.pdf
- V-APM2_10-120kVA-EE.rfa
- V-APM2-60-300kVA-EE.rfa
- Vertiv™ Liebert® APM2 UL Modular UPS 10-60kVA 208V and 20-120kVA 480V Guide Specifications SL-71375
- V-APM2-60-600kVA-EE.pdf
- V-APM2-60-600kVA-EE.rfa
- V-APM2-60-300kVA-EE.pdf
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
