Product Model

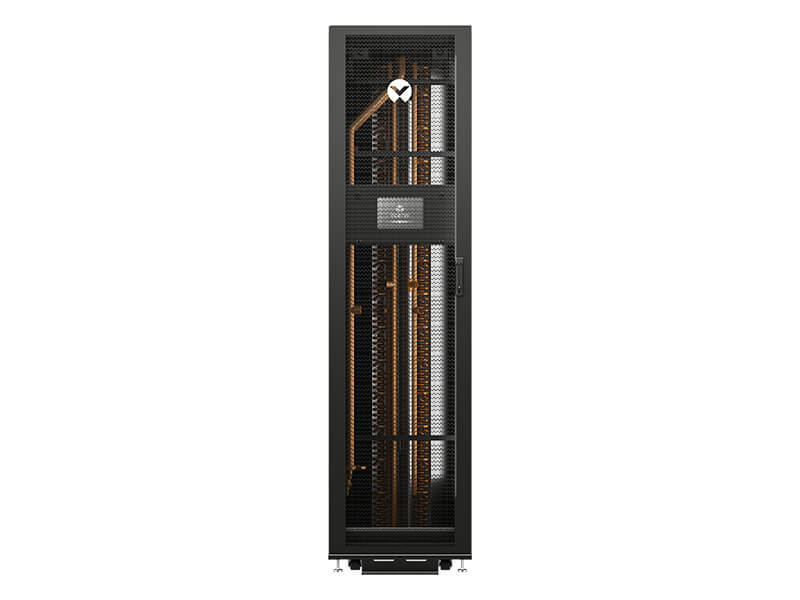

Vertiv™ Liebert® XDU070 Coolant Distribution Unit

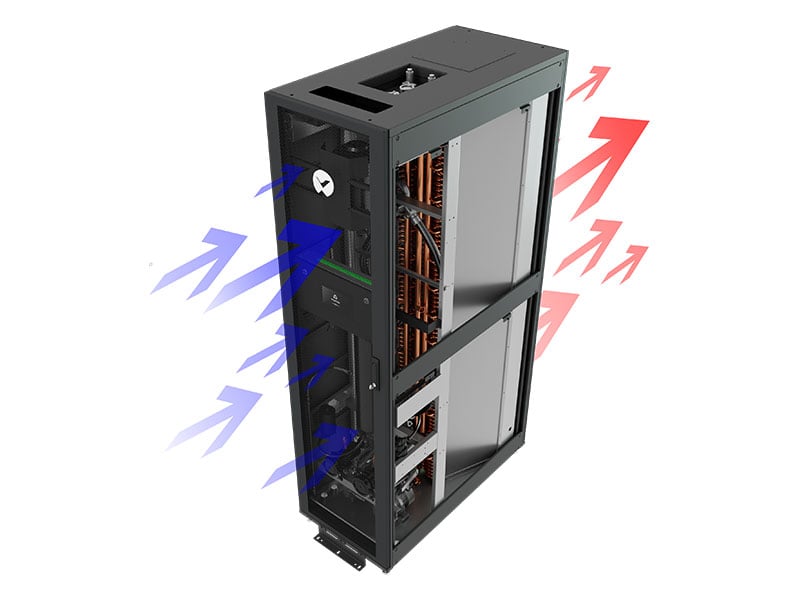

Designed to remove barriers to liquid cooling in an air-cooled environment the Vertiv™ Liebert® XDU070 Coolant Distribution Unit is a liquid-to-air heat exchanger for direct to chip cooling applications that offers easy, cost-effective deployment in any data center. The Liebert® XDU070 operates without facility chilled water and provides an isolated secondary fluid network, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.

Get Brochure Get Manual
Key Benefits
Deploy liquid cooling with or without access to chilled water on site
Deliver exceptional direct-to-chip cooling capacity with up to 70+ kW to accommodate high density racks
Utilize existing air-cooling infrastructure while supporting liquid cooling applications
High quality and reliability with redundant pumps, built-in filtration, and unit-to-unit communication capabilities
Best Suited For:
  • Data Center/Colocation/Hosting
  • Education
  • Healthcare
  • Government
  • Retail and Wholesale

Benefits

Achieve incredible efficiency in high-density environments
Protects secondary liquid network with strict conformance to wetted material compatibility
Intuitively designed for ease of deployment
Accomodates any facility design and with multiple cooling configurations
Rebust design with confidence inspiring redundancy options including teaming for the most demanding applications
Integrated controller designed from the ground up to be easy to deploy and supports leak detection
Flexible support services available for installation and maintenance with same day options

Features

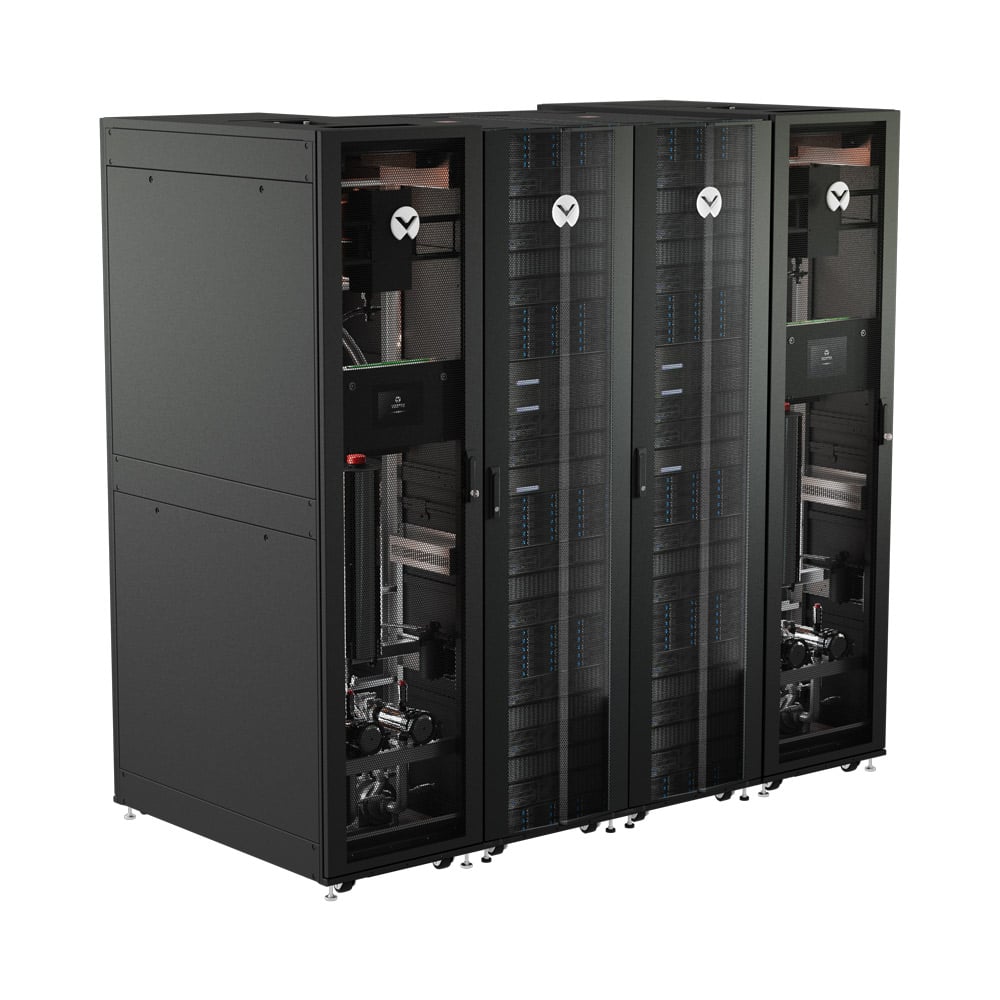

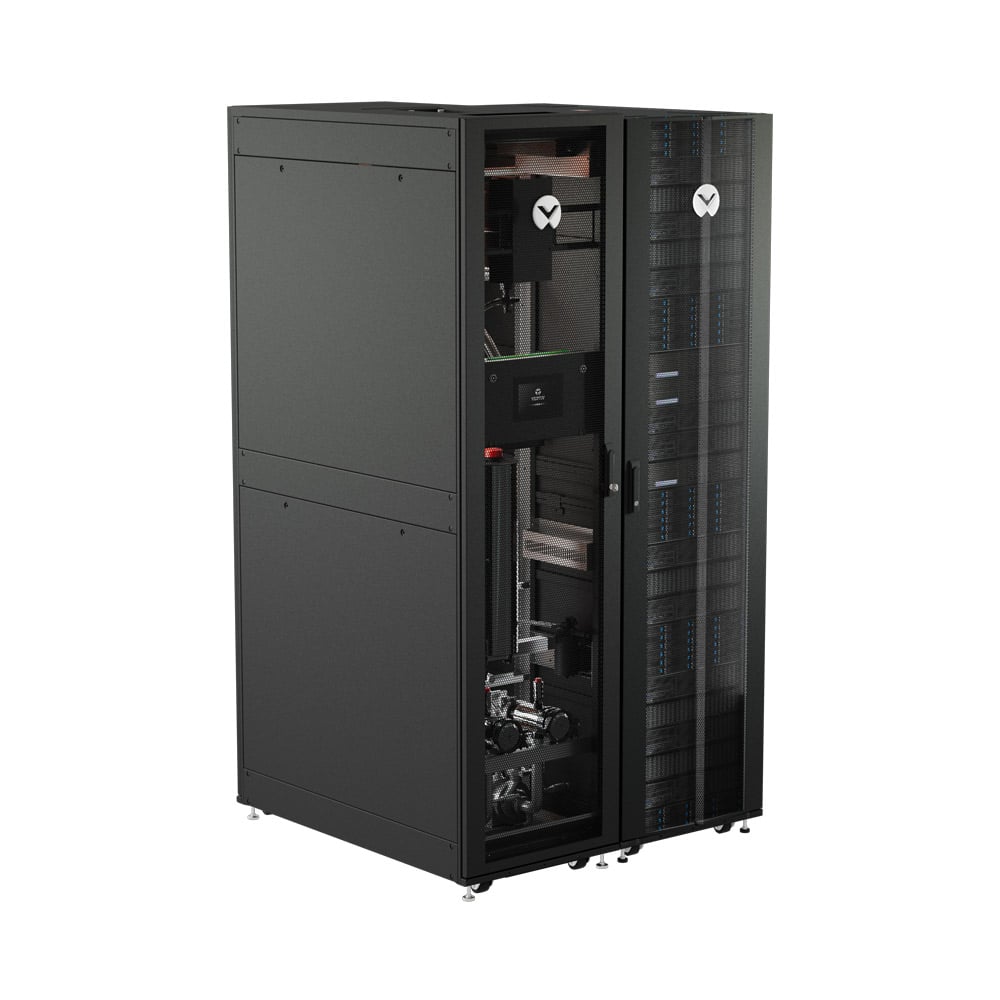

Compact footprint allows for in-row deployments
Top or bottom liquid supply & return connections
Integrated 50 micron filter

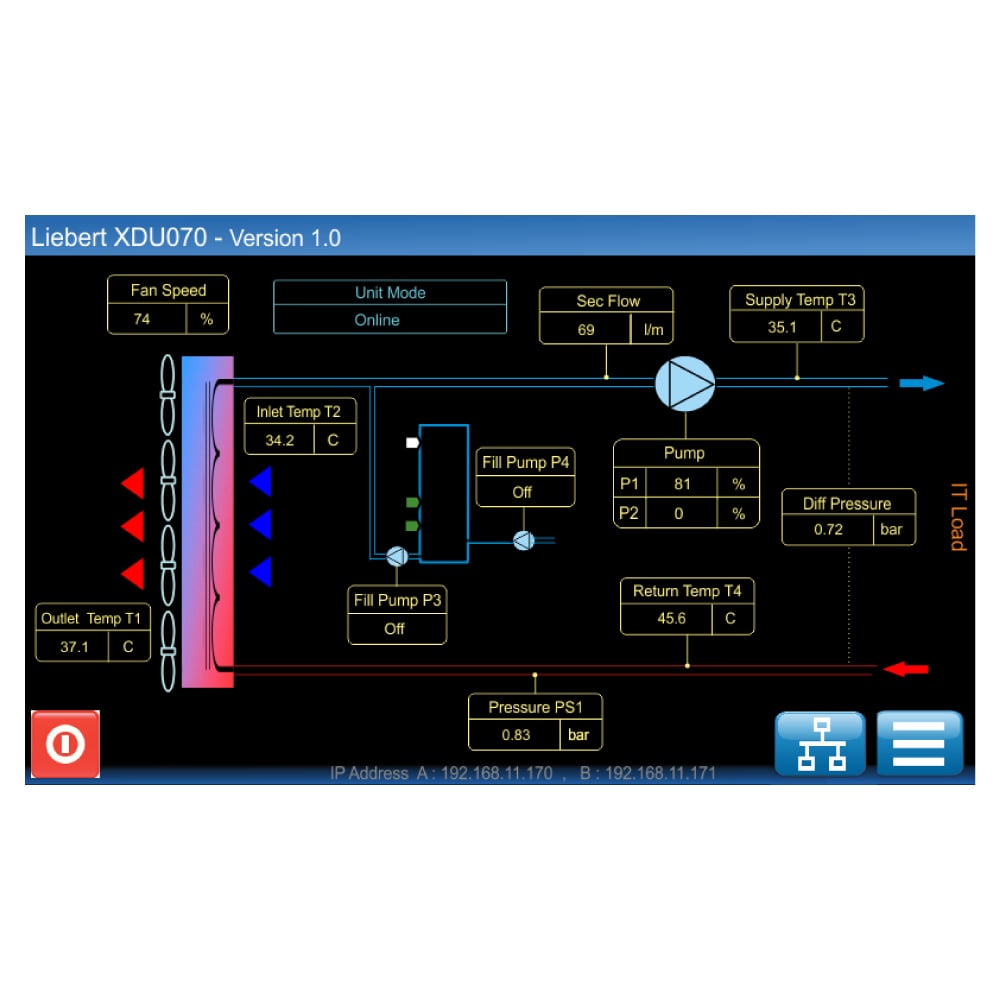

Large 7" responsive color touch screen display

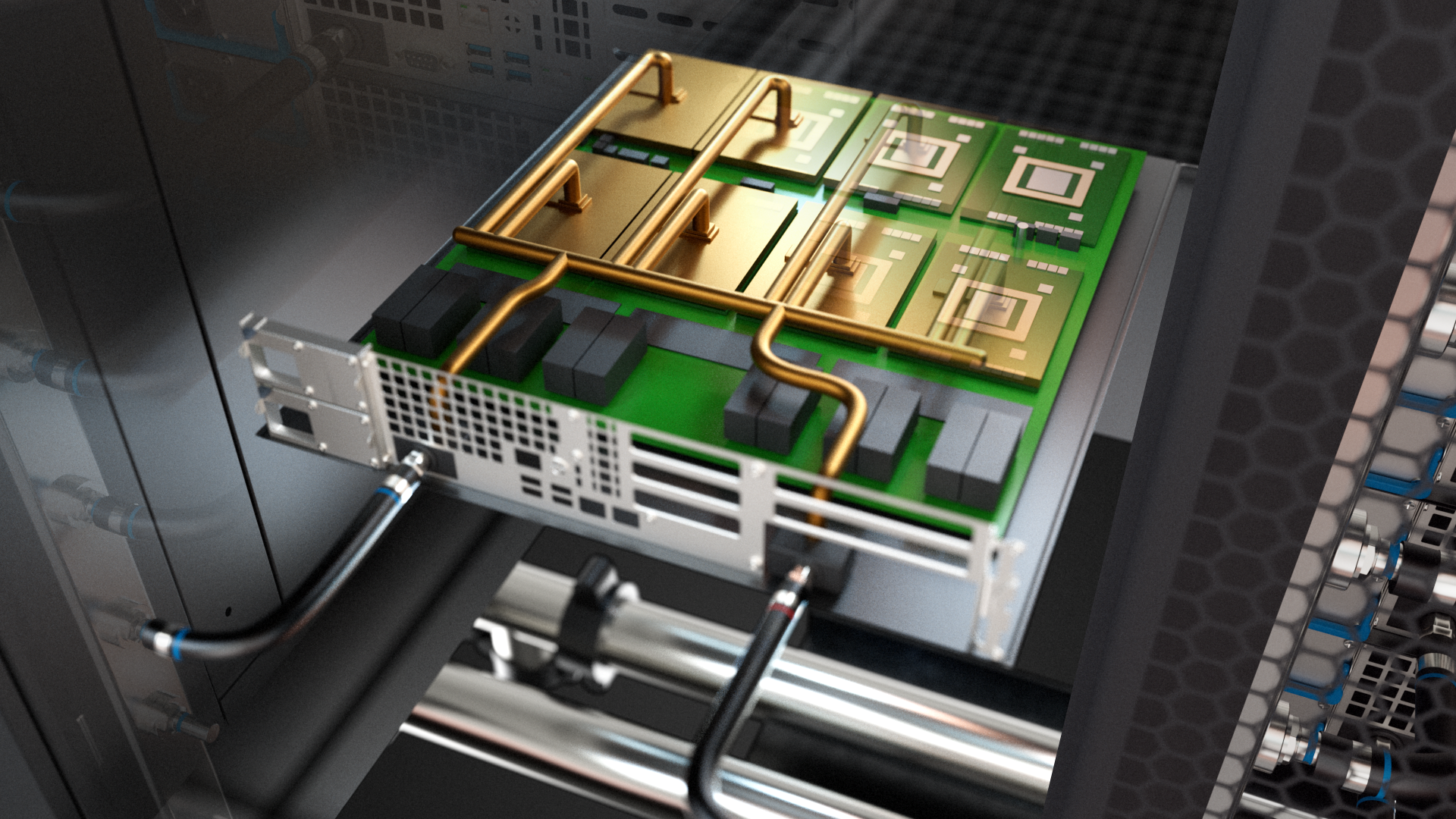

Precise Temperature Control to eliminate thermal shock for server CPU and GPUs
Intelligent flow monitoring with alarm features
Closed-loop pipe design with integrated leak detection
Easilly accessible fill port and drain locations
Innovative Stainless-Steel Design and Hygienic Couplings help ensure Secondary Fluid Network integrity

As data centers adopt liquid cooling, fitting in new cooling distribution infrastructure can be a real challenge. From hyperscale and colocation environments to edge applications, the Vertiv™ XDU simplifies your work with the flexibility to support rear door heat exchangers or direct contact liquid cooling. The Vertiv XDU’s compact footprint allows for end of row or perimeter placement. However, and wherever you incorporate the Vertiv XDU, you can easily distribute coolant to efficiently manage power-dense hot spots liquid to liquid up to 450 kW or 1,368 KW. Compact footprint for deployment flexibility within the row or perimeter; Efficient Cooling Distribution to manage power-dense hot spots and up to 450 kW or 1,368 kW; Precise Temperature Control to eliminate thermal shock for server CPU and GPUs; Redundant Pumps and Dual Power Feeds for optimizing reliable operation; Remote Monitoring available through communications with HTTP, SNMP, RS-485 Modbus, Modbus IP.

Vertiv™ Liebert® XDU070 Coolant Distribution Unit
Product Specifications
Net Sensible Nominal Capacity kBtuh[kW]*
70.0 kW at 11C approach temperature difference
Nominal Airflow Data Center Air (CFM, m3/H)
10,100 m3/h (5,945 CFM)
Controls and Monitoring
Color touch screen display, Communication via Modbus RTU (RS485) and TCP/IP
Key Components
Redundant pump design, variable-speed pump controls, and electronically commutated (EC) fans
Physical Characteristics
Weight
899 lbs
Weight
408 kg
Height
91 in
Height
2300mm
Width
24 in
Width
600 mm
Depth
48 in
Depth
1200 mm
