Vertiv™ Liebert® EXL S1 UPS
The Liebert® EXL S1 is a monolithic, transformer-free UPS that features optimized, industry leading footprint and power per square foot, excellent operating efficiency, robust electrical protection and intelligent paralleling that optimizes performance at partial load to achieve superior cost savings. Available in single module and distributed bypass configurations. Compatible with lithium ion battery systems. EXL S1 features safe capacity testing mode. This mode allows UPS load and battery discharge testing without an external load bank.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Government

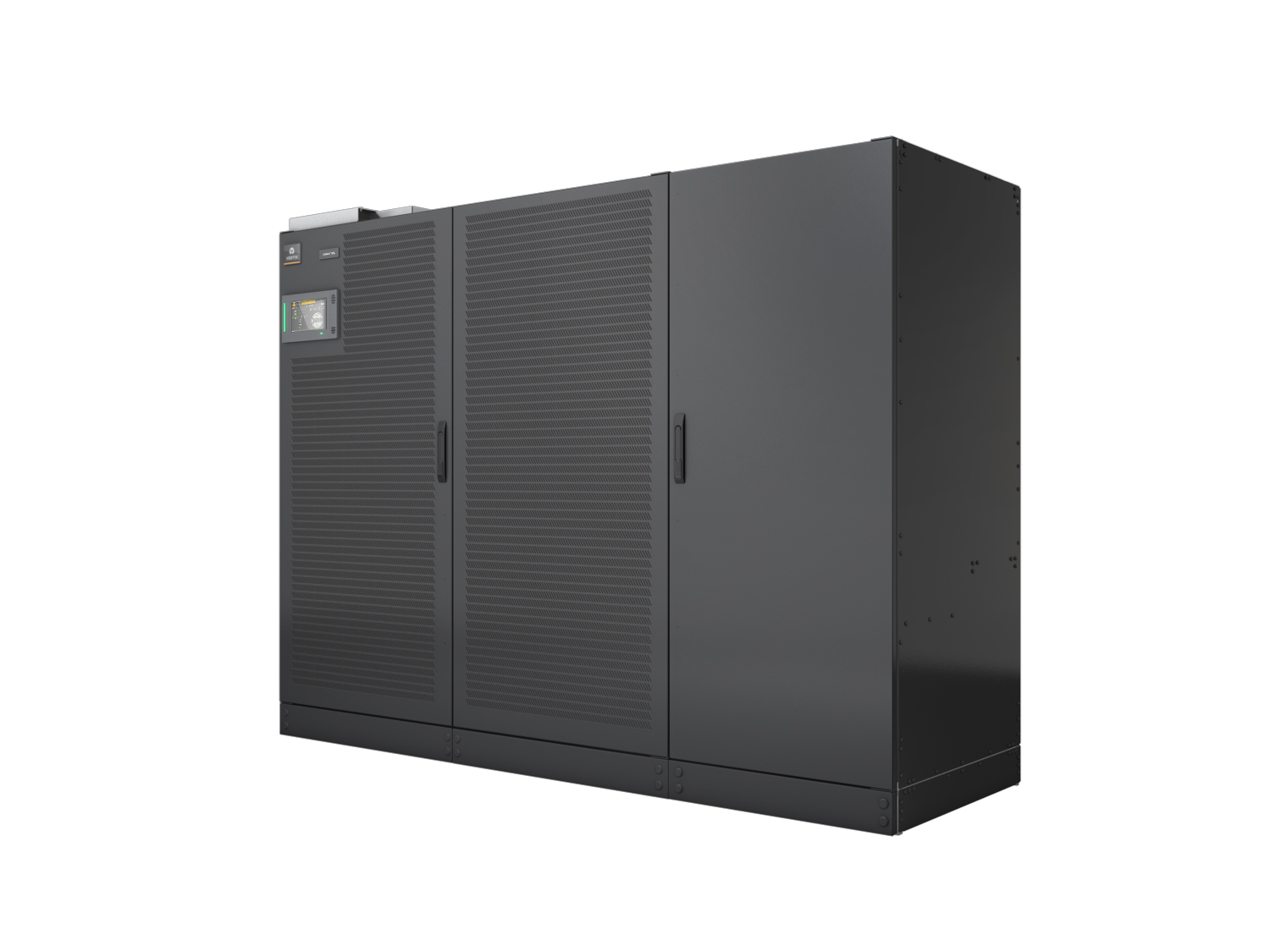

Vertiv™ Liebert® EXL S1 UPS
The Liebert® EXL S1 is a monolithic, transformer-free UPS that features optimized, industry leading footprint and power per square foot, excellent operating efficiency, robust electrical protection and intelligent paralleling that optimizes performance at partial load to achieve superior cost savings. Available in single module and distributed bypass configurations. Compatible with lithium ion battery systems. EXL S1 features safe capacity testing mode. This mode allows UPS load and battery discharge testing without an external load bank.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Government
Specifications
The Vertiv™ Liebert® EXL S1 UPS is available in 250-1200 kVA ratings and is optimized for maximum efficiency and power density. It offers the smallest footprint available for its kVA size range and is up to 60% smaller than some competitors. It is also significantly smaller than similar class UPS systems. For the conscientious buyer who needs every square foot to offer a positive ROI, such as for colocation providers, hosting and cloud businesses, the Liebert® EXL S1 UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. Plus, the new Dynamic Online mode enables operating efficiency up to 99% without sacrificing availability. While in this mode, the inverter can instantaneously assume the load and maintain the output voltage within the IEC 62040 Class 1 specification, thus offering the same level of availability typically achieved in a double conversion operating mode. The new touchscreen control panel ensures Status At A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Liebert® Nform, Liebert® SiteScan™ and the Liebert® Trellis™ Platform as well as 3rd party BMS and DCIM systems. LIFE™ Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs. The Liebert® EXL S1 UPS is fully compatible with the lithium ion battery solutions offered by Vertiv.
|
Liebert® EXL S1 250-400 kVA/kW
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 250, 300, 400 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 51.3 in | 36.0 in | 1970 lbs |
| See more product information | ||||||||
|
Liebert® EXL S1 500-600 kVA/kW
|
||||||||
| 500, 600 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 63.0 in | 36.0 in | 2750 lbs |
| See more product information | ||||||||
|
Liebert® EXL S1 UPS 625-800 kVA
|
||||||||
| 625, 750, 800 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 78.8 in | 36.0 in | 3508 lbs |
| See more product information | ||||||||
|
Liebert® EXL S1 1000-1200 kVA/kW
|
||||||||
| 1000, 1100, 1200 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 104.5 in | 36.0 in | 4667 lbs |
| See more product information |
Benefits
Features
- Liebert EXL S1 Touchscreen Control Panel User Manual
- Liebert Load Bus Sync Controller Installer User Guide for Liebert EXL S1 UPS SL-70438
- Liebert® Large System 3-Phase UPS Battery System Installation Manual (SL-25418)
- Liebert® Battery Interface Box Product Specs-Installation Sheet (SL-25515)
- Liebert® EXL S1 UPS Operation & Maintenance Manual - Single & Multi-Module SL-26090
- Vertiv™ Liebert® EXL S1 UPS 250kVA-1200kVA Installer GuideSL-26091
- Experience the Interactive Tool
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Frequently Asked Questions
- Q
- Is this UPS configurable?
- A
- Yes, the UPS is fully configurable at time of order.
- Q
- Does this UPS work with lithium ion batteries?
- A
- Yes, it works with all manufacturers of lithium ion batteries sold by Vertiv.
- Q
- Does this UPS come with a communications card?
- A
- Yes, we provide a standard LIFE Services card or you may choose an optional Unity dual simultaneous protocol card.
- Q
- Does this UPS offer Eco-mode?
- A
- Yes, it offers Vertiv's unique Eco-mode which maintains battery charging and inverter readiness.
- Q
- Can I change display and alarm values or does a service technician have to do it?
- A
- Yes, our standard touchscreen control panel is fully user configurable for type of information displayed, security access codes and warning & alarm parameters.
Related Products And Services

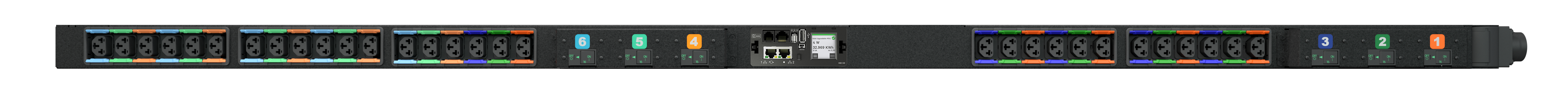

Switched Outlet Level Monitored Universal Rack Power Distribution Unit (UPDU) VP7UV0A0 is a 0U vertical with input and outlet level power monitoring and outlet level switching. It has 18 locking IEC C13 and 12 locking IEC C19 receptacles, a universal input, and a max power capacity of 22kW. The UPDU supports common AC power configurations ranging from 16A-63A and 120V-415V in single or three phase. Select the Facility Side Cable (FSC - sold separately) to define the input power configuration.
