Product Model

VP7UU0A0

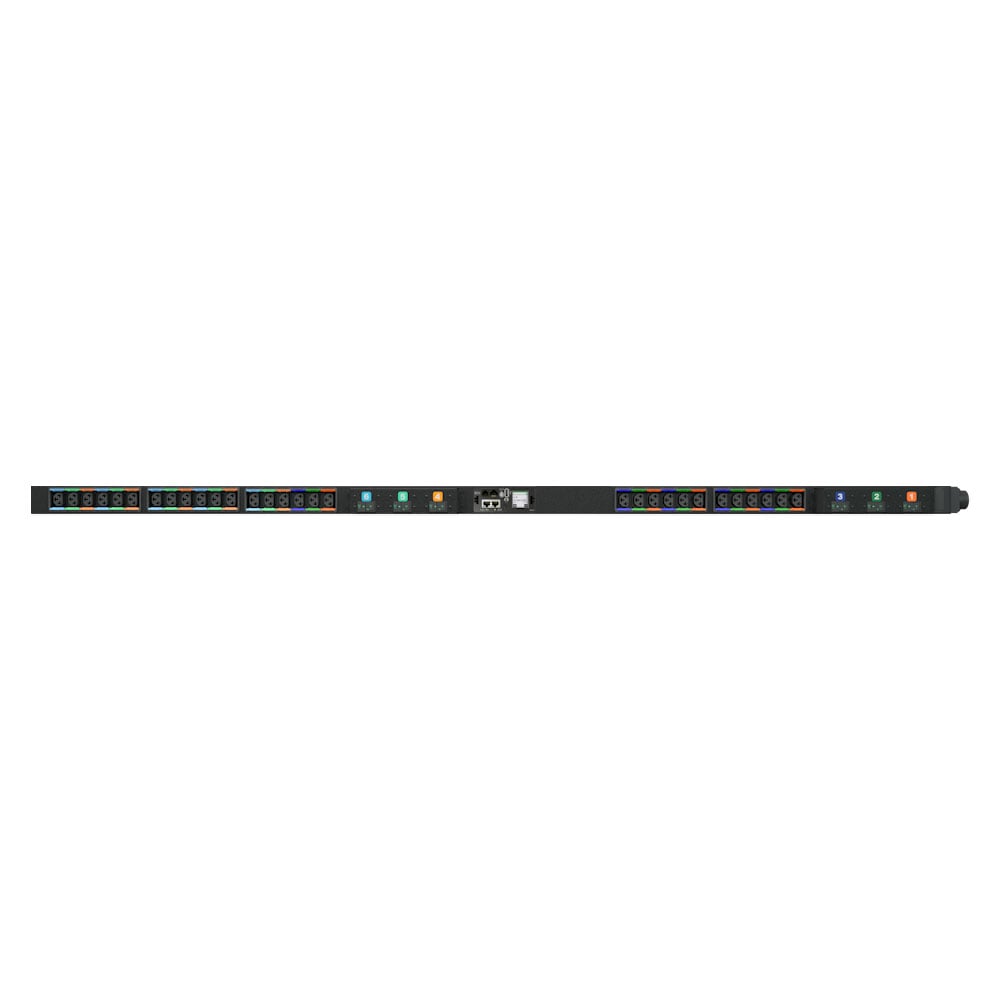

Switched Outlet Level Monitored Universal Rack Power Distribution Unit (UPDU) VP7UU0A0 is a 0U vertical with input and outlet level power monitoring and outlet level switching. It has 30 locking IEC C13 and 6 locking IEC C19 receptacles, a universal input, and a max power capacity of 11kW. The UPDU supports common AC power configurations ranging from 16A-48A and 120V-415V in single or three phase. Select the Facility Side Cable (FSC - sold separately) to define the input power configuration.

Get Brochure Get Manual

Best Suited For:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Power/Gas Transmission and Distribution

Warranty: Vertiv™ Geist™ UPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Product Model

VP7UU0A0

Get Brochure Get Manual

Best Suited For:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Power/Gas Transmission and Distribution

Warranty: Vertiv™ Geist™ UPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Benefits

The Universal Input enables users to utilize a single Universal PDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide.

Increase or decrease Universal PDU power capacity by changing the Facility Side Cable to adapt to fluctuating equipment power needs.

Reliable power distribution with local and remote power monitoring offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.

U-Lock receptacles secure power cords and avoid accidental disconnections.

Simplify circuit and phase balancing with color-coded receptacles.

Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.

Power sequencing time delays allow users to define the order in which to power up or down connected equipment to avoid circuit overload.

Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.

Monitor power consumption at the outlet-level for a detailed view of power distributed to specific equipment with the outlet level option.

Features

The universal power input can mate to any geographically specific Facility Side Cable and is designed to operate with variable power input configurations (defined by the connected cable).

The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing.

Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards).

VLC (Visible Light Communication).

Environmental monitoring with the addition of optional sensors.

High Temperature Grade 60°C for high temperature environments.

Color-coded U-Lock receptacles by circuit for instant identification on select units.

Simple and quick installation in all standard racks or cabinets with included mounting brackets.

TAA compliant.

The LCD touchscreen of the IMD-5M auto-orients for both vertical and horizontal units.

Enhanced with Secure Boot, the Hardware key and Firmware key must match to boot up.

When connected with another rPDU via a redundant power cable, the IMD-5M remains powered when the rPDU loses power.

Vertiv™ Geist™ UPDUs are available in 11kW and 22kW max power load capacities in both vertical and horizontal form factors with various receptacle combinations and monitoring options. To view the full list of available models visit the rPDU Finder.

Print Download Email

VP7UU0A0

Power Description

Frequency: 50/60Hz

Operational Conditions

Operating Temperature: 60C

Physical Characteristics

Weight: 27 lbs

Height: 72 in

Width: 2 in

Depth: 2.6 in
