Product Model

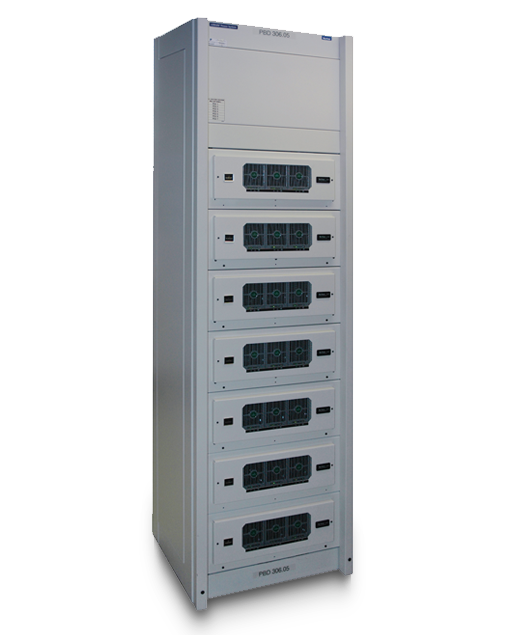

NetSure V200 Retrofit
Enables eSure rectifiers, NetSure rectifiers, and legacy PCUs to be used side-by-side in existing large power plants, improving system efficiency and permitting expansion.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Model
NetSure V200 Retrofit
Enables eSure rectifiers, NetSure rectifiers, and legacy PCUs to be used side-by-side in existing large power plants, improving system efficiency and permitting expansion.
Benefits
Extend the life of legacy systems and improve efficiency to save cost
Keep your plant up and running during installation and maintenance with hot swappable modules
Compatible with or without original rectifiers in same system
Features
Plugs into existing rectifier slots without any electrical or mechanical adjustments to existing shelf or system
NetSure reliability improves mean time between failure (MTBF)
Enhanced controller features including single point adjustment and remote access via Ethernet
Enables connection to remote monitoring via SNMP and web
Specifications
NetSure V200 Retrofit
- Input
- Input Voltage, Operational
- 260-530 VAC
- Output
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity
- 3 (3,500 W rectifiers)

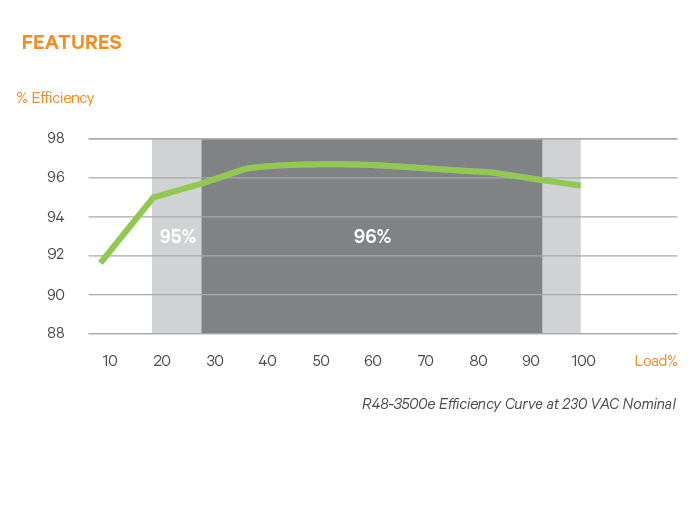

- Peak Efficiency
- 96%
- Environmetal & Standard Compliance
- Control and Monitoring
- MCA controller
- Operating Temperature
- 0 to +50 °C (operating), -40 to +167 °F (storage)
- Safety Compliance
- UL/EN/IEC 60950-2000 CE
- EMC Compliance
- Compliant
