Product Model

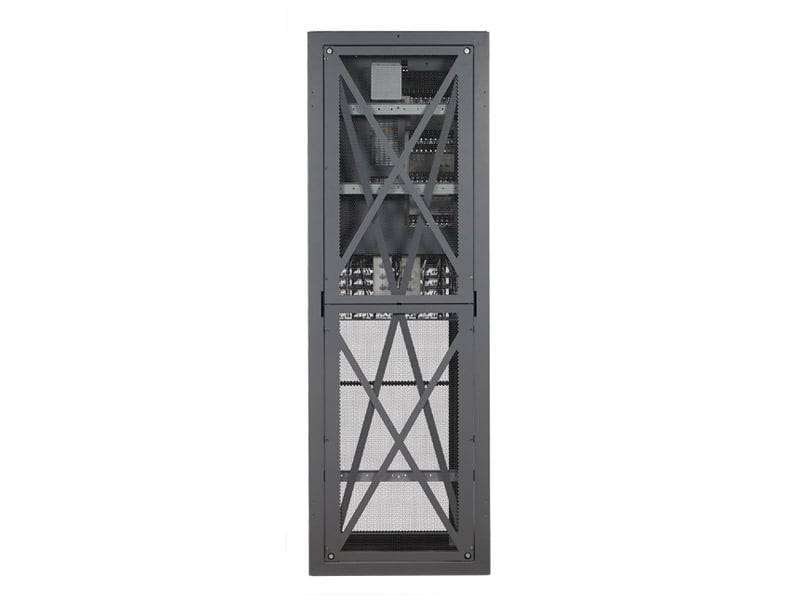

NetSure 7100 Series
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
- Government
Product Model
NetSure 7100 Series
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
- Government
Benefits
Optimized total cost of ownership
Safe and simple to install and operate
Enhanced real-time visibility into what's powering your network
Includes DHCP Ethernet connection and local access via an additional port with a default IP address
Meets strict agency standards for safety and reliability
Reduce energy cost with high-efficiency eSure rectifiers
Low initial investment with scalable configuration thatallows for incrementalsystem growth
High reliability with N+1 configuration redundancy
Features
Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management
Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
Dual Ethernet port option
Modular design with hot-swappable rectifiers and distribution units
High system efficiency over 96%
Multi-bay configurations
Multiple AC input configurations
NEBS Level 3 certified andUL Listed to UL subject 1801
Specifications
NetSure 7100 Series
- Input
- Input Voltage, Operational
- 176 VAC to 305/528 VAC
- Input Connections
- Terminal Blocks or Line Cords
- Equipment Dimensions (H x W x D)
- D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
- Access
- Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
- Output
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Weight
- 90.9 to 295.5 kg
- Height
- 2134 mm
- Width
- 584.2 to 711.2 mm
- Depth
- 510.5 to 711.2 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management
- Operating Temperature
- -40 °C to +40 °C (-40 °F to +104 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
Manuals
- IM60029556 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- Rectifier User Manual UM1R483500E3
- um02440103-sm-io2-user-manual
- IM60027905 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual.pdf
- IM559251 (Rev E).pdf
- UM1C48582000P3 eSure Power Extend Converter User Manual
- IM559252 NetSure Controller Ethernet Kit
- IM60028248 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028039 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028017 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
