Product Family

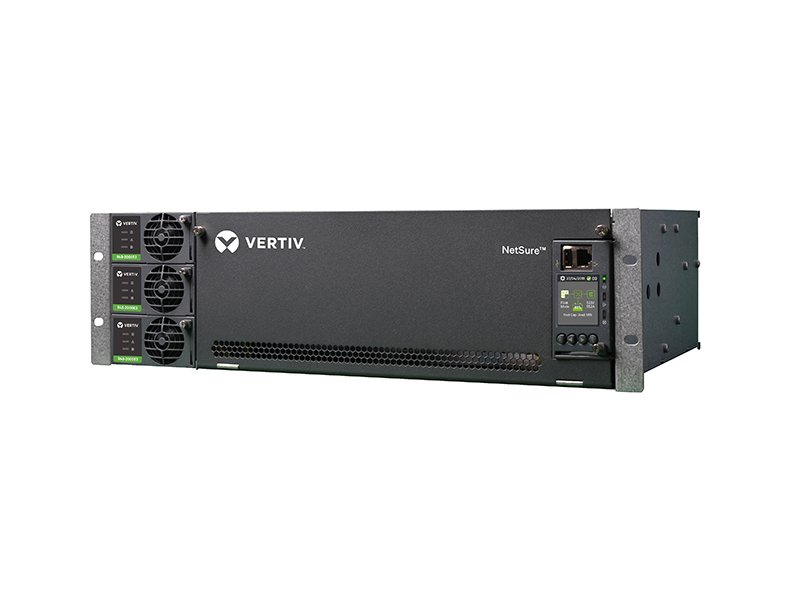

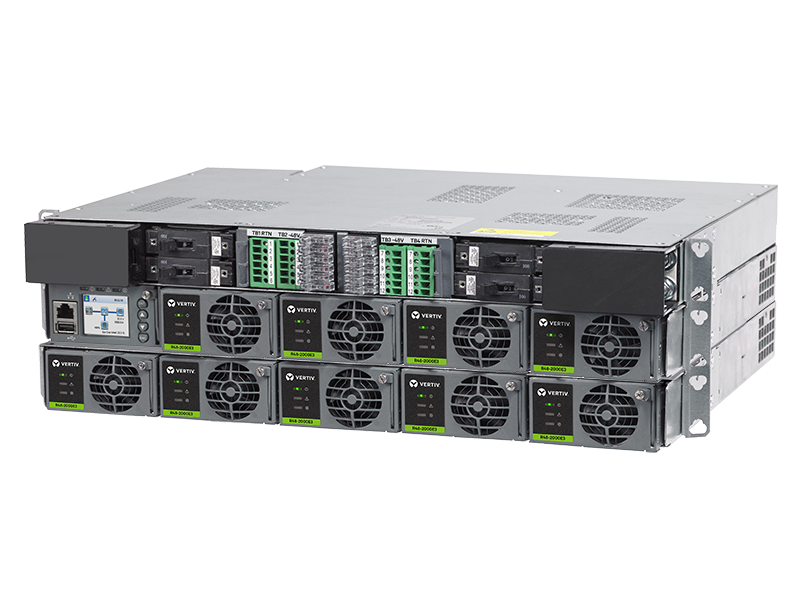

NetSure 5000 Series

Discretely power critical infrastructure at the edge of your network with optimized management, security, and control. This series of flexible DC power systems is designed for wireless access and fixed network applications offering unmatched temperature performance and high power density.

Get Brochure Get Manual
Best Suited For:
  • Telecom

Model Specifications Overview
Email
NetSure 5100 582137100
18-28.8kW / 1.5-19.2kW   40-600A / 50-400A   -48 VDC, +24 VDC, -58 VDC   Single phase: 120VAC, 208VAC to 240VAC   Standard system   8.75"   19" or 23"   23.04" with batteries   Up to 600 lbs.
NetSure 5100 582137200
2-7.2kW   40-150A   -48VDC   Single phase: 120VAC, 208VAC to 240VAC   Integrated system   Up to 5.25"   19" or 23"   14.7"   Up to 48 lbs.
NetSure 5100 58870530036
8kW   Up to 160A   -48VDC   120VAC, 208VAC, 240VAC   Bulk subrack   1 RU   19" or 23" rack   15"   25 lbs.

Benefits

Minimize total cost of ownership with high efficiency eSure rectifiers Reduce the need for specialized cooling with high temperature operation Deploy the power system where 120VAC is the only input option Keep your network power source secure with encrypted controller communication Extend the life of your batteries with the available battery management tools Achieve energy savings with ECO mode, even at low loads Have peace of mind with this UL and NEBS power system Minimize installation time and drive planned network conformity with custom configuration files Reduce your off-grid generator runtime with solar / hybrid input Optimize your battery capacity with priority and non priority load shedding Solar / hybrid capability – reduces grid dependency

Features

High efficiency – 96.2% efficient eSure rectifiers Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating) Selectable AC input - 120VAC, 208 to 240 VAC Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces Battery management capability ECO energy savings mode NEBS Level 3 compliance and UL Listed Custom configuration file capability Solar / hybrid capability Up to two disconnect levels (LVD)

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
